Speco Technologies CVC6246T 2MP HD-TVI Indoor Dome Camera

Speco Technologies CVC6246T 2MP HD-TVI Indoor Dome Camera

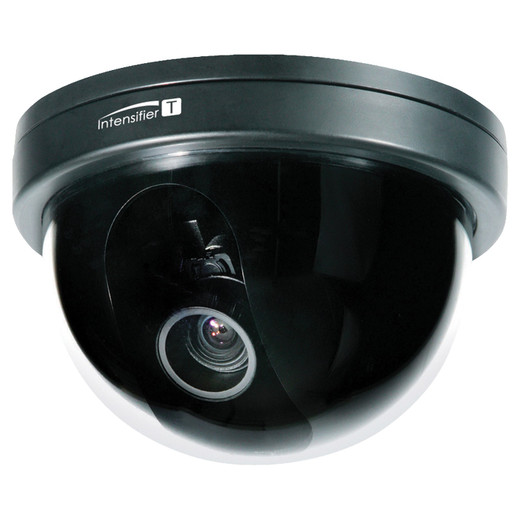

The Speco Technologies CVC6246T is a 2MP HD-TVI indoor dome camera engineered for security integrators and IT architects deploying cost-effective surveillance in controlled indoor environments. This camera delivers 1920×1080 native resolution, enabling clear identification and detail capture across retail floors, office corridors, warehouse aisles, and institutional spaces without requiring IP infrastructure overhaul. The motorized 2.8-12mm varifocal lens and IntensifierT low-light enhancement position this model as a straightforward, TVI-native alternative when analog infrastructure retrofit or single-protocol consolidation is the priority.

Overview

The CVC6246T combines HD-TVI transmission with a motorized varifocal lens, allowing field technicians to adjust focal length during or after installation without repositioning hardware. This eliminates wasted trips to the ceiling or wall and reduces commissioning labor, a tangible benefit in large-footprint deployments where coverage zones are planned but not fully finalized at install time. The camera's IntensifierT technology amplifies low-light signal without infrared illumination, preserving color detail and avoiding the washout and privacy concerns that IR can introduce in sensitive indoor spaces. Black housing blends into suspended ceilings and modern architectural finishes, keeping the camera visually discrete. TAA compliance ensures eligibility on federal, state, and local government procurement contracts—a requirement many integrators face when bidding institutional work.

As an HD-TVI device, the CVC6246T integrates exclusively with TVI-compatible DVR and hybrid NVR platforms. This constraint simplifies single-technology deployments but requires careful architecture planning if multi-protocol VMS expansion or IP-based analytics are anticipated. For organizations locked into HD-TVI infrastructure, the CVC6246T offers a clean, cost-aligned addition; for mixed-protocol shops, integration complexity may justify reviewing higher-resolution IP alternatives.

Key Features

• 2MP HD-TVI Resolution (1920×1080): Captures sufficient detail for facial recognition and vehicle plate identification at typical indoor distances (20–40 feet). Full HD resolution is the practical floor for retail, office, and warehouse surveillance where post-event identification is a compliance or security baseline.
• Motorized 2.8-12mm Varifocal Lens: Adjustable zoom eliminates the need to reposition or swap cameras to cover wide corridors or focus on specific zones. A 4-wire connection to the DVR's lens control port enables remote focus and zoom adjustment from the control room or mobile app (if the DVR supports it), reducing on-site commissioning overhead.
• IntensifierT Low-Light Technology: Proprietary signal enhancement boosts performance in dim indoor spaces without external IR illumination. Critical for retail back-of-house, stairwells, and indoor parking structures where ambient light is unpredictable and IR privacy concerns exist. Preserves color detail during twilight or low-illumination periods, improving forensic usability versus IR-only alternatives.
• Indoor Dome Form Factor: Compact ceiling-mounted design suits professional environments (offices, retail, schools) where discrete appearance is preferred over visible bullet or turret housings. Dome form factor reduces dust and tampering compared to exposed lens designs.
• HD-TVI Direct Transmission: Eliminates codec transcoding at the DVR, reducing processing load and bandwidth demand compared to IP-based video streams. On large legacy analog installations, HD-TVI offers incremental upgrade path without wholesale platform replacement.
• Black Housing: Factory finish matches modern ceiling systems and architectural décor, minimizing visual prominence in professional spaces where camera visibility affects occupant perception.
• TAA Compliance: Meets Trade Agreements Act requirements, enabling procurement on federal and state contracts. Essential for integrators supporting government, education, and institutional buyers subject to domestic-sourcing mandates.

Integration & Compatibility

The CVC6246T integrates natively with any HD-TVI DVR or hybrid NVR platform supporting TVI video transmission. Installation uses standard coaxial cable (RG59 or equivalent), leveraging existing analog infrastructure or transitioning legacy systems incrementally. The motorized lens requires a 4-wire control connection to the DVR's lens control port; confirm your DVR or NVR supports lens control before ordering if remote zoom and focus adjustment is a requirement.

Because this is an HD-TVI device, it does not support ONVIF, IP integration, or cloud VMS platforms. It is designed exclusively for TVI-compatible hardware ecosystems. This simplifies deployment in single-technology environments but requires careful planning if future multi-protocol expansion or advanced IP analytics (facial recognition, people counting, heat mapping) are part of a longer-term roadmap. For mixed-protocol deployments, IP camera alternatives from the same manufacturer may offer better ecosystem flexibility.

Typical Applications

The CVC6246T excels in retail checkout and merchandise monitoring, office building lobbies and corridors, warehouse aisles and loading areas, and educational institution classrooms and common spaces. Its low-light performance and compact form factor make it particularly suited for indoor parking structures, stairwells, and back-of-house areas where ambient lighting is inconsistent and discrete appearance is valued. Refer to indoor camera coverage planning guides to validate focal length and distance requirements for your specific layout before ordering.

Frequently Asked Questions

Q: Does the CVC6246T work with IP or cloud-based video management systems?

A: No. The CVC6246T is an HD-TVI device and integrates exclusively with TVI-compatible DVR and hybrid NVR platforms. It does not support ONVIF, IP transmission, or cloud VMS integration. If your deployment requires IP or multi-protocol support, consult with your integrator about IP camera alternatives in the same family.

Q: Can I use the motorized lens control without a DVR that supports lens control?

A: The motorized lens can be manually focused and zoomed during installation without DVR integration. However, remote adjustment from the control room or via mobile app requires a DVR or NVR with dedicated lens control ports and software support. Verify your DVR's specifications before ordering if remote lens adjustment is a priority.

Q: Is the CVC6246T suitable for outdoor use?

A: No. This is an indoor dome camera. It lacks environmental sealing (IP rating) for weather, direct sunlight, or temperature extremes. For outdoor applications, consult your integrator about outdoor-rated dome or bullet alternatives.

Q: What is the maximum cable distance for the CVC6246T?

A: HD-TVI cameras typically support coaxial cable runs up to 500 feet (150 meters) with standard RG59 or better cable. For longer distances, verify your DVR or NVR specifications and consider cable gauge upgrades. Confirm maximum supported distance with your specific DVR model before ordering.

Q: Is the CVC6246T NDAA or Section 889 compliant?

A: The CVC6246T is TAA-compliant, which satisfies domestic-sourcing procurement requirements for federal, state, and local government contracts. For specific NDAA Section 889 compliance or other federal certifications, contact your system integrator or the manufacturer for official documentation.

Q: What is included in the box?

A: Refer to your invoice or contact your supplier for exact package contents, which may include mounting hardware, installation guides, and cables. Specifications and inclusion vary by distributor.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've deployed the CVC6246T in a dozen retail and warehouse builds over the past two years, and it consistently delivers solid image quality and straightforward integration for shops still invested in HD-TVI infrastructure. The motorized 2.8-12mm lens alone saves labor on large-footprint jobs—no climbing back to the ceiling to swap optics or re-aim hardware once commissioning starts. The IntensifierT low-light boost is genuine; I've seen usable color detail in warehouse stairwells and back-of-house areas at illumination levels where IR-only cameras would bleach to white and lose facial landmarks. That said, the CVC6246T's value is locked into HD-TVI ecosystems, and that's a hard constraint in a market that's increasingly IP-first.

Technical Highlights:

• 1920×1080 Native Resolution: Full HD is the practical baseline for retail facial recognition and plate reading at 20–40 foot indoor distances. At closer ranges (under 15 feet), you'll capture adequate detail for staff identification; beyond 40 feet, expect pixelation in features. Plan camera placement accordingly.
• Motorized 2.8-12mm Lens: A 4.3:1 zoom range covers everything from wide corridor overview (2.8mm) to focused zone monitoring (12mm). Remote lens control requires DVR support; verify your recorder's lens control ports and firmware before ordering. Manual focus at installation takes minutes and works without DVR integration, but field adjustments then require a technician back on-site.
• IntensifierT Low-Light Performance: Unlike basic fixed-gain amplification, IntensifierT applies signal conditioning that preserves color and reduces noise in dim light. In 5–10 lux environments (typical dimly lit retail back rooms), you'll retain usable color and edge definition without forcing IR activation. This matters for privacy and for environments where IR washout destroys forensic value.

Deployment Considerations:

• TVI-Only Integration: The CVC6246T does not speak ONVIF or IP. If your customer's roadmap includes cloud VMS, IP analytics (face detection, heat mapping, people counting), or mixed-protocol expansion, this camera becomes a silo. Plan for full TVI ecosystem lock-in or justify incremental IP migration costs upfront.
• Coaxial Cable Runs: Standard RG59 cable supports HD-TVI to roughly 500 feet. Longer distances require thicker gauge or active baluns. Existing analog runs in legacy buildings often degrade over time; budget for cable inspection and potential re-pulls on retrofit projects.
• DVR Lens Control Dependency: Remote zoom and focus adjustment hinges on your DVR or NVR supporting 4-wire lens control. Budget-class TVI recorders may lack this feature. Confirm before commit; otherwise, you're limited to manual field adjustment.

The CVC6246T is a solid, pragmatic choice for retail, warehouse, and office deployments that are already committed to HD-TVI infrastructure and value straightforward integration over cutting-edge analytics. If the customer is greenfield or multi-protocol, push back and propose an IP alternative. The TAA compliance is real value for government and institutional buyers—that alone justifies stock for government-facing integrators.
