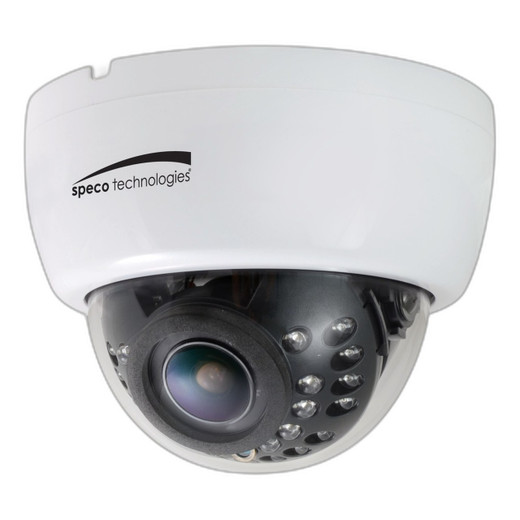

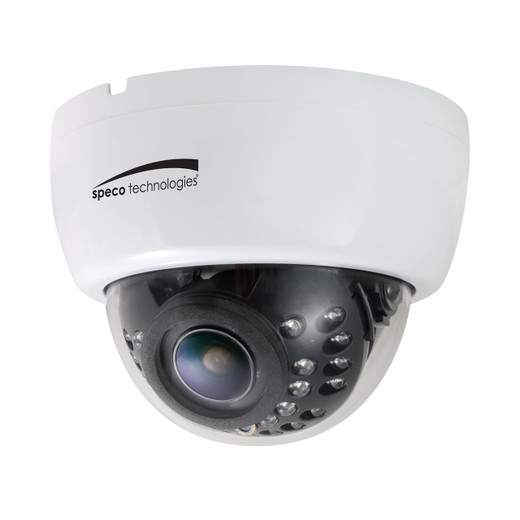

Speco Technologies CLED32DTW 2MP HD-TVI Indoor Dome Camera
Overview
The Speco Technologies CLED32DTW is a compact 2MP HD-TVI indoor dome camera designed for straightforward surveillance installations requiring reliable coaxial video transport. This model combines fixed resolution performance with variable focal length optics to accommodate standard and long-throw applications in controlled indoor environments. The CLED32DTW operates over existing analog infrastructure, delivering 1920 x 1080 resolution at 30 frames per second without network requirements, making it suitable for facilities that leverage installed coax runs or prefer non-IP camera architectures.
When this is the correct choice
Select the CLED32DTW when your deployment requires HD-TVI technology over coaxial cable, budget constraints favor analog-era infrastructure, or you need plug-and-play operation without network configuration. This camera is ideal for retrofit projects where coax is already in place, facilities seeking wall or ceiling mounting flexibility, and environments where a 65-foot infrared range satisfies coverage requirements. It is well-suited for small-to-medium retail spaces, office lobbies, stairwells, and interior hallways where IR illumination supplements ambient lighting.
When to choose a different model
If your facility requires IP-native deployment, advanced edge analytics, wide-dynamic-range imaging, or integration with modern network video management systems, consider IP camera alternatives. Do not select this model for outdoor installations or areas exposed to moisture, vandalism, or extreme temperature fluctuation beyond the rated 14°F to 122°F operating range. Facilities requiring higher resolution, PTZ capability, or storage-on-device should evaluate other product categories.
Optics and field of view
The CLED32DTW incorporates a 2.8-12mm auto iris varifocal lens, enabling focal length adjustment from wide to medium telephoto without physical lens replacement. This range accommodates both broader overview coverage and narrow corridor monitoring from a single camera. The auto iris mechanism responds to changing light levels, maintaining consistent exposure across day and night operation. The 3-axis design supports both wall and ceiling mounting, with mechanical adjustment for pan, tilt, and roll orientation during installation.
Imaging performance and low light
The 1/3-inch progressive scan CMOS sensor captures 1920 x 1080 native resolution (1984 × 1105 effective pixels) with a 50dB signal-to-noise ratio. In complete darkness, the camera activates its 24 infrared LEDs (850nm wavelength), delivering up to 65 feet of illuminated coverage depending on scene reflectivity. Minimum illumination is rated at 0 lux with IR enabled. The electronic shutter ranges from 1/30 second to 1/30,000 second, providing exposure control across daylight and low-light scenarios. Digital noise reduction (DNR) is available at low setting, and automatic white balance (ATW) maintains color accuracy in changing ambient light.
Analytics and edge capabilities
The CLED32DTW does not include onboard video analytics, deep learning, or motion detection. This is a sensor-to-recorder device; all event triggering and intelligent analysis must be performed by the connected recorder or external VMS platform.
Video encoding and streaming
Video output is analog HD-TVI over standard coaxial cable (BNC). An additional 960H analog output is provided for backward compatibility with legacy recorders or split-feed installations. No digital compression, streaming, or network transmission is native to this camera; encoding is handled by the receiving recorder.
Network and security
The CLED32DTW is not a networked device and does not support IP, ONVIF, or remote access protocols. All control and monitoring occur through coaxial plant and local VTC (Video Test Control) on-screen display menus.
Environmental and durability ratings
The camera is housed in high-impact ABS plastic, designed for indoor use. Operating temperature range is 14°F to 122°F (-10°C to 50°C). No IP rating or IK impact rating is specified; this model is not suitable for outdoor, wet, or high-vibration environments. The unit carries TAA compliance for U.S. federal procurement eligibility.
Power and installation notes
The CLED32DTW requires 12VDC operation and draws 300mA typical current during operation. No power supply is included in the package; integrators must source a separate 12VDC supply rated for 300mA minimum. The camera measures 4.4 inches in diameter and 3.4 inches in height, weighing 8 ounces, enabling compact mounting in tight spaces. The 3-axis mechanical design provides tilt and pan adjustment at the mount point; no motorized pan-tilt capability is provided.
What is included
- Main camera unit
- Mounting screws
- Test monitor lead
- DC power lead
- User manual
Optional accessory: PSW5 12VDC power supply (purchased separately).
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I evaluated the CLED32DTW during a retrofit project for a regional office building with existing coax infrastructure. This camera delivered straightforward plug-and-play operation without network configuration overhead. The 2.8-12mm lens flexibility and wall/ceiling mounting versatility streamlined deployment across multiple corridor locations. IR performance was sufficient for interior stairwell and lobby coverage without supplemental lighting.
Technical Highlights:
- HD-TVI over coax: Full 1080p resolution and 30 fps delivered directly over existing analog plant, eliminating the need for IP reconfiguration or converter hardware.
- Varifocal optics: 2.8-12mm auto iris lens accommodates both wide overview and corridor-specific framing without changing hardware.
- Low-light performance: 24 IR LEDs and 850nm wavelength provide 65 feet of usable illumination in total darkness, eliminating supplemental lighting costs in interior spaces.
- Compact form factor: 4.4-inch diameter and 8-ounce weight enable discrete mounting in confined ceiling plenums and corner installations.
Deployment Considerations:
- Verify 12VDC supply availability and rating before installation; the optional PSW5 supply simplifies power distribution but must be specified and ordered separately.
- Coax plant quality directly affects HD-TVI signal integrity; test cable runs with a quality TVI test monitor during commissioning to rule out impedance or shielding issues.
- The camera lacks onboard storage and analytics; recorder-side motion detection and event logging are mandatory for any investigation or audit trail requirement.
- Interior-only installation; do not deploy in wet, outdoor, or high-vibration environments that exceed the 14°F to 122°F operating specification.
The CLED32DTW remains a cost-effective choice for analog infrastructure refresh where capital budget and legacy coax plant justify HD-TVI deployment. It is not a suitable foundation for network-centric surveillance roadmaps or facilities planning IP migration. For that trajectory, IP dome or turret cameras should be evaluated instead.
