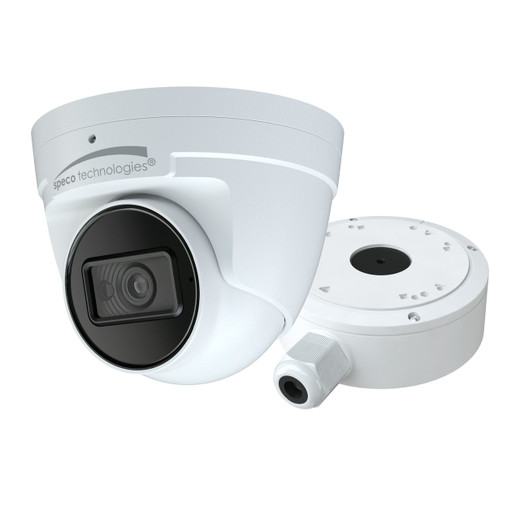

Speco Technologies V5T3 5MP HD-TVI Turret Camera
Overview
The Speco V5T3 is a fixed 5MP HD-TVI turret camera built for outdoor perimeter and facility monitoring where cost-effective, weatherproof coverage takes priority over network integration or PTZ capability. The camera captures 2592×1944 resolution at 20 fps using a 1/2.5" CMOS sensor, delivering sufficient detail for face identification and license plate recognition at moderate distances. The turret form factor mounts easily to walls or eaves, and the compact white powder-coated housing integrates visually into most building exteriors. Unlike IP cameras, the V5T3 operates as a pure analog device — video travels over standard coaxial cable to a TVI-compatible DVR or hybrid system, eliminating network configuration, firmware updates, and IP-layer attack surface.
Key Features
- 2.8mm fixed lens (wide field of view): Delivers consistent horizontal coverage for general area surveillance without motorized adjustments. Fixed optics mean fewer moving parts to maintain and predictable framing across the installation lifecycle.
- 5MP native resolution (2592×1944 @ 20 fps): Enough pixel density for readable faces and characters 25–35 feet away. 20 fps refresh ensures smooth motion capture without overburdening coax bandwidth or DVR storage.
- Day/Night with integrated IR illumination: Automatic switching between color mode and monochrome with built-in IR LEDs extends usable hours into complete darkness. No separate illuminator needed — reduces installation complexity and cost.
- Wide Dynamic Range (WDR) processing: Balances exposure in mixed-light scenes — for example, a parking lot with bright sunny patches and deep shadows. Prevents the camera from washing out highlights or crushing shadow detail, improving usability during dawn, dusk, and overcast conditions.
- IP67 environmental rating: Sealed against dust and water jets; suitable for rain, snow, hose-down, and direct weather exposure. Operating temperature range of −22°F to 122°F (−30°C to 50°C) supports year-round deployment in temperate climates. Do not use in extreme temperature environments or where full submersion is expected.
- PoE power (12VDC via integrated power): Operates on standard 12V DC supplied through the coaxial cable run via a separate power injector or DVR power output. Simplifies wiring in existing analog surveillance infrastructure — no separate 24V transformer or multi-conductor cable required.
- HD-TVI native encoding: Video compresses and transmits over coax as HD-TVI signal, not IP. This design eliminates network switches, IP addressing, and codec negotiation — particularly valuable if your facility already runs TVI-based recorders or if you're extending an analog system without replacing core infrastructure.
- Turret housing with 360° rotational adjustment: Allows pan without a motorized mechanism. Once aimed, the housing stays in position indefinitely — no gears, no servo loops, no failure points.
When This Camera Is the Right Choice
Deploy the V5T3 for outdoor perimeter monitoring, building exteriors, parking facilities, or general surveillance zones where fixed-angle coverage and analog coax infrastructure are already in place. It is especially suitable for integrators maintaining legacy HD-TVI ecosystems or facilities that lack network infrastructure on the exterior. The absence of network connectivity eliminates cybersecurity compliance overhead and firmware management — a real operational advantage in air-gapped or restricted-network environments.
When to Choose a Different Model
Do not select the V5T3 if your deployment requires pan-tilt-zoom capability, advanced motion analytics, ONVIF compliance, or IP network integration. Organizations needing edge-based detection (person, vehicle, loitering), cloud backup, or managed VMS platforms should evaluate IP camera alternatives. Very-low-light environments where 30m IR range is insufficient, or indoor deployments requiring PoE power without a separate 12V supply, call for a different approach. If your facility has migrated to IP-based recording, compatibility with an IP camera and NVR reduces cabling complexity and simplifies future analytics integration.
Integration and Compatibility
The V5T3 integrates with any TVI-compatible DVR, hybrid recorder, or video management system that accepts HD-TVI coaxial input. No ONVIF profile, no IP stream configuration, no firmware patches. Video analysis and event triggering occur downstream in the recorder software — the camera delivers raw TVI signal only. A network video recorder with TVI input capability is required; confirm your DVR supports HD-TVI before purchase.
Frequently Asked Questions
Q: Can the V5T3 work over IP or Ethernet?
A: No. The V5T3 is a pure analog HD-TVI device. Video travels over standard RG-59 or RG-6 coaxial cable to a TVI-compatible DVR or hybrid recorder. It does not support network streaming or ONVIF.
Q: What is the maximum distance for the IR illumination?
A: The V5T3 integrates IR LEDs suitable for illumination out to approximately 30 meters (100 feet) in complete darkness. Distance depends on target reflectivity and lens field of view.
Q: Is the lens interchangeable or adjustable?
A: No. The V5T3 features a fixed 2.8mm lens. The turret housing allows rotational aiming, but the focal length cannot be changed. If your coverage area requires a different field of view, you must select a different camera model.
Q: What power supply do I need?
A: The V5T3 runs on 12VDC supplied through the coaxial cable. Your DVR, a separate PoE injector, or a 12V power supply with a coax adapter provides the DC voltage. Confirm your DVR power output or power supply has adequate current capacity (typically 1–2 amps per camera).
Q: Can the V5T3 be mounted indoors?
A: Yes, technically yes — the turret form factor and white finish suit ceiling or wall mounting indoors. However, the IP67 rating and integrated IR are optimized for outdoor use. For indoor surveillance, consider an indoor-focused turret or dome camera that may offer lower power consumption or aesthetic fit.
Q: Does the V5T3 require any firmware updates or software licensing?
A: No. The V5T3 is a fixed-function analog device. No firmware, no software subscriptions, no cloud services. Video capture and output occur independently of any connected recorder or VMS.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The V5T3 is a straightforward choice if you're running analog TVI infrastructure and your facility can live with fixed-angle 5MP coverage and 30m IR range. The absence of network connectivity is either a feature or a liability depending on your environment — no IP complexity means no firmware patching, no ONVIF negotiation, no network attack surface; conversely, you forfeit edge analytics, remote viewing over network, and cloud backup. The camera's real strength lies in cost-efficiency and coax-centric deployments where you already own the DVR and cabling.
Technical Highlights:
- 1/2.5" CMOS sensor at 2592×1944 (20 fps): Delivers usable detail for faces and license plates within 25–35 feet. 20 fps is sufficient for smooth motion in typical parking-lot and building-exterior scenarios; don't expect cinematic fluidity, but adequate for recognition and event correlation.
- WDR (Wide Dynamic Range): Significantly improves usability during backlit conditions — dawn, dusk, mixed sun and shadow. Without WDR, a camera would either blow out the sunny portion or crush shadow detail; WDR holds both. Matters more in outdoor deployments than in controlled indoor environments.
- IP67 + −30°C to +50°C operating range: Rain, snow, hose-down, and temperature swings won't degrade the housing or optics. The turret design naturally sheds water. Not suitable for extreme cold (−40°C setups) or high-temperature industrial environments, but fine for most temperate-to-warm outdoor deployments.
Deployment Considerations:
- Coax distance limitation: Analog HD-TVI over coax exhibits signal loss beyond 300–500 meters (depending on cable quality and impedance matching). If your DVR is more than 500 feet away, budget for a distribution amplifier or shorter runs with intermediate baluns. This is a real gotcha when retrofitting long exterior runs.
- No motion analytics or metadata: All event detection and alarm logic happens in the DVR or VMS tier. The V5T3 itself has no intelligence — if you need person detection, vehicle counting, loitering alerts, or line-crossing triggers, those features must be implemented in downstream software. Adds licensing cost and computational load on the recorder.
- Fixed lens means careful deployment planning: Once installed, if the 2.8mm horizontal field of view doesn't match your coverage intent, you'll need to remount the camera or choose a different model. Test coverage before finalizing mounting.
Position the V5T3 for outdoor perimeter and building-facade monitoring in facilities that maintain analog TVI DVRs and lack plans for IP migration. It is not a placeholder for future analytics or cloud integration — it is a terminal, low-cost surveillance point. Use it where durability, simplicity, and coax-based infrastructure trump feature richness.
