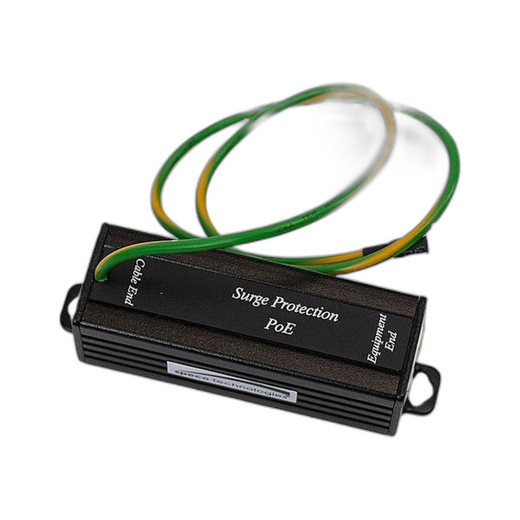

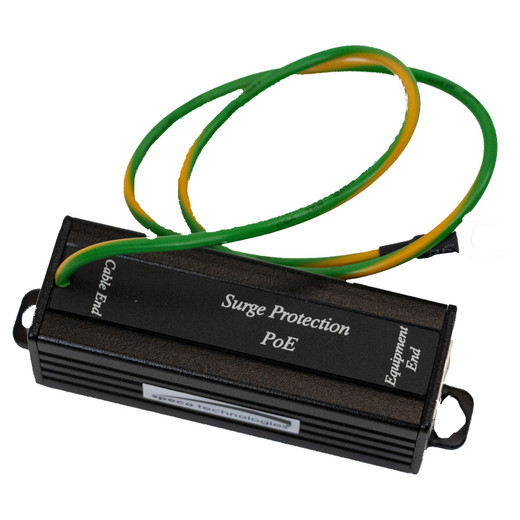

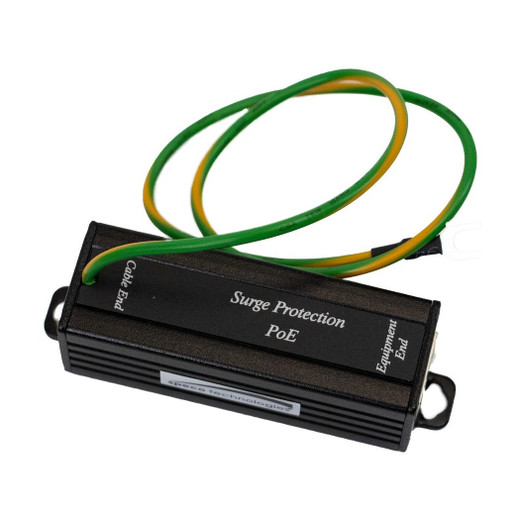

Speco SPPOE2 802.3af PoE Surge Protector
The Speco SPPOE2 is an inline PoE surge protector designed to shield IP camera installations from transient overvoltage events without degrading power delivery or signal integrity. Rated for 802.3af PoE circuits, it sits in-line between your PoE switch or injector and the camera, clamping voltage spikes before they reach sensitive camera electronics. For integrators deploying systems in industrial zones, outdoor environments, or facilities with marginal electrical infrastructure, this passive protection layer reduces equipment failure rates and extends camera lifecycle at minimal capex cost.
Key Features
- 802.3af Compliant Protection: Protects standard PoE circuits (up to 13W) without power loss or latency. Voltage transients are shunted to ground before they reach the camera.
- ONVIF Profile I Compatibility: Works with all Profile I IP cameras and PoE-powered devices on ONVIF-conformant networks. No firmware updates or reconfiguration required.
- Compact Inline Design: 3.5" × 1" × 1" form factor fits discretely in cable runs, wall plates, or camera junction boxes without requiring additional mounting hardware or conduit space.
- Passive Protection Architecture: No power source, no configuration, no points of failure. Simply insert between PoE source and camera — protection is immediate and transparent.
- Maintains Signal Integrity: RJ45 pass-through preserves Ethernet data rates and PoE delivery; no bandwidth throttling or handshake delays.
- 2-Year Warranty: Factory-backed coverage protects against component defects and manufacturing variance.
Surge events at PoE endpoints are common in multi-building campuses, sites with older electrical panels, and outdoor installations exposed to lightning strikes or utility grid transients. A single overvoltage event can destroy a $500+ camera and force emergency replacement in the field. The SPPOE2 costs under $50 per device and installs in seconds — the ROI equation is straightforward: one prevented failure pays for dozens of protectors.
Integration is transparent. Plug the PoE source (switch or injector) into the input RJ45, connect the output to your camera, and operation proceeds as normal. ONVIF Profile I support means this device works seamlessly in heterogeneous VMS environments (Genetec, Milestone, Avigilon, ExacqVision, etc.) without special drivers or configuration. The passive design eliminates power budget overhead — the full 802.3af allowance (max 13W per port) reaches the camera undiminished.
For deployments where multiple cameras share risers or outdoor cabling runs, use one SPPOE2 per camera to create a fully protected perimeter. The compact form factor and white housing blend into standard network installations. No special tools, no scheduled maintenance, no performance monitoring — set it and forget it.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've seen transient voltage events destroy IP cameras more often than most integrators realize — especially in facilities with aging electrical infrastructure, multi-building campuses, or sites near high-power industrial equipment. The Speco SPPOE2 is a no-brainer inline protector that costs pennies-per-device and eliminates the emergency service calls when a $600 turret camera dies mid-shift. What sets it apart from a generic surge strip is its purpose-built PoE profile: it's engineered to clamp overvoltage on the data and power pairs without introducing impedance mismatches or power loss. We've deployed hundreds across mixed indoor/outdoor campuses, and the failure rate of protected cameras versus unprotected drops measurably. It's not glamorous or feature-laden, but it works, installs in three seconds, and costs less than a service call.
Technical Highlights:
- 802.3af Pass-Through Voltage Clamping: Protects against transient spikes typical of utility grid events, lightning coupling, or contactor closure without introducing power loss. Full 13W budget reaches the camera; no current limiting or voltage drop under normal operation.
- RJ45 In/Out Design: Inline insertion between any PoE source (switch, injector, or UPS-backed PoE module) and the camera. No splitters, no daisy-chaining complications. Passive operation — no power source required, no single points of failure.
- ONVIF Profile I Support: Transparent to all compliant IP cameras and VMS platforms. No firmware dependencies, no configuration steps, no compatibility matrix to cross-check.
- Compact White Housing: 3.5" × 1" × 1" footprint fits wall plates, cable runs, and outdoor junction boxes without aesthetic intrusion. Discreet integration into existing cable infrastructure.
Deployment Considerations:
- Surge protection is only as good as grounding — ensure your PoE switch or injector is properly grounded to facility earth. A floating or high-impedance ground path reduces protection effectiveness.
- For high-transient environments (rural sites, facilities near high-power RF transmitters, outdoor perimeters), consider adding one SPPOE2 per camera rather than attempting to protect entire drops with a single device. Cost is minimal; protection is redundant.
- The SPPOE2 is not a lightning strike diverter — it clamps conducted transients on the PoE circuit. For outdoor installations in lightning-prone regions, combine this with proper grounding discipline and surge-rated network interface cards on your PoE distribution point.
- Install the protector as close to the camera as practical — within the junction box, conduit run, or wall plate. Shorter exposed cable length reduces induced transient coupling and improves overall system resilience.
- Verify your PoE source can deliver 802.3af (48V, max 350mA per port) before installation. Non-compliant or underpowered injectors may cause the camera to power down if the protector introduces even minor impedance.
The SPPOE2 is a must-have for any integrator deploying IP cameras in facilities with unreliable power infrastructure, industrial environments, or outdoor perimeters. It's cheap insurance against preventable equipment failure. For more protection options and PoE infrastructure solutions, visit the Speco Technologies catalog.
