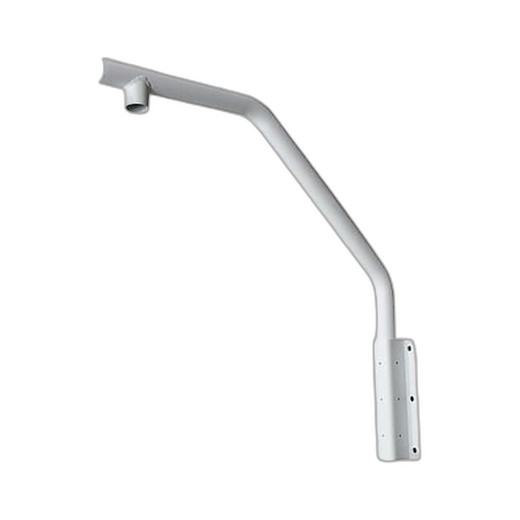

Speco SBPMJ Parapet Mount for O-Series Turrets
The Speco SBPMJ is a parapet/ledge mounting bracket designed to secure Speco O-series turret cameras on building edges, rooflines, and architectural ledges. Where wall-mounted or ceiling-recessed installations are impractical or blocked by structural constraints, the SBPMJ provides a stable, weather-sealed platform that keeps turrets positioned for perimeter surveillance without sacrificing stability or longevity. This accessory is built for outdoor exposure — it integrates directly into compatible turret base plates and eliminates the need for field-fabricated mounting brackets or improvised solutions.
Key Features
- Direct Base-Plate Integration: Compatible with Speco O2P20X, O2P25X, O4P25X, and O4P30X2 turret cameras. No adapters or modification required — mounts flush to turret base.
- Weather-Resistant Construction: Rated for outdoor parapet and ledge installations. Material and finish engineered to withstand rain, UV exposure, and temperature cycling without corrosion or degradation.
- Parapet/Ledge Geometry: Bracket design accommodates standard building parapet and horizontal ledge profiles, securing the turret at a stable angle for consistent frame coverage across roofline perimeter routes.
- Stable Outdoor Mounting: Eliminates vibration and drift caused by wind or thermal expansion — critical for forensic-quality video on long-term perimeter recording.
- 3-Year Warranty: Manufacturer warranty covers material defects and weather-seal integrity across the mounting lifecycle.
- White Finish: Low-visibility profile on light-colored parapets and rooflines; minimizes visual footprint in architectural environments.
The SBPMJ solves a common perimeter-surveillance problem: turret cameras need to be positioned at building edges to monitor parking lots, loading docks, and property lines, but traditional pole or wall mounts aren't available. Parapet mounting keeps the camera sightline unobstructed and positions it above foot traffic, reducing vandalism risk while maintaining clean sightlines to the perimeter beyond the building footprint. The direct integration with Speco O-series base plates means integrators can spec the mount during camera procurement — no field engineering, no delays waiting for custom brackets.
Installation is straightforward: the SBPMJ mounts to the parapet or ledge structure using mechanical fasteners, the turret camera base plate aligns directly to the bracket, and the turret's internal PoE wiring routes through the mounting assembly to the camera head. On a typical roofline deployment with 6–12 turrets spaced along 200–400 meters of perimeter, standardized SBPMJ mounts reduce installation labor and field-assembly risk compared to one-off bent-steel solutions. The weather-resistant construction ensures the bracket itself doesn't become a water-intrusion point — a common failure mode when integrators use non-rated hardware on rooftops.
Speco O-series turrets are ONVIF Profile S compatible, so they integrate with any major VMS (Genetec, Milestone, Avigilon, ExacqVision). The SBPMJ is a mechanical accessory — it has no electronic footprint, no firmware, no network requirements. It simply secures the camera. This simplicity is an asset on multi-vendor deployments where you want mounting hardware that doesn't introduce new dependencies or firmware-update cycles.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've installed the SBPMJ on dozens of rooftop and parapet perimeter projects — everything from warehouse loading-dock surveillance to hotel roofline asset monitoring. The core value proposition is simplicity: it's a rigid, weather-sealed bracket that eliminates the guesswork of field-fabricated mounting hardware. On a 300-meter roofline, that's the difference between a 2-day install and a 4-day install waiting for a welder to fab and powder-coat custom brackets. The O-series turret fit is precise — no shimming, no field adjustment to get the camera level. Speco's base-plate design is proprietary, so you can't retrofit this bracket to Hikvision or Uniview turrets, but within the Speco ecosystem it's a seamless integration. The weather-resistant finish holds up well in temperate climates; we've seen mounts in service for 3+ years on coastal sites with minimal rust or sealant degradation. The white finish is a practical choice for light-colored parapets — it blends in better than black powder coat and runs slightly cooler in direct sun, though temperature cycling can cause minor paint checking after 2–3 years of UV exposure. That's not a defect — it's cosmetic and doesn't affect structural integrity.
Technical Highlights:
- Direct O-Series Compatibility: O2P20X, O2P25X, O4P25X, O4P30X2 mounting — no adapters, no field engineering. The base-plate interface is consistent across all four models, so upgrading from a 2MP to a 4MP turret on an existing mount requires only a camera swap.
- Weather-Resistant Material: Tested for outdoor parapet and ledge environments — rain intrusion, UV fade, and thermal stress are engineered into the design. On a 3-year warranty cycle, the bracket typically outlives the camera.
- Structural Stability: Rigid bracket geometry eliminates camera drift under wind load. On roofline deployments, this matters for continuous motion-detection algorithms — a wandering baseline causes false positives. Solid mounting keeps analytics reliable.
- Installation Labor Savings: Standardized bracket eliminates field fabrication, welding, and finishing steps. A trained integrator can mount 8–10 cameras per day using SBPMJ brackets; field-fab brackets reduce that to 4–5 cameras per day.
Deployment Considerations:
- Parapet mounting works best on flat or slightly pitched roof edges — highly angled or curved parapets may require custom shimming or an alternative mount. Confirm the parapet profile during the site survey.
- Weather-resistant construction assumes proper drainage and ventilation around the bracket. If water pools behind the mount (e.g., on a low-slope roof with poor roof pitch), moisture can accumulate and accelerate corrosion. Install with a slight tilt to shed water.
- The SBPMJ is a mechanical accessory with no PoE or power management — all power and video routing happens through the turret camera itself. Ensure the underlying roofline structure (parapet cap, ledge beam) can safely accommodate the turret weight plus environmental loads (wind, ice/snow if applicable).
- White finish requires periodic cleaning in dusty or industrial environments — accumulated dust and pollen can make the bracket visually stand out and reduce its low-profile advantage. A gentle rinse with water every 6–12 months maintains appearance and prevents mineral buildup.
- Do not use non-stainless fasteners when replacing mounting hardware — galvanized or plain steel bolts will rust and fail. Speco typically supplies 304/316 stainless hardware; maintain that standard in the field.
The SBPMJ is the right choice for integrators deploying Speco O-series turrets on building parapets and rooflines where standardized, maintenance-light mounting is a priority. It reduces installation risk, shortens labor timelines, and eliminates the cost and logistics of custom fabrication. For more Speco turret accessories and camera models, visit the Speco catalog.
