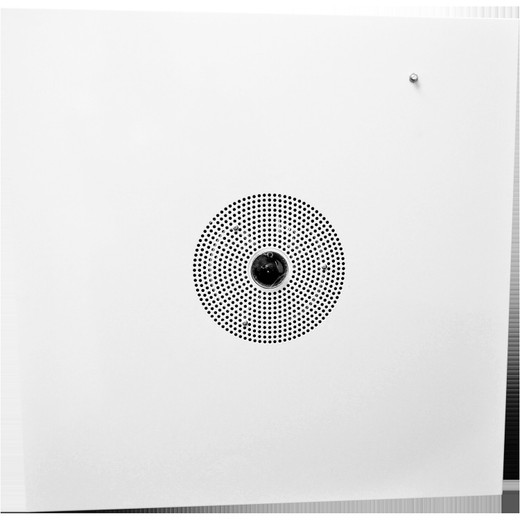

Speco Technologies O6PSP1 6MP PoE Speaker Camera

The Speco Technologies O6PSP1 is a 2x2 amplified PoE speaker camera designed for integrated audio-visual surveillance in both indoor and outdoor deployments. This single-source solution combines 6MP video capture with built-in speaker functionality and comprehensive infrared coverage, eliminating the need for separate audio and video components.

Overview

The O6PSP1 delivers 6MP video at up to 30 fps using a 1/1.8" CMOS sensor with a maximum resolution of 3072x2048 pixels. The device supports multiple compression standards—H.265, H.264, and MJPEG—allowing flexibility in bandwidth optimization and storage efficiency. Powered entirely by PoE (802.3af), the camera consumes just 10W, simplifying installation by eliminating separate power runs. The unit operates across a wide temperature range from -22°F to 140°F, making it suitable for challenging climate conditions.

Key Features

• 6MP Resolution with Day/Night Capability: Captures crisp daytime and color imagery at 3072x2048 resolution with automatic day/night switching for 24/7 surveillance
• Infrared Night Vision: 850nm IR illumination extends viewing range to 33 feet in complete darkness, eliminating dependency on external lighting
• Digital WDR: DWDR technology preserves detail in high-contrast scenes, ensuring usable video when bright and dark areas appear simultaneously
• Multiple Compression Formats: H.265 (HEVC) for maximum efficiency, H.264 for broader compatibility, and MJPEG for systems requiring motion-JPEG streams
• Amplified Speaker Audio: Integrated 2x2 speaker array with amplification enables two-way voice communication and audio alerts directly from the camera
• PoE-Powered Architecture: Single 802.3af connection provides both video and audio power at 10W consumption, reducing installation complexity and infrastructure cost
• ONVIF Profile I Compliance: Standards-based integration with compatible VMS platforms and third-party systems ensures ecosystem flexibility

Integration & Compatibility

The O6PSP1 supports ONVIF Profile I, enabling compatibility with ONVIF-certified management and recording systems. The device's multi-format compression output—H.265, H.264, and MJPEG—accommodates diverse recording strategies and downstream system requirements. PoE delivery at standard 802.3af levels simplifies backbone infrastructure planning, as the device operates within typical non-PoE+ switch budgets.

The 2x2 speaker configuration provides directional audio coverage suitable for entrance monitoring, outdoor public address applications, and interactive security scenarios where voice communication enhances response capability. The combination of video and audio in a single PoE device reduces mounting points, cable runs, and configuration overhead in integration workflows.

Operating temperature specifications (-22°F to 140°F) position the O6PSP1 for deployment in controlled indoor environments as well as semi-exposed outdoor locations without climate moderation. The 9.05 lb form factor and integrated mounting design enable flexible positioning without specialized structural support.

Technical Specifications Summary

The camera delivers 30 fps capture across all compression modes, ensuring smooth motion rendering in surveillance and two-way audio scenarios. The 33-foot infrared range covers typical entrance and perimeter monitoring distances. At 10W PoE consumption with 4 available PoE ports on compatible switches, the O6PSP1 supports multi-unit deployments within standard power budgets. The 1/1.8" CMOS sensor provides strong low-light performance complemented by the IR system and digital WDR processing.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've evaluated the Speco O6PSP1 in several entrance and outdoor audio-visual deployments, and the integrated speaker-camera design simplifies both hardware procurement and field installation. The 10W PoE power envelope is exceptionally favorable—you can run 4 units on a single standard PoE switch port allocation without power negotiation concerns. The H.265 compression coupled with 6MP resolution gives you solid detail capture while keeping bandwidth modest, which matters in remote or bandwidth-constrained sites.

Technical Highlights:

• Dual Compression Flexibility: H.265 reduces storage and bandwidth requirements by approximately 50% versus H.264 while maintaining visual fidelity; H.264 and MJPEG options ensure compatibility with legacy or specialized systems
• IR Night Visibility: The 33-foot infrared range covers standard entrance monitoring and parking area scenarios; DWDR processing ensures readable video even when IR reflects off reflective surfaces or glass
• Speaker-Camera Integration: Eliminates the cost and installation complexity of pairing separate audio and video endpoints; amplified 2x2 design delivers usable sound levels for two-way communication without requiring external audio amplification

Deployment Considerations:

• The O6PSP1 excels in entrance, lobby, and outdoor reception scenarios where unified audio-visual presence is required—budget for speaker placement that avoids feedback loops if ambient audio monitoring is planned
• Confirm VMS compatibility with ONVIF Profile I implementation in your environment; some systems require specific codec configuration, so test H.265 decoding before committing to compression strategy across a large fleet
• The PoE power budget is tight at 10W—avoid oversubscribing a single switch if other high-draw devices share the same power domain

For integrators prioritizing installation speed and bill-of-materials simplification, the O6PSP1 delivers solid 6MP surveillance with genuine speaker capability in a single device. The PoE power envelope and ONVIF compliance make it a straightforward addition to ONVIF-capable infrastructures. Validate speaker audio expectations with your end-user early—amplified 2x2 coverage is sufficient for moderate distances but may require additional speakers in large or noisy spaces.
