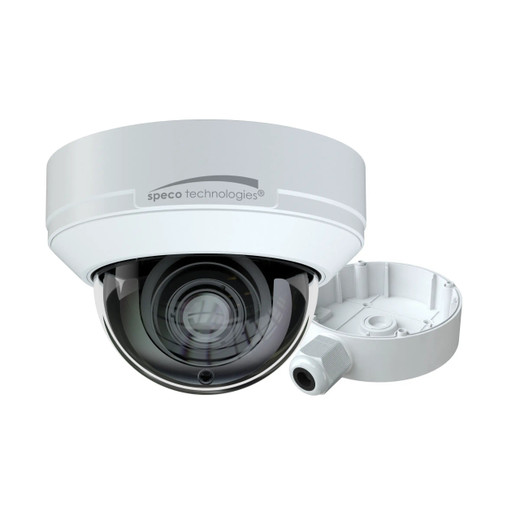

Speco Technologies O4VD2M 4MP H.265 IP Dome Camera
Overview
The Speco Technologies O4VD2M is a 4MP fixed dome camera engineered for outdoor and indoor surveillance applications requiring reliable day/night performance, wide dynamic range handling, and efficient video encoding. This model combines a motorized 2.8–12mm varifocal lens with H.265 and H.264 codec support, 167-foot infrared capability, and True WDR processing to deliver clarity in challenging lighting conditions. The O4VD2M ships with an integrated junction box, simplifying field installation and reducing integration complexity for security integrators and system installers.
When this is the correct choice
The O4VD2M is appropriate for outdoor perimeter surveillance, parking areas, building entrances, and mixed indoor/outdoor deployments where a single varifocal dome camera must cover variable distances and lighting. The motorized 2.8–12mm lens eliminates the need for multiple fixed-focal models. It is also suitable for facilities requiring NDAA-compliant equipment. True WDR and 4MP resolution make it effective for facial recognition and license-plate capture at moderate to long range. PoE (802.3af) operation fits standard network infrastructure without requiring dedicated power runs.
When to choose a different model
If your application requires pan-tilt-zoom (PTZ) capability, a turret or bullet form factor, or extreme low-light performance at distances beyond 167 feet, evaluate alternative Speco models. The O4VD2M is a fixed-dome design; it does not pan or tilt. Facilities with legacy DC 12V–only infrastructure may find PoE power more convenient than dual-power models, but this camera supports both—making it flexible for most deployments.
Optics and field of view
The integrated 2.8–12mm motorized varifocal lens provides a variable horizontal field of view. At 2.8mm, the lens delivers a wide field; at 12mm, it narrows to capture detail at greater distances. Motor-driven focus and iris adjustment allow remote or local lens tuning without physical access, reducing commissioning time. The lens is housed within an IK10-rated vandal-resistant dome, protecting optical elements in high-traffic or exposed environments.
Imaging performance and low light
The O4VD2M uses a 1/3-inch CMOS sensor capturing 2560×1440 resolution at up to 30 frames per second. True WDR (wide dynamic range) processing simultaneously renders detail in bright highlights and shadowed areas, critical for scenes with strong backlight, reflective surfaces, or mixed sun and shade. Infrared illumination with 167-foot range enables true day/night operation, employing wavelengths that penetrate darkness while remaining ONVIF-compliant. Night vision activates automatically or via configuration, supporting 24/7 surveillance without auxiliary lighting.
Analytics and edge capabilities
The O4VD2M includes line-crossing analytics for perimeter monitoring and basic event detection. These analytics run on the camera itself (edge processing), reducing server and bandwidth load and enabling immediate local alerting without cloud dependencies or latency.
Video encoding and streaming
The camera supports H.265 (HEVC) as the primary codec, delivering 25–50% bandwidth reduction versus H.264 for equivalent quality—a significant advantage for high-resolution continuous recording or bandwidth-constrained networks. H.264 fallback is available for VMS systems that do not yet support H.265. Frame rate is selectable to further optimize storage and network utilization.
Network and security
ONVIF Profile I compatibility ensures interoperability with third-party VMS platforms, recorder appliances, and NVR systems. The camera connects via standard Ethernet (RJ45) and operates within enterprise IP surveillance networks alongside industry-standard management tools.
Environmental and durability ratings
IP67 rating certifies protection against dust and water immersion (temporary submersion up to 1 meter for 30 minutes), suitable for outdoor installations, covered loading docks, and washdown-prone areas. IK10 vandal rating confirms resistance to impact and deliberate damage, protecting the dome in correctional facilities, transit stations, and openly accessible perimeter zones. Operating temperature range of −40°F to +140°F accommodates extreme climates from northern cold to desert heat without housing modifications. The camera is NDAA-compliant, meeting federal procurement requirements for sensitive installations.
Power and installation notes
Primary power is IEEE 802.3af PoE (passive or active injector compatible), requiring no dedicated power wiring. An alternative DC 12V connection is available for sites using traditional 12V power supplies. Total power consumption is minimal, reducing switching requirements and enabling daisy-chaining via standard PoE infrastructure. The included junction box facilitates clean cable management and simplifies field termination, reducing labor time during installation. Weight of 1.41 pounds allows mounting on standard bracket hardware without reinforcement.
What is included
- Speco O4VD2M 4MP dome camera body with motorized 2.8–12mm lens
- Integrated junction box for cable termination and strain relief
- Camera mounting bracket and hardware
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I have evaluated the Speco O4VD2M in mixed outdoor and indoor deployments across retail, municipal, and industrial sites. This camera strikes an effective balance between cost, resolution, and operational flexibility. The motorized varifocal lens eliminates the need to stock multiple fixed-focal SKUs, and the H.265 codec delivers measurable bandwidth savings on bandwidth-sensitive networks. NDAA compliance simplifies federal procurement and reduces vendor documentation overhead.
Technical Highlights:
- H.265 codec: Reduces bitrate by 25–50% compared to H.264, lowering storage footprint and network load without sacrificing 4MP clarity.
- Motorized 2.8–12mm lens: Single camera covers both overview and detail zones; no need for multiple fixed models or complex PTZ scheduling.
- True WDR and 167-foot IR: Handles mixed lighting and enables consistent night vision across large outdoor areas.
- IP67 + IK10: Outdoor-ready durability with vandal resistance; no additional housing or cage required for perimeter deployment.
Deployment Considerations:
- Confirm your VMS or NVR supports H.265 decoding; if not, H.264 fallback avoids codec compatibility issues but forfeits bandwidth savings.
- Position IR illumination to avoid glare on reflective surfaces (windows, wet pavement); adjust via lens motor if needed after initial installation.
- PoE budget is generous; verify your switch or injector supplies minimum 15W per port to ensure margin for future firmware or feature expansion.
The O4VD2M is a dependable choice for integrators seeking a single outdoor dome that performs across multiple zones without complexity. Plan for 30–45 minutes on-site for lens motor tuning and IR positioning; factory defaults are conservative and benefit from field optimization.
