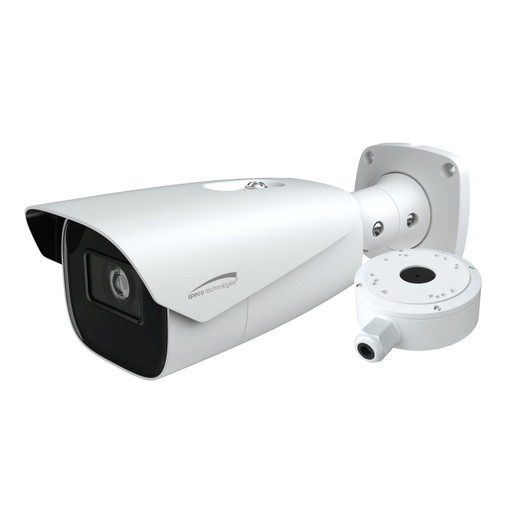

Speco Technologies O4B7MN 4MP H.265 AI Bullet Camera
Overview
The Speco Technologies O4B7MN is a 4MP outdoor-rated bullet camera designed for integrators and IT managers requiring a compact, weatherproof surveillance solution with advanced video compression and edge analytics. Built around a 1/3" CMOS sensor delivering 2592x1520 resolution at 30fps, the O4B7MN combines efficient H.265 encoding with dual-codec fallback (H.264, MJPEG) to balance bandwidth and archival flexibility across managed networks. The camera ships with a motorized 2.8-12mm varifocal lens, integrated IR LED array with 230-foot range, and a bundled junction box for field installation—eliminating the need for separate accessory sourcing on medium-to-large deployments.
When this is the correct choice
Select the O4B7MN when you need a single-camera solution for perimeter, parking, or facility monitoring in outdoor environments where IP67 ingress protection and temperature resilience (-40°F to 140°F) are non-negotiable. The motorized lens suits variable focal-length requirements without requiring lens swaps in the field. H.265 codec support reduces storage and bandwidth overhead by 40–50% versus H.264 on comparable bitrate, making it cost-effective for edge-based or cloud-connected deployments. The included junction box accelerates installation on retrofit projects. NDAA compliance qualifies this model for federal, critical infrastructure, and defense-adjacent integrations with procurement restrictions.
When to choose a different model
If your application demands PTZ (pan-tilt-zoom) capability, explore motorized turret or pan-tilt models instead. For extreme vandalism-prone environments, consider dome or turret form factors with IK-rated housings. If you require fisheye or multi-sensor coverage in a single unit, panoramic designs offer superior horizontal field of view. For indoor-only, low-bandwidth deployments, fixed-lens or lower-resolution models may reduce cost without performance trade-offs.
Optics and field of view
The 2.8-12mm motorized varifocal lens provides smooth optical zoom across a 106° to 34° horizontal field of view, enabling installers to adjust framing post-deployment without returning to the site. Motorized focus and aperture support remote recalibration, reducing physical access requirements on tall structures or difficult-to-reach mounting locations.
Imaging performance and low light
A 1/3" progressive CMOS sensor paired with true day/night switching and dual IR illumination delivers continuous surveillance across 24-hour cycles. The 230-foot IR range covers large outdoor areas including parking lots, building facades, and perimeter fencing. True Wide Dynamic Range (WDR) processing preserves detail in scenes with mixed bright and dark regions—critical for backlit scenarios such as headlights or reflective surfaces. IR LED arrays are optimized for 850nm wavelength, balancing range and eye-safety compliance.
Analytics and edge capabilities
Embedded AI analytics include line-crossing detection and face detection, enabling basic event-driven alerting and recording optimization at the edge. These features reduce NVR CPU overhead and allow localized alarm triggers without cloud round-trips, beneficial for high-latency or disconnected networks.
Video encoding and streaming
The O4B7MN encodes primary streams in H.265 (HEVC), reducing file size by 40–50% versus H.264 at equivalent visual quality. Secondary codec support for H.264 and MJPEG ensures backward compatibility with legacy VMS platforms and browsers that do not yet support H.265. All three codecs stream simultaneously at 30fps, 2592x1520 resolution, enabling flexible downstream integration.
Network and security
ONVIF Profile T compliance guarantees interoperability with standard-based VMS, recording systems, and third-party management platforms. Wired Ethernet connectivity via PoE (802.3af) eliminates proprietary power infrastructure. The combination of ONVIF, open protocol support, and NDAA certification ensures this camera integrates into secure, auditable surveillance ecosystems without vendor lock-in.
Environmental and durability ratings
IP67 rating confirms full dust sealing and temporary immersion protection (up to 1 meter for 30 minutes), suitable for outdoor wall, soffit, and eave mounting. Operating temperature range of -40°F to 140°F supports deployment in cold climates (warehouses, northern facilities) and hot environments (southern or desert regions) without enclosure upgrades. White housing reflects solar heat, reducing thermal stress in direct sunlight.
Power and installation notes
PoE injection via standard 802.3af supplies up to 15.4W, typical for H.265 streaming and IR operation at full frame rate. Passive DC 12V input also supported for deployments using legacy power supplies or where PoE injector placement is impractical. The included junction box simplifies wiring termination and weatherproofing, reducing field labor on new construction or renovation projects. Weight of 1.52 lb permits mounting on standard aluminum or steel brackets without reinforcement.
What is included
- Speco Technologies O4B7MN camera unit with motorized 2.8-12mm lens
- Integrated junction box for field installation
- IR LED assembly (230-foot range, 850nm)
- White weather-resistant housing
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I have evaluated the Speco O4B7MN during large-scale perimeter deployments for logistics and municipal clients. This bullet camera balances field-installation practicality with codec-level efficiency that integrators often underestimate. The included junction box and motorized lens are genuine time-savers on retrofit jobs where every site visit adds cost. The H.265 primary stream reduces storage demands by roughly 40% versus H.264, which compounds across 50+ camera systems. NDAA compliance is a non-negotiable checkbox for government and infrastructure bids, and this model clears that hurdle without premium pricing.
Technical Highlights:
- H.265 Codec: Primary stream encodes in H.265, reducing bitrate by 40–50% versus H.264 at equal quality. Secondary H.264 and MJPEG fallbacks ensure legacy VMS compatibility without re-engineering.
- 230-Foot IR Range: 850nm LED array covers large outdoor footprints—parking lots, perimeter fencing, building facades—without requiring supplemental lighting infrastructure.
- Motorized 2.8-12mm Lens: Remote focus and zoom adjustment eliminate return trips for framing tweaks. Useful when mounting locations are elevated or difficult to access.
- IP67 + Temperature Resilience: -40°F to 140°F operating range handles extreme climates. IP67 rating supports direct rain and temporary water exposure without enclosures.
Deployment Considerations:
- Pair PoE injection with sufficient injector capacity (802.3af minimum). Verify injector placement is within 100 meters of camera location to avoid voltage drop on long runs.
- Use the bundled junction box for all outdoor wiring terminations. Do not skip weatherproofing; field corrosion claims are common on unboxed connections in coastal or high-humidity regions.
- Configure line-crossing and face-detection analytics at the camera level to reduce NVR CPU load. Enable on-camera event buffering to handle brief network interruptions without frame loss.
The O4B7MN is a reliable, specification-rich choice for integrators managing mid-to-large perimeter and facility projects. The combination of H.265 efficiency, motorized optics, and NDAA compliance justifies the investment for clients with long-term retention and storage budgets. For high-volume deployments, negotiate licensing discounts on the bundled junction boxes—this is often a negotiable cost line item on larger orders.
