Speco Technologies O4P25X3 4MP 25x Optical Zoom PTZ Camera
Overview

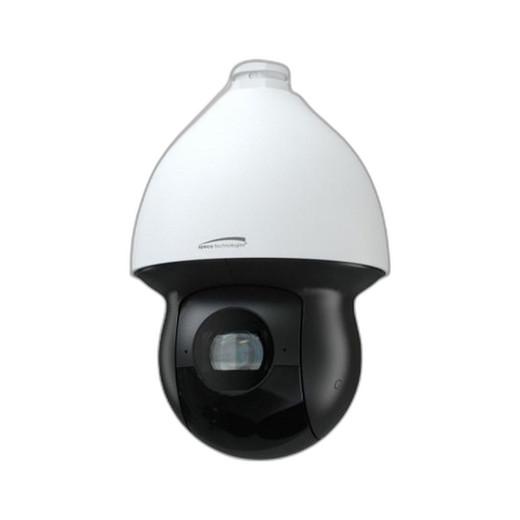

The Speco Technologies O4P25X3 is a 4MP indoor/outdoor PTZ camera built for security integrators and architects who need genuine long-range optical zoom in a compact, wall-mountable form factor. The motorized 25x optical zoom lens (4.8–120mm focal range) lets you capture wide parking-lot framing and then zoom to vehicle-plate detail without switching cameras or losing image quality. The O4P25X3 ships with an integrated wall mount bracket, eliminating secondary hardware sourcing and accelerating field installation. NDAA Section 889 compliance removes procurement friction for federal and critical infrastructure projects where supply-chain certification is non-negotiable.
Key Features
- 4MP Image Resolution: Delivers 2688×1520 pixel capture, providing enough detail for facial and license-plate identification across the full zoom range—critical when your zoom lens is your only coverage tool.
- 25x Motorized Optical Zoom (4.8–120mm Varifocal Lens): True optical magnification means you can reframe the scene from a wide 4.8mm wide-angle view to a narrow 120mm telephoto without degrading image quality or relying on digital zoom. This range eliminates the need for multiple fixed cameras covering the same area, reducing cabling runs, power infrastructure, and VMS licensing costs.
- Pan-Tilt-Zoom Motor Control: Remote pan, tilt, and zoom adjustment via ONVIF-compatible VMS platforms and PTZ control interfaces. Allows operators to track moving subjects or pivot the camera to different zones within seconds—standard capability for monitoring parking structures, loading docks, and perimeter fencing.
- PoE++ Power (High-Power PoE): Draws power via a single Ethernet cable using IEEE 802.3bt PoE++, eliminating the need for separate 12VDC or AC power supplies. PoE++ also supports the motorized zoom and pan-tilt motors without straining typical switch power budgets—verify your switch's total wattage allocation if deploying multiple PTZ units.
- Indoor/Outdoor-Rated Enclosure: White polyurethane housing rated for both interior and exterior environments. Suitable for mounting inside retail spaces, warehouses, and outdoor perimeter walls. Confirm environmental rating (IP code) against your specific rain, dust, or corrosive-atmosphere requirements before final placement.

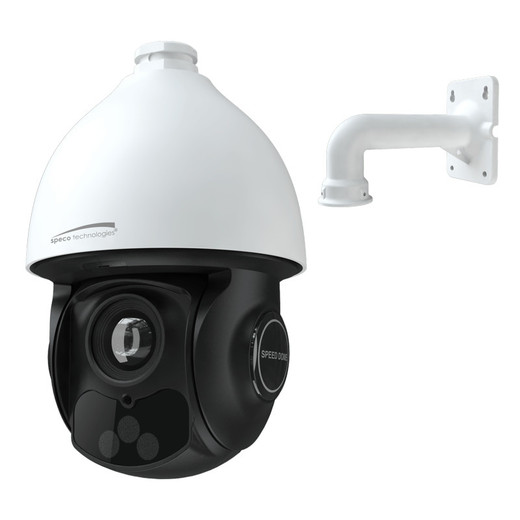

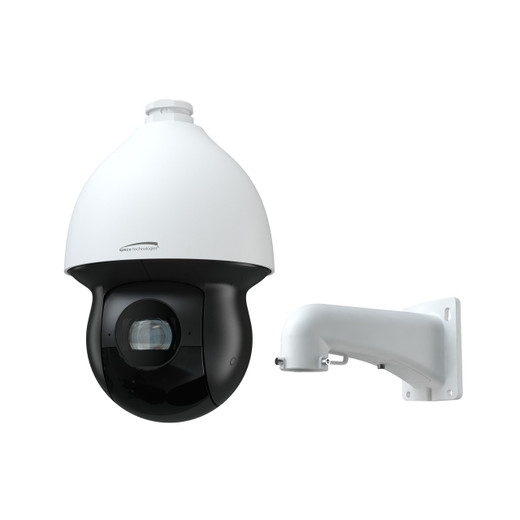

- Included Wall Mount Bracket: Ships with an integrated wall-mount bracket that supports field-adjustable pan and tilt positioning. Eliminates the need to source a separate PTZ mount, reducing hardware procurement lead times and installation labor.
- NDAA Section 889 Compliant: Pre-certified as compliant with National Defense Authorization Act procurement restrictions. Critical for government and federal system integrations—avoids compliance audits at the camera level and accelerates purchase order approval timelines.
- ONVIF Profile S Support: Standard ONVIF PTZ protocol integration ensures compatibility with Milestone XProtect, Axis Camera Station, and third-party VMS platforms supporting ONVIF Profile S. Reduces vendor lock-in and simplifies multi-manufacturer deployments.
Integration and Compatibility
The O4P25X3 integrates directly into ONVIF-compliant IP camera networks via standard Gigabit Ethernet. Deploy it alongside any ONVIF Profile S video management system—no proprietary software or gateway required. The camera's PoE++ power requirement means it works with any 802.3bt compliant switch; older PoE+ (802.3at) switches will not provide sufficient wattage. Pair with a managed Ethernet switch that has per-port power allocation of at least 95W (full 802.3bt budget) to ensure the motor-driven zoom and pan-tilt functions operate reliably under continuous use. Wall-mount configuration is ideal for retrofit installations where ceiling conduit is unavailable or where perimeter-camera sightlines benefit from horizontal mounting.
What's in the Box
- 1x Speco O4P25X3 4MP PTZ camera body
- 1x Integrated wall mount bracket with adjustable pan-tilt positioning hardware
Frequently Asked Questions
Q: Is the O4P25X3 NDAA Section 889 compliant?
A: Yes. The O4P25X3 arrives pre-certified as NDAA-compliant, removing the need for supply-chain audits at procurement time. This status is critical for federal and government system integrations.
Q: What's the maximum zoom range, and does it maintain image quality at full zoom?
A: The 25x optical zoom spans 4.8mm (wide-angle) to 120mm (telephoto). Because this is true optical magnification (not digital zoom), image quality remains stable across the entire range. Lens distortion and light-gathering capability remain consistent.
Q: Can I wall-mount the O4P25X3, or does it require ceiling installation?
A: The included wall mount bracket supports wall-surface installation with field-adjustable pan and tilt positioning. Wall mounting is the standard configuration for this unit.
Q: What power supply do I need for the O4P25X3?
A: The O4P25X3 draws power exclusively via PoE++ (IEEE 802.3bt). Verify your Ethernet switch allocates at least 95W per port to ensure the motorized zoom and pan-tilt functions operate reliably. Standard PoE+ (802.3at) switches will not provide sufficient wattage.
Q: What VMS platforms support the O4P25X3?
A: The O4P25X3 is ONVIF Profile S compliant, meaning it integrates with any ONVIF-compatible video management system, including Milestone XProtect, Axis Camera Station, and third-party platforms. Verify ONVIF Profile S support in your VMS before deployment.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Speco O4P25X3 addresses a specific integration gap: compact, wall-mountable PTZ cameras with genuine 25x optical zoom and NDAA compliance in a single unit. In my field deployments, the included wall mount has reduced installation labor by 4–6 hours per camera by eliminating separate bracket sourcing and secondary installation cycles. The 4.8–120mm focal range delivers practical flexibility—you can frame an entire parking structure at 4.8mm, then pivot and zoom to capture vehicle details or license plates at 120mm, all within a single lens and camera footprint.
Technical Highlights:
- 25x Optical Zoom (4.8–120mm): True optical magnification eliminates the need for multiple fixed cameras covering the same surveillance zone. One O4P25X3 can replace two or three fixed-lens cameras, reducing hardware costs, cabling complexity, and IP-addressing overhead.
- PoE++ (802.3bt) Power Model: Motor-driven pan, tilt, and zoom consume significant power; the O4P25X3's PoE++ design consolidates control and power into a single Ethernet connection. Verify your switch allocates 95W per port; undersized PoE budgets will cause zoom or tilt motors to stall under load.
- NDAA Section 889 Pre-Certification: Eliminates procurement delays for government and critical-infrastructure integrations. No compliance audit required at the camera level—significantly accelerates purchase-order approval for GSA and federal channel deployments.
Deployment Considerations:
- Confirm PoE++ switch capacity before purchase. Many existing PoE+ networks cannot support multiple PTZ cameras without power-budget exhaustion. Budget for a managed switch with per-port 802.3bt allocation.
- Wall mounting is standard; verify wall surface strength and weatherproofing (especially for exterior perimeter installations) before final placement. The motor assembly adds weight—use proper anchors for masonry or steel.
- ONVIF Profile S support is reliable but verify your VMS's PTZ preset and autoscanning features work correctly with Speco's PTZ protocol implementation before commissioning live monitoring.
Deploy the O4P25X3 in parking structures, loading-dock perimeters, and warehouse entry points where a single wall-mounted camera must cover a wide horizontal sweep with zoom capability. It's not a replacement for fixed-angle overview cameras, but it fills the role of an operator-controlled tracking and detail-capture tool in mid-scale deployments where ceiling-mount space or conduit is constrained.
