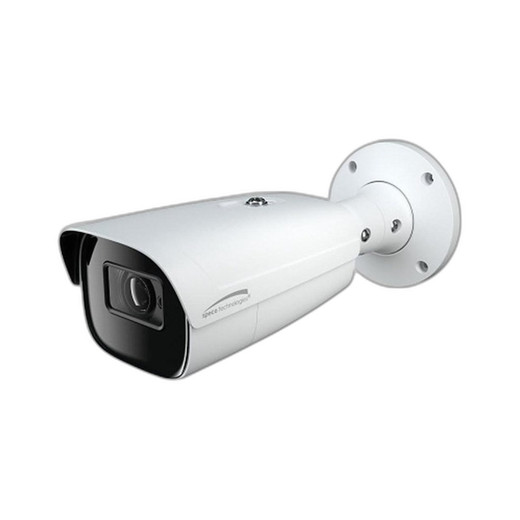

Speco Technologies O4B9M 4MP H.265 AI Bullet Camera
Overview
The Speco O4B9M is a 4MP outdoor/mixed-environment IP bullet camera designed for perimeter monitoring where network bandwidth and storage efficiency matter. This IP camera combines native 2592x1520 resolution with H.265 compression and onboard AI analytics, cutting bitrate consumption roughly in half versus H.264 at equivalent quality—a real cost factor when recording 24/7 across multiple sites. The motorized 2.8-12mm varifocal lens provides 4.3x optical zoom range, eliminating the need to pre-stage multiple fixed-lens SKUs for variable coverage distances. PoE+ power (802.3at) means one CAT6 run handles both video and data; the included junction box simplifies field termination on retrofit and new-build deployments.
Key Features
- 4MP native resolution (2592x1520) — sufficient detail for 30fps forensic review and real-time perimeter tracking without the network overhead of 5MP or 8MP variants.
- H.265 (HEVC) + H.264 + MJPEG codec support — H.265 reduces storage requirements 40–60% compared to H.264 in 24/7 continuous recording scenarios. Fallback to H.264 or MJPEG if your NVR or VMS lacks HEVC decode capability.
- Motorized 2.8-12mm varifocal lens with remote adjustment — focus and zoom are controlled via network, avoiding revisits to physically adjust lens rings. Critical on high-rise or difficult-access installations.
- 230-foot IR range (70m) with true day/night switching — automatic IR activation in low light extends perimeter visibility through dusk, night, and dawn. Not sufficient for extreme standoff distances; consult turret or PTZ alternatives if you need 300+ feet of IR throw.
- True WDR (wide dynamic range) processing — balances exposure in high-contrast scenes (building entries with direct sun, loading docks with mixed light/shadow). Prevents blown-out or crushed-black image regions.
- Edge AI: line crossing detection and face detection — analytics run on the camera itself, reducing false alarms and indexing footage by event type. Integration with ONVIF-compatible VMS platforms allows rule-based alerting without external server compute.
- IP67 environmental rating — rated for direct rainfall and dust ingress, suitable for outdoor mounting. Not submersion-rated; if full dunking or spray-wash environments are in scope, upgrade to IP68.
- PoE+ (802.3at) power draw under 13W — standard PoE injector or midspan won't strain your switch budget. Simplifies power distribution on retrofit sites where AC outlets are scarce.
- Two-way audio — built-in speaker and mic enable talk-down capability for access control or emergency intercom scenarios.
- NDAA Section 889 compliant — acceptable for federal and critical infrastructure procurement requiring Chinese equipment exclusion.
Integration and Compatibility
The O4B9M conforms to ONVIF Profile S and T, integrating with Milestone XProtect, Axis Camera Station, Genetec Security Center, and other mainstream VMS platforms. Wired Ethernet (RJ45) via PoE eliminates wireless latency and bandwidth contention. Edge analytics (line crossing, face detection) trigger ONVIF events, enabling rule-based recording and alarm relay without NVR-side configuration overhead. Tri-codec output accommodates legacy systems still running H.264-only decoders while supporting modern H.265 workflows for storage efficiency.
When to Choose the O4B9M
Select this camera when you're deploying outdoor perimeter coverage where storage costs and network bandwidth are constraints, and you need flexible focal length adjustment without swapping hardware. Ideal for retail, parking, warehouse, and campus environments where 4MP suffices and motorized zoom reduces commissioning labor. NDAA compliance makes it suitable for government and critical infrastructure projects. The combination of H.265 codec and onboard analytics delivers operational cost savings over time.
When to Choose Differently
If your site permits AC power and you need higher resolution, consider Speco Technologies higher-megapixel variants in the same family. If you require fixed 4mm focal length without zoom adjustment, fixed-lens models eliminate motorized optics cost. For extreme IR throw beyond 230 feet or ultra-wide field-of-view on a single camera, evaluate PTZ or panoramic alternatives. If you're constrained to standard 802.3af PoE (13W maximum budget), confirm your injector or midspan supports 802.3at; the O4B9M draws up to 13W and may exceed 802.3af power limits under load.
Frequently Asked Questions
Q: Is the O4B9M NDAA Section 889 compliant?
A: Yes, the O4B9M is NDAA-compliant and approved for federal and critical infrastructure deployments requiring exclusion of certain foreign-made equipment.
Q: What is the maximum IR range of the O4B9M?
A: The O4B9M delivers 230 feet (70 meters) of IR illumination range with automatic day/night switching. If your deployment requires longer IR throw, consult turret or PTZ-class alternatives.
Q: Does the O4B9M work with Milestone XProtect and Genetec?
A: Yes. The O4B9M is ONVIF Profile S and T compliant and integrates with Milestone XProtect, Genetec Security Center, Axis Camera Station, and other standard ONVIF-compatible VMS platforms.
Q: What codec should I use for storage optimization?
A: H.265 (HEVC) reduces bitrate 40–60% versus H.264 at equivalent quality. Use H.265 if your NVR or VMS supports HEVC decode. Fall back to H.264 for legacy systems or MJPEG for very low-bandwidth scenarios.
Q: Can I adjust the lens remotely on the O4B9M?
A: Yes. The motorized 2.8-12mm varifocal lens allows remote focus and zoom adjustment via network control, eliminating manual on-site lens calibration and reducing commissioning labor.
Q: What power supply does the O4B9M require?
A: The O4B9M draws power via PoE+ (802.3at) with a maximum draw of approximately 13W. One CAT6 run supplies both video and power; no separate 12VDC supply is needed.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The O4B9M lands in the sweet spot for integrators who need H.265 storage efficiency without overspecifying resolution. At 4MP with motorized varifocal optics, this Speco model trades raw megapixel count for deployment flexibility—you adjust zoom remotely rather than pre-staging three different camera SKUs across a perimeter. The 230-foot IR throw is adequate for mid-range outdoor work, but it's not a 400-foot standoff camera; know your distance requirements before committing.
Technical Highlights:
- H.265 codec + H.264 fallback: H.265 cuts bitrate 40–60% on 24/7 deployments. On a 50-camera site recording 15 days retention, that compounds to meaningful NVR storage savings. Fallback to H.264 if your VMS or NVR doesn't decode HEVC yet—not uncommon in facilities running Milestone on legacy hardware.
- Motorized 2.8-12mm lens (4.3x zoom range): Remote focus and zoom adjustment via network eliminates on-site revisits. Critical advantage on high-rise or physically challenging installations where manual lens adjustment becomes a truck roll.
- True WDR + 1/3" CMOS sensor: Handles mixed daylight/shadow scenes (parking entries, loading docks) without blown-out highlights or crushed shadows. Day/night switching is automatic; no manual filter rotation needed.
- Edge-resident AI (line crossing, face detection): Analytics run on the camera, not the NVR, reducing false alarms and enabling rule-based event triggers. Cuts down on security operator alert fatigue when properly tuned.
Deployment Considerations:
- IR range boundary: 230 feet is solid for perimeter zones closer than 75 meters. If your site requires extreme-distance IR (parking lot rear sections, vehicle yards), you'll need turret or PTZ equipment with 50+ watt arrays.
- PoE+ power draw: At ~13W maximum draw, the O4B9M sits at the 802.3at ceiling. If your switch or injector is already power-constrained, audit your PoE budget before deploying. Standard PoE (802.3af) at 15.4W total budget may not reliably support this camera plus other powered devices on the same midspan.
- ONVIF + VMS lockstep: Edge analytics (line crossing, face detection) only trigger meaningful alerts if your VMS (Milestone, Genetec, Axis Camera Station) is configured to consume those ONVIF events. Out-of-box, the O4B9M records but the AI sits silent—commission event rules in the VMS to unlock operational value.
Suitable for: outdoor retail, warehouse perimeter, campus quad, parking structure entry—anywhere 4MP 24/7 recording with storage cost control justifies the motorized lens overhead. Skip this if you need fixed 4mm cost-per-unit minimization or 300+ feet of IR; there are cheaper fixed-lens and larger-sensor alternatives for those scenarios.
