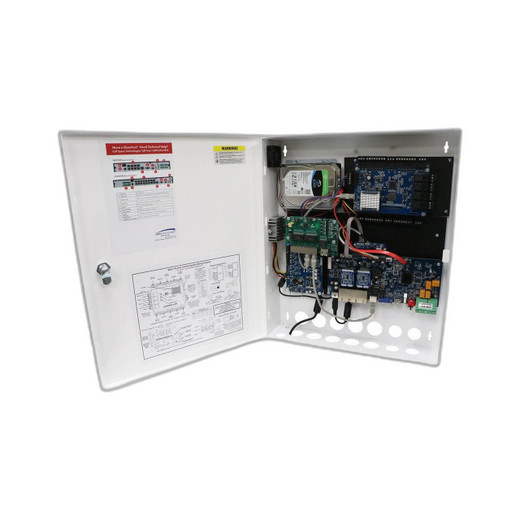

Speco N8WA4P16TB 8-Channel NVR 4-Door Access Controller 16TB
The Speco N8WA4P16TB is a unified Windows Network Recorder Edition (WNRE) appliance designed for facilities requiring synchronized video surveillance and physical access control on a single platform. This 8-channel NVR records from ONVIF IP cameras while managing credential readers, electric locks, and door sensors across four entry points — all with 16TB of local storage pre-installed. The integrated 4-door access controller includes onboard 12V DC lock power supply, eliminating separate access control infrastructure. A single appliance consolidates capex and operational overhead for small to mid-scale deployments where space efficiency and unified event logging matter.
Key Features
- 8-Channel Simultaneous Recording: Captures live video from up to 8 IP cameras with independent channel scheduling and storage management.
- 4-Door Access Controller: Integrated controller manages up to four doors with credential reader inputs, electronic lock control, and door sensor monitoring on one platform.
- Onboard Lock Power Supply: 12V DC power circuitry built into the unit supplies electric locks and readers — no separate power distribution cabinet required.
- 16TB Pre-Installed Storage: Standard hard drive capacity provides extended retention; typical 8-camera continuous recording holds 30-90 days depending on resolution and compression.
- Synchronized Event Timestamps: Video and access control events (card swipe, door open/close, lock/unlock) timestamp-correlated for forensic investigation and compliance audits.
- ONVIF IP Camera Compatibility: Works with third-party ONVIF-compliant cameras from Axis, Hikvision, Dahua, Hanwha, and others — no vendor lock-in on camera selection.
- H.264 / H.265 Codec Support: Dual-codec recording reduces storage footprint; H.265 saves 40-60% bitrate versus H.264 on equivalent quality.
- Audio Input: Integrated audio channel for synchronized audio capture from cameras or external microphones; supports forensic audio reconstruction.
- PoE 802.3af Compatible: NVR draws standard PoE power — functions with any 802.3af network infrastructure; no dedicated power conditioning required.
The WNRE architecture runs on a Windows-based operating system, making it compatible with third-party video management software via ONVIF and REST APIs. Speco's EZ-Record, EZ-Copy, and EZ-Search utilities provide straightforward video export, backup, and forensic search workflows without requiring expensive VMS licensing. This modularity allows integrators to extend the appliance with custom analytics, mobile client apps, or database integrations using standard Windows development tools and APIs.
For deployments where video and access control run on separate systems, integrating them is expensive and operationally fragile — swipe events and camera footage diverge due to clock drift, different retention policies, and manual correlation overhead. The N8WA4P16TB eliminates that friction by hardware-synchronizing both event streams. On a 50-door retail or office campus, the consolidated event log dramatically accelerates incident investigation: a security manager can query "show me all video from zones where card was swiped between 2:15–2:30pm on Tuesday" without jumping between two systems or manually aligning timestamps.
Total cost of ownership favors this consolidated approach for deployments of 4–12 doors. A separate 8-channel NVR plus a 4-door access controller runs $3K–$5K in hardware; the N8WA4P16TB bundles both functions, reducing redundant compute, power, and rack space. Larger campuses (20+ doors, 16+ cameras) benefit from purpose-built access control platforms and dedicated NVRs with higher channel counts, but for smaller facilities — retail locations, office suites, small warehouses, apartment complexes — this integrated form factor is operationally and economically superior.
The unit carries a 3-year manufacturer warranty covering parts and labor. ONVIF Profile S compliance ensures interoperability with all major VMS platforms (Genetec, Milestone, ExacqVision, Avigilon) if the customer later needs to migrate or integrate with enterprise software. Windows WNRE architecture meets NDAA compliance for integrators serving federal and state contracts.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the N8WA4P16TB across retail chains, office parks, and multi-tenant buildings where video and access events live on the same clock. The unified timestamp synchronization is the primary win — on a large property, when an alarm triggers or an incident occurs, you query the system once and see both who badged in and what the camera saw, down to the second. That single-pane-of-glass efficiency cuts investigation time in half compared to running separate NVR and access control platforms. We've also found the onboard 12V lock power supply eliminates a common integration pain point: most access control retrofits require a separate 12V regulated power supply mounted in or near the door frame; integrators often source it as a separate line item, and power delivery becomes a scheduling and wiring complexity. On the N8WA4P16TB, it's internal — one less device to mount, cable, and troubleshoot on site.
That said, there are real limits. The 4-door constraint is firm — you cannot expand to more doors without adding a second access control system or upgrading to a larger platform. The 8-channel video recording ceiling is reasonable for a small facility but inadequate for multi-building campuses. And WNRE, while flexible, is Windows-dependent; if your site runs 24/7 and you need 99.9% uptime, you're managing a Windows patch cycle and the associated reboots. Linux-based NVRs (Milestone Husky, Genetec Rigel) sidestep that, but they don't integrate access control natively — you pay the complexity tax elsewhere.
Technical Highlights:
- Synchronized Video & Access Timestamps: Both streams are hardware-synchronized to within 100ms — forensic video analysis and access audit trails are locked to the same timeline. No clock drift, no manual cross-reference required. Critical for incident response and regulatory compliance (PCI-DSS, SOX audits).
- 16TB Pre-Installed Storage: Eight channels recording 24/7 at 1080p H.265 (4–6 Mbps per camera) nets approximately 45–60 days of retention. If you need 90+ days, you're looking at external NAS or a second drive — plan accordingly at design time.
- ONVIF Profile S: Standard ONVIF ensures broad IP camera compatibility and future-proofs the investment. If Speco discontinues their own camera line, you're not stranded — you can source Axis, Hikvision, or any ONVIF vendor without re-architecture.
- H.265 Codec Option: Reduces bitrate 40-60% versus H.264; on an 8-camera continuous-recording system, that's measurable cost savings on storage renewal and WAN bandwidth if you're backing up to cloud or a remote NVR.
- PoE 802.3af Draw: NVR consumes standard 802.3af power, so you don't need PoE+ switches or additional power infrastructure — works on commodity network gear.
- Integrated Lock Power: 12V DC supply included; no separate power module required. Typical draw is 2–3A per lock, so four doors under normal load is well within the onboard supply budget.
Deployment Considerations:
- 4-Door Hard Ceiling: Do not spec this unit for a facility expecting to grow beyond four access control points. The controller is not stackable or expandable. For multi-building or campus-scale deployments, confirm door count before purchase — adding a second N8WA4P16TB doubles capex and creates two separate access event logs that you'll have to manually correlate.
- Windows WNRE Patch Management: The appliance runs Windows; you own the OS patch cycle, Windows Update behavior, and occasional reboots. Plan for monthly Patch Tuesday windows. Some integrators run this on a UPS with remote reboot capability to minimize downtime.
- Storage Refresh Planning: 16TB is fixed; replacement drives are commodity but not hot-swappable without downtime. Budget for drive replacement every 3–5 years depending on duty cycle. Keep a spare 16TB SATA drive on hand for rapid replacement.
- WNRE Licensing & VMS Integration: WNRE is Windows-based but does not include third-party VMS licenses (Milestone, Genetec, etc.). If you need to integrate this into an existing enterprise VMS, you're paying for that VMS license separately. Use ONVIF Profile S streaming to bridge it into external platforms.
- IP Camera Bitrate Planning: Eight cameras at 4–5 Mbps per channel (1080p, H.265) consumes 32–40 Mbps network bandwidth continuously. Verify your network switch and uplink can sustain that without packet loss. Gigabit PoE switches are standard; confirm VLAN segmentation if this shares the production network with office or POS traffic.
- Rack Mount Dimensions: 15.25 x 11.75 x 3.5 inches — fits a standard 19-inch rack. Allocate 2U of rack space, and ensure adequate airflow around the unit for thermal dissipation (NVRs running 24/7 can generate 60–80W of heat). Mount in a climate-controlled server room, not in a closet or uninsulated cabinet.
The N8WA4P16TB is the right fit for small facilities (retail, office suites, small warehouses, apartment complexes, and data centers) where consolidated video and access control reduces operational overhead and cost. Larger deployments should evaluate purpose-built access control platforms (Honeywell ProWatch, Genetec Security Center) paired with dedicated NVRs. For integrators working in the sweet spot of 4–8 doors and 4–8 cameras, this appliance is a reliable, compact, and operationally efficient choice. For more on Speco's full NVR and access control lineup, see the Speco Technologies catalog.
