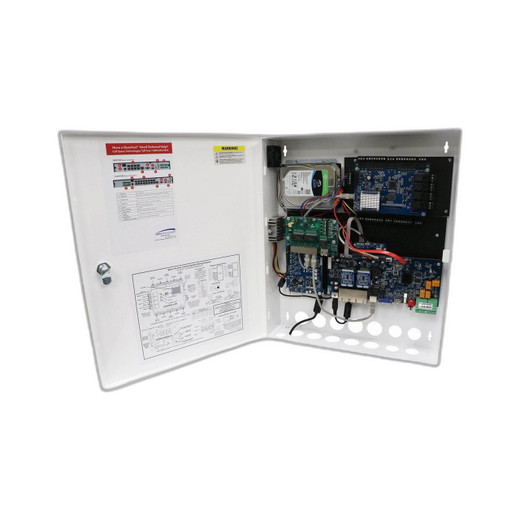

Speco Technologies N8WA4P12TB 8-Channel NVR with Integrated Access Control
Overview
The Speco Technologies N8WA4P12TB is a unified network video recording and access control platform designed for small-to-mid-scale security deployments. This system integrates 8-channel NVR functionality with a 4-door access controller and integrated lock power management in a single appliance, reducing deployment complexity and infrastructure costs. The N8WA4P12TB arrives preconfigured with 12TB of internal storage, supporting simultaneous video recording and access event logging without external NAS dependencies.
Built for security integrators and IT managers who require a single point of control for video surveillance and physical access, the N8WA4P12TB consolidates hardware footprint while maintaining separation between video and access control logic. This architecture supports mixed deployment scenarios—from retail and small office environments to light industrial facilities where door-level access granularity and video correlation are critical.
Key Features
- 8-Channel NVR Recording: Supports simultaneous recording from up to 8 IP cameras with flexible codec support and configurable frame rates to optimize bandwidth and storage utilization
- 4-Door Access Controller: Integrated access control for four doors with relay-based lock control, event logging, and credential management without external hardware
- 12TB Internal Storage: Pre-installed 12TB capacity eliminates need for external NAS setup; supports extended retention policies for both video and access logs
- Integrated Lock Power Management: Built-in power supply for electromagnetic locks and door hardware, reducing wiring complexity and external power relay requirements
- Video and Access Event Correlation: Single system timeline correlates door access events with video footage for rapid incident investigation and forensic review
- Network-Based IP Camera Support: ONVIF-compatible input for standard IP cameras; supports PoE and non-PoE devices through network infrastructure
- Compact Form Factor: Space-efficient 1U or rack-mount design suitable for server closets, equipment rooms, or distributed security nodes
- Credential Integration: Supports standard access control credential types (badge/card readers, PIN entry, biometric interfaces) via relay outputs and input monitoring
Integration & Compatibility
The N8WA4P12TB functions as both an ONVIF-compliant NVR and a standalone access controller, enabling integration into existing security ecosystems. The system accepts ONVIF Profile S standard video streams from third-party IP cameras, allowing mixed-vendor deployments. Integration with VMS platforms is supported through ONVIF discovery and event export capabilities. Access control events can be logged locally or exported via standard protocols for correlation with enterprise security platforms.
The integrated approach eliminates the need to purchase separate NVR and access control servers, reducing capital expenditure and simplifying administration for integrators managing small-to-mid-scale accounts. Lock power output is sized for standard electromagnetic locks (12V/24V DC configurations) and supports supervised door monitoring through input terminals.
Ideal Deployment Scenarios
The Speco N8WA4P12TB is well-suited for retail locations requiring both video coverage and back-office access control, small office complexes with multi-tenant security separation, healthcare facilities needing coordinated video and staff badge integration, and light manufacturing sites where equipment room and entry-point monitoring are combined. The 12TB capacity supports 24/7 recording from all 8 cameras at standard frame rates for retention periods of 7–30 days depending on resolution and codec settings.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
During integration planning for a multi-location retail account, the Speco N8WA4P12TB proved valuable as a unified appliance that eliminates the need to provision separate NVR and access control infrastructure at branch locations. The N8WA4P12TB's 12TB onboard storage and integrated 4-door lock power management significantly reduced hardware count and simplified network topology, particularly in locations with limited IT closet space.
Technical Highlights:
- Unified Recording and Access Control: Single appliance handles 8-channel video recording and 4-door access events, enabling straightforward video-to-event correlation during incident response without requiring separate systems or cross-platform synchronization
- Storage Capacity: 12TB pre-installed capacity eliminates external NAS procurement and configuration; supports extended retention without requiring supplementary storage planning
- Integrated Power Distribution: Built-in lock power supply removes dependency on external relay modules or separate 12V/24V PSUs, streamlining installer workflows and reducing wiring labor
Deployment Considerations:
- Verify network bandwidth requirements before deployment; 8 simultaneous camera streams require adequate switch port provisioning and LAN capacity. Plan for PoE or non-PoE camera mix based on available network infrastructure
- Storage sizing: Calculate retention requirements based on resolution and frame rate settings. For 24/7 recording at standard settings, 12TB typically supports 7–30 day retention; confirm with account manager for mission-critical applications requiring longer archives
- Access control credential integration is relay-based; ensure door readers and badge systems provide dry-contact output compatible with the system's input terminals. Biometric readers and advanced credential types may require third-party integration middleware
The N8WA4P12TB is a practical choice for integrators serving small-to-mid-market accounts where unified video and access control reduces deployment time and operational overhead. Request detailed technical documentation and conduct a site survey to confirm network readiness before purchase.
