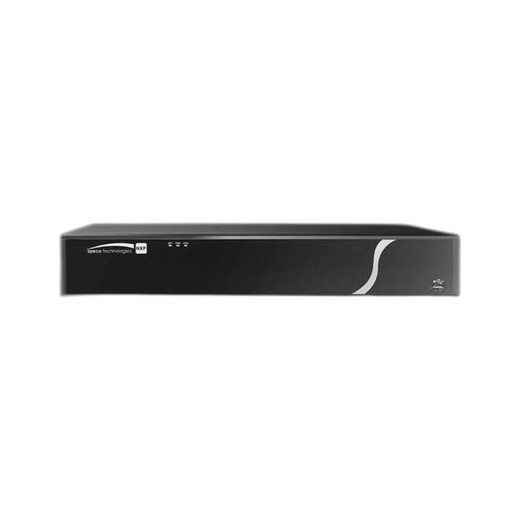

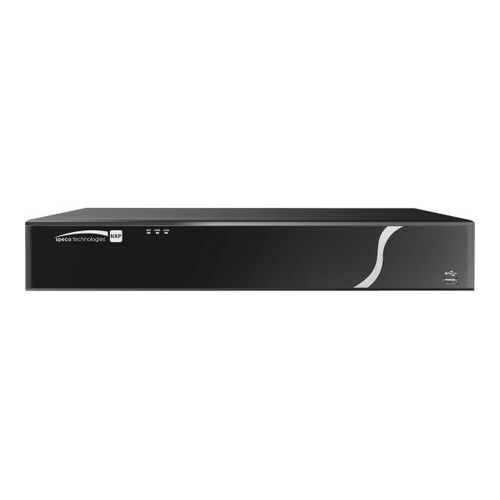

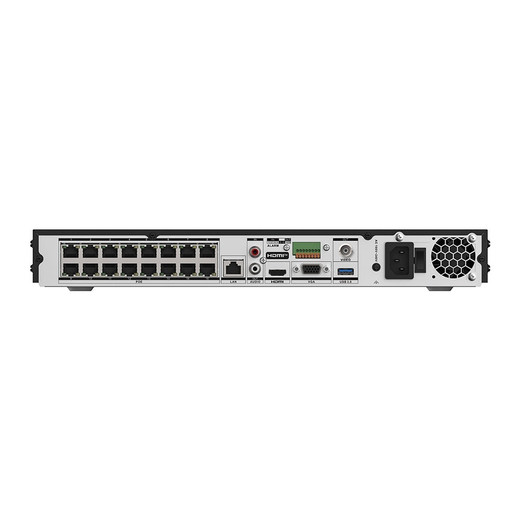

Speco Technologies N16NXP8TB 16-Channel Network Video Server
Overview
The Speco Technologies N16NXP8TB is a 16-channel network video server engineered for IP-based surveillance systems requiring integrated Power over Ethernet (PoE) delivery and substantial on-board storage capacity. This unit consolidates video acquisition, PoE power distribution, and recording infrastructure into a single appliance, streamlining deployment in medium to large-scale surveillance networks. The N16NXP8TB includes 8TB of pre-installed storage, enabling extended retention periods without external NAS dependencies.
Key Features
- 16-Channel IP Camera Support: Simultaneously processes video streams from 16 networked IP cameras, accommodating multi-site or large facility deployments.
- Integrated Power over Ethernet (PoE): Built-in PoE injection eliminates the need for separate PoE switches on many installations, reducing component count and cabling complexity.
- 8TB Internal Storage: Factory-installed 8TB storage capacity provides extended on-board recording without reliance on external storage arrays, simplifying logistics and backup strategies.
- ONVIF Compliance: Standards-based support for ONVIF Profile S, T, and G ensures compatibility with third-party IP cameras, encoders, and VMS platforms across vendor ecosystems.
- Real-Time Video Processing: Handles concurrent multi-stream recording and playback, enabling simultaneous live monitoring and historical review without performance degradation.
- Network-Based Architecture: Operates as a network appliance, permitting remote configuration, firmware updates, and system monitoring over standard IP networks without specialized on-site access.
- Professional Cooling and Reliability: Engineered thermal management supports continuous 24/7 operation in climate-controlled server environments typical of security operations centers and enterprise facilities.
- Flexible Recording Modes: Supports continuous recording, scheduled recording, and motion-triggered event capture, optimizing storage utilization based on operational requirements.
- Multi-User Access Control: Role-based user management enables segregated access permissions for operators, supervisors, and administrators without requiring separate authentication infrastructure.
- Redundancy and Failover Ready: Architecture supports integration with backup and failover systems for mission-critical surveillance environments.
Integration and Compatibility
The N16NXP8TB functions within ONVIF-compliant ecosystems, integrating seamlessly with standard IP cameras, video management systems, and network infrastructure. PoE integration reduces dependency on external switching hardware, particularly valuable in retrofit installations where switch port density is constrained. Network-based operation permits integration with existing enterprise network monitoring, backup, and security infrastructure, enabling unified system administration across surveillance and IT operations.
Deployment Considerations
Installation of the Speco N16NXP8TB occurs in climate-controlled environments such as server rooms, network closets, or security operations centers. The 16-channel capacity and integrated PoE support make this unit suitable for mid-scale installations including multi-building campuses, retail chains with centralized monitoring, and enterprise security operations. Pre-installed 8TB storage eliminates procurement delays for storage components and reduces initial configuration burden. Network bandwidth requirements scale with camera resolution and frame rate; design of the IP network infrastructure should account for aggregate bitrate across 16 simultaneous streams.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
During integration planning for a recent 16-camera retrofit across a distribution facility, the Speco N16NXP8TB simplified our architecture considerably. The integrated PoE capability reduced our switching requirements and eliminated intermediate PoE injectors, while the pre-loaded 8TB storage meant we could begin recording immediately without waiting on storage procurement cycles.
Technical Highlights:
- PoE Integration: Built-in PoE injection supports powering cameras directly from the unit, reducing external switch dependencies and streamlining cable runs in constrained installations.
- Storage Capacity: 8TB of on-board storage provides approximately 30–90 days of retention at standard resolution depending on frame rate and compression settings, adequate for most operational review windows without external NAS.
- ONVIF Standards Support: Full compliance with ONVIF profiles ensures camera and VMS flexibility, protecting your investment across vendor transitions and multi-brand environments.
Deployment Considerations:
- Position the N16NXP8TB in a climate-controlled server environment with stable power and network connectivity; avoid outdoor or uncontrolled temperature spaces that shorten component lifespan.
- Validate network bandwidth before deployment—16 concurrent streams at 4 Mbps each consume 64 Mbps; gigabit switching is essential, and dedicated VLAN segmentation recommended for operational stability.
- Implement regular backup routines for recorded footage stored on the 8TB volume; do not rely solely on internal storage for long-term archive requirements.
The N16NXP8TB is a solid choice for integrators managing medium-scale IP surveillance expansions where simplicity, standards compliance, and integrated power distribution deliver operational efficiency and reduce component interdependencies.
