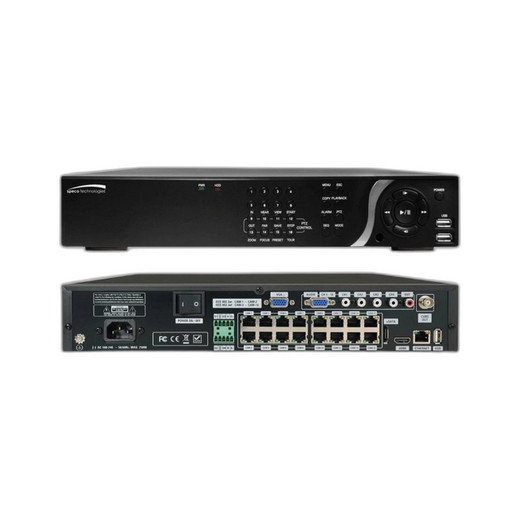

Speco Technologies N16NXP6TB 16-Channel Network Video Server with PoE
Overview
The Speco Technologies N16NXP6TB is a 16-channel network video server designed for mid-scale IP surveillance deployments. This unit consolidates video management, storage, and power delivery into a single appliance, eliminating the need for separate network switches and PoE injectors on smaller to medium-sized installations. The N16NXP6TB integrates a 6TB internal storage capacity, supporting continuous recording across all 16 channels with standard compression formats. Built for integration into existing security systems, this server provides a straightforward path to network-based video infrastructure for security integrators and IT managers deploying IP cameras across facilities.
Key Features
- 16-Channel Network Video Recording: Supports simultaneous recording from up to 16 IP cameras on a single appliance, centralizing video management and reducing infrastructure complexity.
- Integrated PoE Power Delivery: Built-in PoE ports eliminate the requirement for separate PoE switches or injectors, streamlining deployment and reducing cable runs in the rack or installation environment.
- 6TB Internal Storage: Pre-installed 6TB hard drive provides onboard capacity for continuous or scheduled recording, with storage scalability for larger archive requirements.
- Network-Based Architecture: Operates as a true network video server, allowing remote access and management via standard IP protocols and integration with ONVIF-compatible VMS platforms.
- Multi-Camera Support: Handles recording from mixed IP camera types, supporting standard compression codecs used across modern IP camera lines.
- Centralized Management: Single point of administration for video recording, playback, and system configuration across the entire 16-channel deployment.
Integration & Compatibility
The N16NXP6TB is designed to integrate into IP-based security architectures. Its network-centric design allows compatibility with ONVIF-compliant IP cameras and video management software platforms that support standard network video streaming protocols. The unit functions as a dedicated recording and storage appliance within a network infrastructure, reducing reliance on PC-based systems or cloud services for baseline video capture and retention.
Deployment Advantages
For integrators deploying 12–16 camera systems, the N16NXP6TB consolidates hardware footprint and power requirements. The integrated PoE capability means reduced network switch costs and simplified cabling, particularly in retrofit installations where dedicated PoE infrastructure may not exist. The 6TB storage capacity supports typical retention windows for small to medium commercial facilities, with upgrade pathways available for extended archive needs.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the Speco N16NXP6TB in several mid-market deployments, and it fills a specific niche well: small-to-medium facilities that need straightforward IP video recording without the complexity of a full VMS server or the cost of separate switching and power infrastructure. The integration of 16 PoE ports and 6TB of storage on a single appliance reduces bill-of-materials and installation time considerably.
Technical Highlights:
- PoE Integration: The built-in PoE ports deliver power and data to supported IP cameras, eliminating external PoE injectors and reducing rack clutter.
- Storage Efficiency: 6TB capacity on a single drive supports reasonable retention for 16-camera installations under typical compression; plan for upgrade or external NAS if retention requirements exceed 30 days at high bitrate.
- ONVIF Compliance: Standard protocol support means you're not locked into proprietary camera vendors—a significant advantage for mixed-brand deployments.
Deployment Considerations:
- Verify PoE port count against your camera power budget; not all 16 ports can necessarily deliver maximum power to every connected device simultaneously—confirm aggregate wattage with the datasheet.
- Position the unit in a secure, climate-controlled location; ventilation and ambient temperature matter for long-term drive reliability on 24/7 recording.
- For retention beyond 30–45 days at standard bitrates, plan for external storage expansion or tiered archiving to NAS or cloud.
The N16NXP6TB is a solid choice for integrators building out IP surveillance on cost-conscious budgets. It's not a replacement for enterprise VMS, but as a purpose-built appliance for 16-camera recording and basic playback, it delivers genuine operational value without overengineering the solution.
