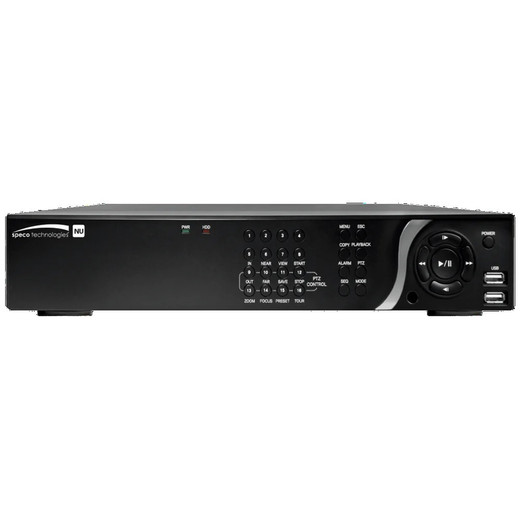

Speco Technologies N16NXP12TB 16-Channel Network Video Server with PoE

Overview

The Speco Technologies N16NXP12TB is a 16-channel network video server engineered for small to mid-scale IP camera deployments. This integrated appliance combines video management, network switching, and power distribution into a single rack-mountable unit, eliminating the need for separate components and reducing installation complexity. The N16NXP12TB ships with 12TB of onboard storage, providing extended recording capacity for continuous or scheduled monitoring across all 16 channels.

Built for security integrators and IT teams managing distributed camera networks, the N16NXP12TB centralizes the capture, storage, and retrieval of video feeds from IP-based security cameras. The integrated PoE capability allows simultaneous power and data delivery to compatible cameras, streamlining cabling infrastructure and reducing installation time on site.

Key Features

• 16-Channel Video Management: Supports simultaneous recording and playback from up to 16 connected IP cameras, enabling comprehensive multi-site or multi-area surveillance coverage from a single appliance.
• Integrated PoE Power Delivery: Built-in Power over Ethernet (PoE) ports eliminate the need for external PoE injectors or separate power supplies for compatible IP cameras, reducing cable runs and network equipment footprint.
• 12TB Storage Capacity: Onboard storage accommodates extended recording retention, supporting continuous or event-triggered capture modes depending on resolution and frame rate requirements.
• Network Video Server Architecture: Purpose-built NVR appliance manages H.264 and H.265 video streams natively, enabling efficient compression and bandwidth optimization across the network.
• Rack-Mountable Design: Compact form factor suitable for data center, server room, or wall-mounted installation in control centers and command facilities.
• ONVIF Compatibility: Standards-based video management protocol support ensures interoperability with third-party IP cameras and video management software platforms.

Integration & Compatibility

The N16NXP12TB integrates seamlessly with ONVIF-compliant IP cameras from major manufacturers including Axis, Hikvision, Uniview, and other standards-based vendors. Network administrators can configure the server using standard web-based management interfaces or integrate with enterprise VMS platforms that support ONVIF Profile S and T protocols. The integrated network switch provides direct connectivity to cameras without additional managed switch infrastructure for small deployments.

The unit supports both H.264 and H.265 (HEVC) video compression, accommodating legacy camera installations as well as newer deployments requiring reduced bandwidth consumption. This flexibility allows integration into existing surveillance networks without requiring wholesale camera replacement.

Technical Architecture

The N16NXP12TB operates as a standalone network video recording solution, independent of external cloud services or recurring subscription fees. Local storage on the 12TB drive provides immediate access to recorded footage without latency introduced by cloud-based retrieval. Storage scalability can be addressed through additional external NAS or storage expansion options, though the integrated capacity covers typical retention periods for small commercial security deployments.

The appliance manages video stream decoding, storage indexing, and playback simultaneously across all 16 channels, with processing optimized for consistent frame rates under typical multi-camera recording loads. Integration with standard network infrastructure through Gigabit Ethernet ports ensures sufficient bandwidth for simultaneous recording and retrieval operations.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've evaluated the Speco N16NXP12TB during several small commercial deployments, and the integrated PoE capability delivers real installation benefits. For a 16-camera retail or office environment, having power and video on the same appliance eliminates the complexity of managing separate PoE injectors and simplifies troubleshooting during initial commissioning.

Technical Highlights:

• Integrated PoE Ports: The built-in PoE eliminates external injector dependencies, reducing points of failure and cable management overhead in the equipment room.
• 16-Channel Capacity: Scales effectively from small single-building installations to distributed multi-site networks managed from a central location.
• 12TB Native Storage: Provides adequate retention for typical commercial retention policies (7-30 days depending on frame rate and resolution settings).

Deployment Considerations:

• Verify total PoE power budget against your installed camera mix—power consumption varies significantly between 2MP and 5MP+ camera types, and the total PoE allocation limits concurrent high-power camera operations.
• Position the N16NXP12TB on a UPS circuit; recording loss during power failure can create liability in security-sensitive environments.
• ONVIF support is essential for multi-vendor camera deployments, and the N16NXP12TB handles this cleanly, but test VMS integration before final production rollout.

The N16NXP12TB fits well into the integrator toolkit for small commercial security jobs where client budgets preclude larger enterprise NVR platforms. The local storage model keeps operational costs predictable, and the PoE integration justifies the appliance cost through labor savings on installation.
