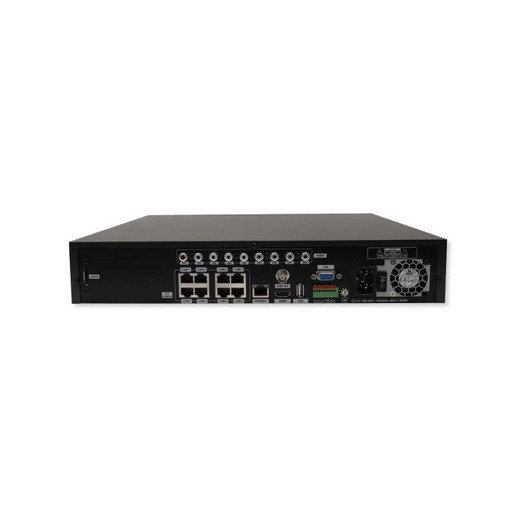

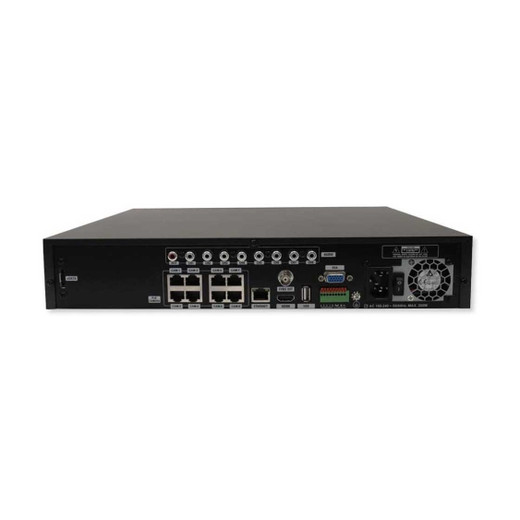

Speco Technologies N16NU12TB 16-Channel Network Server with PoE
The Speco Technologies N16NU12TB is a 16-channel network video server engineered for IP-based surveillance deployments that demand on-site storage, integrated power distribution, and efficient compression. This unified appliance consolidates video management, recording, and PoE power delivery into a single 1U rackmount platform, making it a core component for integrators building scalable NVR solutions.
Overview
The N16NU12TB combines server-grade hardware with integrated PoE capabilities to support up to 16 IP cameras over a single Ethernet connection. The unit arrives pre-configured with 12TB of internal storage, providing sufficient capacity for extended retention periods across all 16 channels. H.265 codec support enables efficient video compression, reducing bandwidth consumption and storage overhead compared to legacy H.264 implementations. This architecture is ideal for retrofit installations, distributed sites, and environments where dedicated server space and power infrastructure are constrained.
Key Features
- 16-Channel PoE Integration: Built-in PoE power delivery eliminates the need for external injectors or separate PoE switches, streamlining installation and reducing rack footprint.
- 12TB Internal Storage: Factory-installed hard drive capacity supports continuous 24/7 recording across all channels with meaningful retention depth.
- H.265 Codec Support: Advanced video compression reduces file sizes and bandwidth requirements, lowering operational costs for sites with bandwidth constraints or high-retention mandates.
- 4K Video Compatibility: Supports 4K resolution streams from modern IP cameras, enabling high-definition surveillance for critical areas without external scaling hardware.
- 1U Rackmount Form Factor: Compact, standardized server housing integrates seamlessly into existing IT infrastructure and data center deployments.
- Network-Based Architecture: ONVIF-compliant design ensures interoperability with cameras and management software from multiple vendors, avoiding vendor lock-in and enabling phased equipment refresh cycles.
Integration & Compatibility
The N16NU12TB operates as a standards-based network video recorder, accepting ONVIF-compliant IP camera streams over standard Ethernet. PoE power is delivered simultaneously on the same connection, reducing cable runs and simplifying network topology. Integration with third-party VMS platforms, mobile apps, and cloud analytics gateways is supported through ONVIF Profile conformance. The 16-channel capacity scales from small retail and office installations to branch locations in larger enterprise deployments.
Storage and Recording
The 12TB storage subsystem is configured for high-availability recording workflows. Continuous recording across all 16 channels at standard frame rates and resolution levels yields retention periods measured in days to weeks, depending on codec selection, resolution, and frame rate. H.265 compression extends retention windows by 30–50% versus H.264, making it the preferred codec for long-term on-site archival use cases. Storage is managed through the server's built-in firmware, and data retrieval for forensic review or compliance export is performed via the management interface or direct network access.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've deployed the Speco N16NU12TB in branch office and retail environments where integrating camera power, switching, and recording into a single appliance reduces both installation time and operational complexity. The N16NU12TB performs well as a recording backbone for sites that need reliable 24/7 capture without the overhead of a full server build.
Technical Highlights:
- PoE Consolidation: 16-channel integrated PoE means one network cable per camera and centralized power management. No external PoE injectors or switches required for basic deployments.
- H.265 Efficiency: Codec selection directly impacts retention depth. H.265 cuts file sizes roughly in half, allowing the 12TB drive to hold more content or longer windows.
- 4K Support: Cameras delivering 4K streams record natively without transcoding, preserving detail for forensic review in high-value areas.
Deployment Considerations:
- Validate network switch uplink capacity; 16 simultaneous camera streams plus management traffic can saturate gigabit ports under high frame-rate or full-resolution scenarios.
- Plan storage lifecycle early. 12TB supports typical retention windows, but growth to 32 or 64 channels requires additional recorders or external NAS integration.
- Configure automated backup or failover if the site requires business continuity for surveillance data.
The N16NU12TB is a practical choice for mid-scale IP surveillance rollouts where you need reliable, vendor-neutral recording and want to avoid over-provisioning server resources. It's particularly strong in retail, small office, and branch deployments where space and power are limited.
