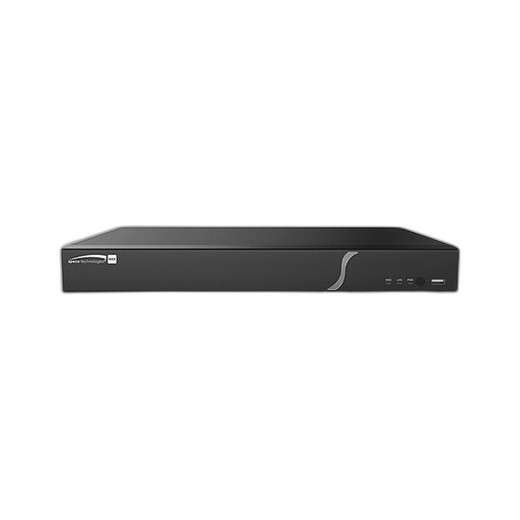

Speco Technologies N16NRX4TB 16-Channel Facial Recognition NVR
The Speco Technologies N16NRX4TB is a 16-channel network video recorder purpose-built for facial recognition and intelligent analytics in multi-camera deployments. The unit combines dedicated facial recognition processing with video analytics—all running on the recorder itself—eliminating the need for external GPU servers or third-party compute infrastructure. With 4TB of internal storage pre-installed, the N16NRX4TB addresses real-time identification, watchlist matching, and investigative workflows across retail, transportation, access control, and secure facility environments.
Key Features
- 16-Channel Simultaneous Recording and Analytics: Processes video from 16 network cameras at full frame rate without cascading recorder instances or external compute nodes. Meaningful when deploying across multi-zone retail floors, entrance halls, or distributed office access points where centralized storage and analytics reduce operational complexity.
- Integrated Facial Recognition Engine: Real-time face detection, identification, and demographic attribute extraction (age, gender, emotion) run on the recorder hardware. No reliance on cloud services or third-party servers means faster alerts, no bandwidth overhead to external platforms, and direct control over face database and watchlist management.
- Advanced Video Analytics: Object detection, people counting, loitering detection, and zone-crossing alerts work across all 16 channels. Translates into faster incident detection—security teams receive alerts before situations escalate—and reduced manual review time during forensic investigation by filtering irrelevant footage.
- 4TB Internal Storage: Pre-configured capacity supports extended retention for 16-channel streams at standard resolutions with H.265 or H.264 compression. At H.265 bitrates, 4TB typically yields 7–15 days of 24/7 recording depending on resolution and scene complexity; network-attached storage (NAS) integration scales retention for compliance-driven policies without swapping hardware.
- H.265 and H.264 Codec Support: H.265 reduces storage footprint roughly 40–50% compared to H.264 on equivalent quality, directly lowering your cost-per-day-retained and extending retention windows before archival or deletion. H.264 support ensures compatibility with legacy cameras still common in retrofit deployments.
- ONVIF Profile S Compatibility: Standards-based camera interface works with mainstream IP camera brands—Axis, Hikvision, Dahua, Uniview, Hanwha, and others—without vendor lock-in. Integration with network video recorders from different manufacturers or camera vendors becomes straightforward during mixed-vendor deployments.
- Web and Mobile Remote Access: Secure web portal and mobile app enable authorized users to view live streams, search facial matches, and pull forensic playback from any network connection. Role-based access control restricts investigators to specific time windows or camera zones, supporting audit trails for regulated environments.
- Facial Search and Forensic Tools: Dedicated search interface filters recordings by matched faces, time range, and analytics events (loitering, zone violations). Reduces manual frame-by-frame review from hours to minutes when tracing a known individual across multiple entry points or shift periods.
- Webhook and REST API Alert Integration: Configurable rules forward facial matches, loitering, and analytics events to email, SMS, webhook endpoints, or access control systems. Enables automation—triggering door locks, summoning security, or flagging incidents in third-party incident management platforms—without manual intervention.
Integration & Compatibility
The N16NRX4TB operates standalone or within hybrid security ecosystems. ONVIF Profile S support enables integration with video management software platforms including Milestone XProtect, Genetec Security Center, Axis Camera Station, and Hanwha WiseNet. Facial recognition metadata and alerts forward to access control databases, identity verification systems, and third-party incident response tools via REST API. Network-based architecture means cameras deploy across distributed sites—entrance lobbies, warehouse aisles, loading docks—connected via secure IP networks without DVR analog cabling constraints.
Deployment Considerations
Indoor installations in retail, corporate office, transportation, and hospitality environments benefit from facial recognition accuracy without weather-related sensor noise. The 16-channel density supports multi-zone retail layouts, visitor verification at staffed entrances, and staff badge/face matching workflows. Extended retention leverages the 4TB base storage for compliance investigations; larger deployments or long-term retention policies should evaluate NAS expansion, cloud archive tiers, or lifecycle management rules to control storage costs. Real-time face matching integrates with existing access control databases—adding or removing persons of interest from watchlists triggers immediate rule updates across all 16 channels without recorder restart.
Frequently Asked Questions
Q: Does the N16NRX4TB require an external server or GPU for facial recognition?
A: No. The N16NRX4TB includes integrated facial recognition processing on the recorder hardware. All face detection, identification, and alerting run locally without external compute resources or cloud dependencies.
Q: What cameras work with the N16NRX4TB?
A: Any ONVIF Profile S-compliant IP camera integrates with the N16NRX4TB, including Axis, Hikvision, Dahua, Uniview, Hanwha, Vivotek, and others. Verify your specific camera model supports ONVIF Profile S output before purchase.
Q: Can I expand storage beyond 4TB?
A: Yes. The N16NRX4TB supports network-attached storage (NAS) integration for extended retention policies. Consult the recorder's configuration interface or contact the integrator for NAS compatibility details.
Q: Does the N16NRX4TB integrate with my access control system?
A: The N16NRX4TB forwards facial recognition events and analytics metadata via webhook and REST API. Your access control platform must support webhook ingestion or REST polling to receive and act on these events. Consult your access control vendor for API compatibility.
Q: What is the typical storage duration for 16 channels at standard resolution?
A: At H.265 compression, the 4TB base storage typically supports 7–15 days of 24/7 recording depending on resolution (1080p vs. 4K), bitrate, and scene complexity. Use manufacturer retention calculators with your specific camera resolution and frame rates for accurate planning.
Q: Can I use the N16NRX4TB with my existing VMS platform?
A: The N16NRX4TB supports integration with ONVIF-compatible VMS platforms including Milestone XProtect, Genetec Security Center, and Axis Camera Station. Facial recognition events and metadata stream to these platforms via API or webhook depending on platform support.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Speco N16NRX4TB occupies a practical middle ground in the facial recognition NVR space. The integrated recognition engine eliminates the $5K–$15K external GPU server tax that many integrators impose, and the ONVIF Profile S architecture sidesteps vendor lock-in. That said, the 4TB base storage is modest for 24/7 multi-zone retail or transportation deployments; you'll be planning NAS expansion or lifecycle policies within the first month of operation in most commercial settings.
Technical Highlights:
- 16-channel facial recognition without external GPU: All face detection, identification, and watchlist matching execute on the recorder. Means faster alerts (no cloud latency), lower bandwidth consumption to external platforms, and direct control over sensitive face databases—critical in regulated retail or hospitality.
- H.265 codec support reduces storage footprint 40–50%: With 4TB, you're buying roughly 7–15 days of 24/7 recording at 1080p depending on bitrate and scene activity. In a 50-camera retail cluster, NAS expansion becomes a requirement, not an option; budget for networked storage from day one.
- Webhook and REST API alert routing: Facial matches and loitering detections integrate directly with access control systems, incident management tools, and mobile alerting—no custom VMS plugins required. Straightforward to automate door locks or trigger security workflows on recognized persons of interest.
Deployment Considerations:
- The N16NRX4TB assumes stable IP connectivity and network availability. If your site lacks redundant network paths or has intermittent uptime, plan failover recorder instances or edge caching on individual cameras.
- Face recognition accuracy degrades significantly below 640×480 resolution on a person's face in frame. In large retail environments with distant entrance cameras, oversized face crops at check-in points improve match confidence and reduce false positives during peak hours.
Best suited for mid-scale retail chains, corporate office visitor verification, transportation checkpoints, and secure facility access control where 16-channel centralized recording and real-time face matching integrate with existing access systems. If you're managing 50+ cameras across multiple sites, consider higher-channel or clustered NVR architectures instead.
