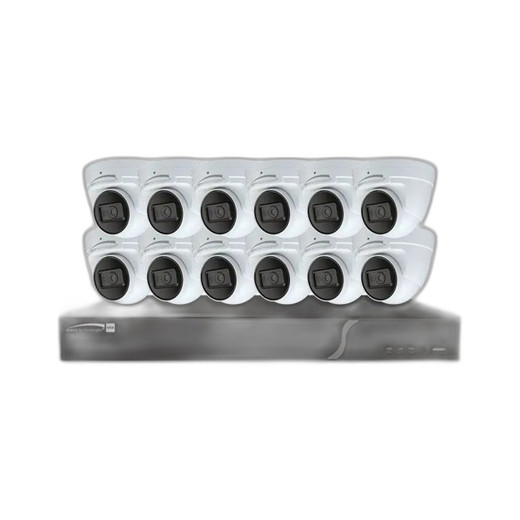

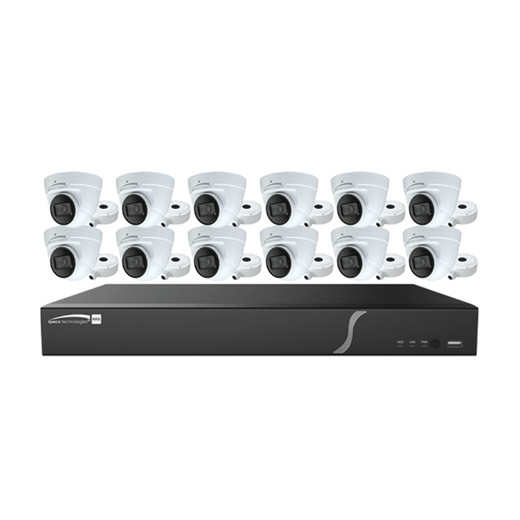

Speco Technologies ZIP1612T4 16-Channel NVR Kit with 4TB Storage and 12×4MP Turret Cameras
Overview
The Speco Technologies ZIP1612T4 is a complete, turnkey 16-channel network video recorder system designed for mid-to-large facilities requiring centralized IP camera management without extended configuration cycles. This kit ships with 4TB of integrated hard disk storage and 12 factory-tested 4-megapixel turret cameras, providing everything needed for immediate deployment across warehouse, retail, office, and light industrial environments. The ZIP1612T4 recorder supports simultaneous recording and playback across all 16 channels — meaning you can review archived footage on one set of monitors while live streams continue uninterrupted on another. That capability matters when you're trying to investigate an incident without halting active surveillance.
Key Features
- 16-Channel Full Simultaneous Recording and Playback: Record from all 16 channels at full resolution without performance drop, and review archived video on a separate display while live monitoring continues. This eliminates the need to pause active surveillance during investigations.
- 4TB Integrated Hard Disk Storage: Pre-installed 4TB capacity supports extended retention periods. Actual retention depends on frame rate, resolution, and compression settings — at 4MP resolution with H.265 codec, you'll see longer retention windows than with H.264, which matters for 24/7 deployments where storage cost is a factor.
- 12×4MP Turret Cameras Included: Pre-integrated 4-megapixel turret form factor cameras arrive tested and ready to deploy, eliminating camera procurement lead time and factory-testing validation. The turret profile suits both ceiling and wall mounting in mixed indoor/outdoor environments.
- H.265 and H.264 Compression Support: Dual codec flexibility lets you optimize the storage-versus-bandwidth tradeoff per deployment. H.265 cuts file size roughly in half compared to H.264 at equivalent quality — a real savings on 24/7 multi-camera systems where bandwidth or storage budgets are tight.
- ONVIF IP-Based Architecture: The recorder operates as an ONVIF-compliant network device, meaning it integrates with Speco management software and any third-party ONVIF Profile S-compatible VMS platform. You're not locked into a proprietary ecosystem — future camera additions from other manufacturers can be added to the 16-channel backbone as long as they support ONVIF.
- Dual Video Outputs (HDMI and VGA): Connect two independent monitors for split monitoring workflows — live on one, playback or secondary feeds on another — without additional hardware.
- Remote Network Access and Mobile Client: Ethernet connectivity supports remote viewing, configuration, and forensic export over secure IP connections. Mobile app support enables field access to live and playback streams without requiring a return to the monitoring station.
Integration and Compatibility
The ZIP1612T4 operates natively with ONVIF Profile S-compatible management platforms, including Speco's own software suite and third-party VMS applications that support the ONVIF standard. The IP-based design eliminates proprietary analog dependencies, allowing you to mix network video recorders with additional ONVIF-compatible IP cameras from alternative vendors if future expansion is required. Network commissioning is straightforward — the recorder connects via standard Ethernet, and cameras provision via PoE power delivery on the same cabling. You'll want to verify your network switch has sufficient PoE budget for 12 simultaneous cameras plus the recorder's network overhead before installation.
Deployment Considerations
Plan your network bandwidth carefully. Twelve simultaneous 4MP streams at 30 fps require meaningful switch capacity, particularly if you're also pushing video to a remote VMS or cloud backup. The 4TB storage capacity is suitable for typical retention windows (7–14 days at moderate compression), but verify against your facility's retention policy — higher frame rates and lower compression settings will reduce that window. The turret cameras are rated for indoor and weathered outdoor installations, but confirm specific environmental ratings during site assessment if you're deploying in harsh or corrosive conditions. PoE power delivery must be pre-planned: verify your switch supports 802.3af or 802.3at for all 12 cameras, and ensure the recorder has adequate AC power and cooling for 24/7 operation. If expansion beyond 16 channels is anticipated, consider whether additional NVRs will be required or whether a larger Speco recorder would be more cost-effective upfront.
When to Choose a Different Model
If your facility requires more than 16 channels of simultaneous recording, or if you need higher resolution (such as 8MP or higher-megapixel sensors), consult Speco's higher-capacity recorder line. Similarly, if you need cameras with specialized features — such as built-in PTZ, thermal imaging, or panoramic multi-sensor arrays — you may be better served by purchasing the ZIP1612T4 recorder alone and sourcing cameras separately from the broader Speco catalog or compatible vendors.
Frequently Asked Questions
Q: Can I add more than 16 cameras to the ZIP1612T4?
A: The recorder has 16 channels of recording capacity. You can connect more cameras via ONVIF, but only 16 can record simultaneously. Additional cameras would stream live to a VMS or mobile client without contributing to the main recorder's storage.
Q: What's the expected storage retention with the included 4TB drive?
A: Retention depends on frame rate, resolution, and compression. At 4MP with H.265, expect 7–14 days of 24/7 recording for all 12 cameras. H.264 will reduce that window by roughly 40–50%. Test your specific configuration during commissioning to confirm.
Q: Does the ZIP1612T4 work with my existing VMS platform?
A: If your VMS supports ONVIF Profile S, yes. The ZIP1612T4 is ONVIF-compliant. Verify your VMS documentation or contact your VMS vendor to confirm ONVIF Profile S support before purchase.
Q: How much PoE power do the 12 included cameras require?
A: Each turret camera operates under 802.3af PoE standard power budgets. Confirm your switch's total PoE wattage can support 12 cameras plus any other networked devices on your installation.
Q: Can I replace the 4TB drive with a larger capacity?
A: The ZIP1612T4 includes an integrated hard disk. Consult the manufacturer or your integrator regarding drive replacement procedures and compatibility before attempting any swap.
Q: What codecs does the ZIP1612T4 support?
A: The recorder supports both H.265 (HEVC) and H.264 (AVC) compression. H.265 delivers roughly 50% file size savings compared to H.264 at equivalent quality, reducing storage costs on long-term retention deployments.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The ZIP1612T4 is a solid baseline for integrators looking to deploy a complete kit solution without sourcing cameras and recorders separately. The pre-integration saves commissioning time, and the ONVIF compliance keeps you from locking into a single ecosystem. That said, the real decision point is storage: 4TB at 4MP resolution is adequate for small-to-mid facilities, but you'll want to run a retention calculation during the bid phase — especially if your customer expects more than 10–14 days of 24/7 recording.
Technical Highlights:
- Dual Codec Support (H.265 / H.264): H.265 compression cuts storage by roughly 50% at equivalent quality compared to H.264. On a 24/7 multi-camera deployment, that translates to either doubling your retention window or halving your long-term storage costs — meaningful on facilities with tight budget constraints.
- 16-Channel Full Simultaneous Recording and Playback: You can investigate archived footage without pausing live streams. That capability eliminates operational friction during incident response and doesn't require a separate playback appliance.
- 4TB Integrated Storage: Pre-installed capacity means no additional procurement or external NAS configuration. The tradeoff is that drive replacement requires downtime — plan for that in your service SLA.
Deployment Considerations:
- Network Bandwidth Planning: Twelve 4MP streams at 30 fps require meaningful switch PoE headroom. Verify your switch specifications before ordering — a typical managed PoE switch at the mid-market level will handle this, but 100-Mbps uplinks to a remote NAS or cloud backup can become a bottleneck if you're not careful.
- Storage Retention Math: Don't skip the retention calculation. Run the compression numbers in the recorder's admin interface during commissioning — if 4TB doesn't meet your customer's policy (often 30 days minimum in regulated environments), you'll either need to spec a larger recorder model upfront or plan for external archive storage, both of which affect your proposal.
- Turret Camera Placement Limitations: Turrets are compact, but they're not as flexible for long-throw or specialty viewing angles as separable camera options. If the customer needs both overhead and perimeter coverage from different angles, you may spend more time on ceiling layout during site planning.
The ZIP1612T4 is best suited for warehouse, retail, or office deployments in the 8–16 camera range where 7–14 day retention is acceptable and ONVIF VMS integration is either not required or already committed. Avoid this kit if the customer has strong remote monitoring requirements (bandwidth-constrained sites) or needs more than 14 days of searchable archive without external storage infrastructure.
