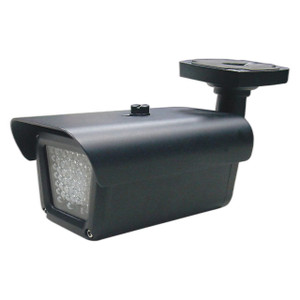

Speco Technologies IR80 IR Illuminator
Overview
The Speco Technologies IR80 is a dual-voltage infrared illuminator designed to extend night vision capability for surveillance cameras in security deployments. Operating on both AC and DC power, the IR80 delivers consistent illumination across an 80-degree beam angle with an effective range of 147 feet. IP66-rated construction ensures reliable outdoor and weathered indoor installations where moisture and dust protection is required. With 55 infrared emitters providing uniform light distribution, the IR80 supports 24/7 surveillance operations in low-light and no-light environments. Whether paired with traditional IP cameras or analog surveillance systems, the IR80 integrates without requiring firmware updates or special configuration.
Key Features
- 147-Foot Effective Range: Extended infrared illumination distance means you can monitor large perimeters, parking areas, and building exteriors without requiring multiple illuminators per camera. Most building façades and parking lot edges fall comfortably within this range, reducing total system cost.
- 80-Degree Beam Angle: Wide coverage pattern minimizes the need for multiple illuminators when covering a single camera's field of view. This directly translates to lower installation labor and fewer power connections to manage.
- 55 Infrared Emitters: The distributed LED array delivers uniform, flicker-free IR output optimized for camera sensors. No hot spots or dark zones means consistent image quality across the entire coverage area, eliminating the need for post-install exposure compensation.
- Dual Voltage AC/DC Power: Flexible 12V DC and AC mains connectivity simplifies retrofit and new deployments. DC operation allows direct connection to 12V camera power supplies or PoE injectors; AC operation supports hardwired installations to standard outlets. This flexibility eliminates the need to source specialized power adapters for mixed-infrastructure sites.
- IP66 Weather Rating: Sealed enclosure protects against direct water jets and dust ingress, enabling reliable operation in rain, fog, and dusty industrial environments. IP66 means no additional weatherproofing shrouds are required for exposed outdoor mounting, though integrators remain responsible for cable termination and connector protection.
- 850nm Infrared Output: Wavelength is optimized for camera sensors and remains invisible to human observers, enabling covert surveillance without alerting subjects to monitoring activity. This is the standard wavelength across modern camera designs, ensuring compatibility with virtually any infrared-capable sensor.
Integration & Compatibility
The IR80 integrates with any network or analog camera equipped with infrared-sensitive sensors. No special configuration, firmware updates, or integration software is required—the illuminator functions as a passive optical component that needs only power and mounting hardware. Typical deployment includes wall or ceiling mounting adjacent to the camera lens or as a standalone fixture within the 80-degree coverage zone. DC voltage operation directly from 12V camera power supplies or PoE injectors simplifies wiring in cramped installations; AC operation supports hardwired deployments to standard mains circuits. For planning guidance on storage and retention across your surveillance infrastructure, reference your camera's native sensitivity specification (typically 0.01 lux vs. 0.1 lux) to confirm adequate IR performance at maximum range.
What's in the Box
Each unit includes the IR80 illuminator assembly with integrated power connector and mounting hardware suitable for standard wall or ceiling installation brackets.
Frequently Asked Questions
Q: What is the maximum effective range of the IR80?
A: The IR80 delivers effective illumination to 147 feet. Actual performance depends on camera sensor sensitivity; systems with 0.01 lux minimum illumination will perform at the full rated distance, while cameras rated at 0.1 lux may require closer mounting for optimal image quality.
Q: Can I power the IR80 from my PoE camera power supply?
A: Yes. The IR80 accepts 12V DC input, so it can connect directly to a standard 12V camera power supply or via a PoE injector's DC output. No additional power supply is required if your installation already includes 12V DC infrastructure.
Q: Is the IR80 suitable for outdoor mounting?
A: Yes. IP66 rating provides protection against direct rain jets and dust ingress, making it suitable for exposed outdoor wall or ceiling mounting. Integrators should still manage cable terminations and connector weatherproofing according to local electrical codes.
Q: What beam angle does the IR80 provide?
A: The IR80 projects an 80-degree beam angle, which covers a wide field of view suitable for most single-camera deployments without creating dark zones or hot spots.
Q: Will the IR80 work with analog surveillance cameras?
A: Yes. The IR80 is a passive optical component that works with any camera (IP or analog) equipped with an infrared-sensitive sensor. No special integration is required.
Q: Does the IR light from the IR80 remain invisible to human observers?
A: Yes. The 850nm wavelength is outside the human visible light spectrum, making the illumination invisible to people. This enables covert surveillance operations without alerting subjects to camera presence.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've specified the Speco IR80 on several perimeter security projects where client budgets required cost-effective night vision without upgrading to thermal or specialized low-light cameras. The dual-voltage design proved particularly valuable in mixed-infrastructure sites—DC power for camera-adjacent deployments, AC mains for standalone mounting where camera power supplies weren't nearby. On a recent warehouse expansion, the 147-foot range handled the entire south façade and loading dock area with a single illuminator paired to an existing fixed camera, avoiding the labor and expense of adding a second fixture.
Technical Highlights:
- 147-Foot Effective Range + 80° Beam Angle: Covers most building exteriors and perimeter zones in a single footprint. Confirm your camera's minimum illumination spec (0.01 lux vs. 0.1 lux) upfront—it directly determines whether you'll achieve rated range or need closer mounting.
- 55 Distributed IR Emitters: Uniform output across the entire beam eliminates hot spotting and dark zones. This matters for large-area surveillance where exposure compensation on the camera side becomes tedious or impossible.
- Dual Voltage (12V DC + AC Mains): Flexibility that simplifies mixed deployments. I've paired IR80 units to PoE injectors on existing camera circuits, eliminating the need to run new AC lines to remote mounting locations.
Deployment Considerations:
- IP66 protects the illuminator itself, but cable terminations and connector sealing remain the integrator's responsibility. Plan for outdoor-rated conduit and weatherproof junction boxes per your local electrical code.
- The 147-foot range assumes optimal camera sensor sensitivity (0.01 lux). Cameras with higher minimum illumination (0.1 lux or worse) will require closer mounting to achieve the same usable image quality—measure twice, mount once.
- Mounting hardware is basic—assume you're providing adjustable wall/ceiling brackets or pole clamps. Budget for positioning to align IR coverage with your camera's actual field of view, not just proximity.
The IR80 is the right choice for fixed-camera perimeter coverage where budget and existing power infrastructure constrain thermal or specialty sensor upgrades. It's also defensible on retrofit projects where running new AC circuits isn't practical. Where you need multi-angle coverage or rapid PTZ repositioning, a dedicated illuminator-ready outdoor camera may prove simpler; where you're locked into existing non-IR cameras and tight timelines, the IR80 delivers legitimate value.
