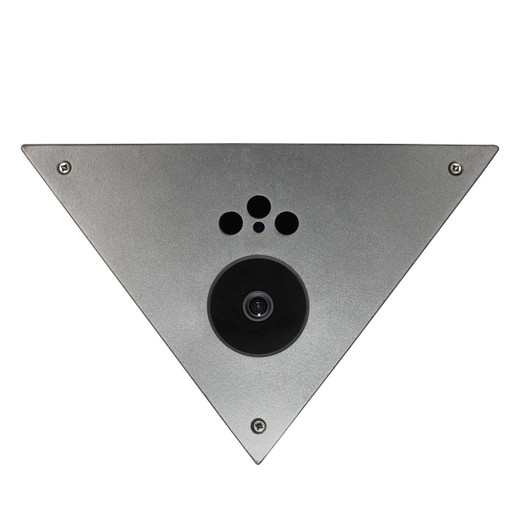

Speco Technologies CVC605CMT5 5MP HD-TVI Corner Mount Camera
Overview
The Speco CVC605CMT5 is a fixed 5MP HD-TVI camera purpose-built for corner-mount surveillance installations where durability and consistent image quality across lighting conditions matter. Stainless steel construction and a wide operating temperature range (-22°F to 140°F) mean this camera handles outdoor and indoor industrial environments without flinching. The 3.6mm fixed lens delivers a standard horizontal field of view suitable for general perimeter and facility monitoring. If you're integrating into existing HD-TVI infrastructure, this model slots in without requiring format conversion or protocol translation.
Key Features
- 5MP Resolution (2688×1944): Captures detail sufficient for facial recognition at 8–10 feet and license plate read at 20+ feet under daylight. Real-world gain over 2MP or 4MP: readable event evidence without excessive storage cost when recording 24/7 across multiple cameras.
- 3.6mm Fixed Lens: Provides approximately 87° horizontal field of view — a sensible middle ground for hallways, warehouse aisles, and building entrances where you want coverage without barrel distortion or blind spots.
- Day/Night with WDR: Wide Dynamic Range processing handles backlit scenes (sunny outdoor loading docks, bright warehouse skylights) without washing out shadow detail. Infrared cut-off filter transitions automatically at dusk. Benefit: no separate IR or visible-light camera needed for mixed lighting environments.
- Stainless Steel Housing: Resists corrosion in salt-air or humid industrial settings — meaningful if the camera is near coastal facilities, food processing plants, or outdoor loading areas where painted steel fails within 2–3 years.
- DC 12V Power (AC/DC Compatible): Draws moderate current; verify your power supply sizing. DC input simplifies long cable runs without PoE infrastructure investment, but lacks the single-cable convenience of PoE cameras. Choose this if existing 12V circuits already reach the mounting location.
- Corner Mount Form Factor: Compact profile fits into tight architectural spaces — suspended ceilings, junction boxes, eaves — where conventional domes or bullets won't fit. Integrates visually into corner installations without protruding fixtures.
Integration & Compatibility
The CVC605CMT5 outputs HD-TVI video signal, compatible with HD-TVI DVRs and hybrid recorders from video recorder vendors that support the format. Before ordering, confirm your intended DVR or NVR accepts HD-TVI (not all hybrid systems do — some mandate IP or analog exclusively). Coax cable runs to the recorder are standard; no network configuration required. If you're migrating from analog CCTV infrastructure and own existing HD-TVI hardware, this camera integrates without platform replacement.
When to Choose a Different Model
If your application requires IP-based network video recording or remote viewing via smartphone, select an IP variant instead — HD-TVI is hardwired and local-DVR dependent. For indoor temperature-controlled facilities where -22°F operation is unnecessary, a lower-cost 5MP IP camera may deliver better ROI. If the mounting location lacks nearby 12V power and cannot accommodate coax runs longer than 300 feet, evaluate PoE IP models with wireless mesh backup.
Deployment Fit
The CVC605CMT5 excels in retrofit or new-build scenarios where corner ceiling mount is required, existing DVR infrastructure uses HD-TVI, and the facility spans temperature extremes (cold storage, unheated outdoor shelters, industrial manufacturing floors). It is not suitable for cloud-centric or purely IP-based architectures. Pair with a video recorder sizing guide to calculate storage retention based on 5MP frame rate and compression codec support in your DVR.
Frequently Asked Questions
Q: Does the CVC605CMT5 work with IP-based video management software?
A: No. The CVC605CMT5 is HD-TVI (coax-based analog) only. It requires an HD-TVI DVR or hybrid recorder with HD-TVI input cards. It cannot connect directly to an IP network or VMS. If you need IP compatibility, select an IP camera variant instead.
Q: What is the maximum coax cable run length?
A: HD-TVI typically supports 300–400 feet of standard RG-59 or RG-6 coax without signal amplifiers. Beyond that, expect picture degradation. If your DVR location exceeds 400 feet from the camera, use a coax balun with amplification or switch to IP cameras with longer transmission range.
Q: Can I power the CVC605CMT5 with 24V AC instead of 12V DC?
A: The specification lists AC/DC input, but confirmation of specific voltage support (12V, 24V AC, or both) requires the manufacturer datasheet. Contact your DVR or power supply vendor to verify compatibility before installation.
Q: Is infrared (night vision) included, or do I need an external IR light?
A: The product specifications confirm "Night Vision: Yes," which indicates built-in IR illumination. External IR supplementation may be needed in extremely dark conditions (zero ambient light, greater than ~20 feet distance), but day/night operation is native.
Q: What is the warranty on the CVC605CMT5?
A: Warranty information is not provided in the available product specifications. Contact the manufacturer or specialty distributor for warranty terms and coverage duration.
Q: Does the CVC605CMT5 support WDR adjustment or configuration?
A: Wide Dynamic Range is listed as a feature. Adjustment capability depends on your DVR's menu system and firmware support for WDR parameter tuning. Consult your DVR manual or the Speco camera integration guide for WDR control options.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The CVC605CMT5 is a straightforward choice if you're locked into HD-TVI infrastructure and need a rugged 5MP camera for corner or eave mounting. The stainless steel construction and -22°F to 140°F operating range remove thermal and corrosion headaches common to painted aluminum or plastic housings in harsh industrial or coastal environments. The 3.6mm lens is not a wide-angle option—it's a deliberate middle ground between narrow (8mm) and ultra-wide (2.8mm), which means you'll get cleaner detail at moderate distances without field-of-view compromise.
Technical Highlights:
- 5MP at 2688×1944: Delivers approximately 2.5x the pixel density of 2MP and matches or exceeds 4MP in practical evidence value. Real-world benefit: license plates become readable at 20+ feet, faces recognizable at 8–10 feet, even in backlit scenes when WDR is active.
- Stainless Steel Housing: Corrosion resistance extends service life 4–5 years beyond painted aluminum in salt-air or high-humidity zones. Cost premium is justified in coastal warehouses, food plants, or outdoor vehicle bays where rust-through is a recurring maintenance problem.
- Day/Night with WDR: Automatic IR cut-off and wide dynamic range processing mean one camera handles mixed lighting—bright loading docks next to shadowed storage areas—without separate IR arrays or visible-light backups. Reduces BoM and wiring complexity.
Deployment Considerations:
- HD-TVI Dependency: This camera mandates HD-TVI DVR input. If your facility is migrating to IP-based NVRs or cloud VMS, the CVC605CMT5 becomes a compatibility liability. Confirm DVR support before order.
- Power Run Length Limitation: 12V DC runs longer than 100 feet experience voltage drop unless you upsize the power conductor. If the camera location is far from the DVR or power supply, factor in step-up or express power circuits — or pivot to PoE IP cameras, which tolerate longer cable runs with integrated power and video on a single pair.
- Fixed Lens Commitment: The 3.6mm lens is permanent; there is no varifocal or motorized option. If your coverage requirement shifts after installation, you must unmount and swap the entire camera. Plan the field of view carefully during site survey.
The CVC605CMT5 fits brownfield HD-TVI retrofits and new industrial builds where thermal stability and corrosion resistance outweigh IP integration. Not a platform move—it's a consolidation choice for mature coax infrastructure. Best suited for facilities with stable facility layouts and no plans to migrate to network video in the next 3–5 years.
