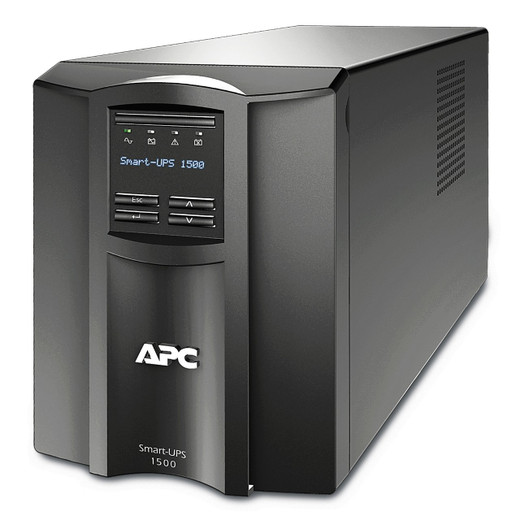

APC by Schneider Electric SMT1500IC 1500VA Line-Interactive Tower UPS
Overview
The APC Smart-UPS SMT1500IC is a 1500VA / 1000W line-interactive tower UPS designed for 230V environments where protecting sensitive network, security, and IT equipment from power fluctuations is non-negotiable. Its true sine wave output and automatic voltage regulation keep connected devices running cleanly whether mains power is nominal or degraded — no battery switching required for voltage corrections. If you're specifying UPS protection for NVRs, servers, PoE switches, or access control panels in a single-rack or comms-room installation, the SMT1500IC is sized and featured for that workload.
The SmartConnect embedded card adds cloud-based monitoring without purchasing a separate network management card — a practical differentiator for multi-site deployments where a local IT team isn't always on-site. Browse the full APC by Schneider Electric UPS lineup to compare models in the Smart-UPS family.
Key Features
- 1500VA / 1000W Output Capacity: At a 0.67 power factor, this unit covers real-world loads accurately — budget your connected equipment at 1000W true watts, not the inflated VA number. That covers a typical NVR with six to eight drives, a PoE switch, and associated network gear comfortably within one UPS.
- True Sine Wave Output: Active PFC power supplies (common in modern servers, NVRs, and managed switches) require a sine wave UPS to operate correctly and safely. Stepped-approximation waveforms from cheaper line-interactive units can trip PFC supplies into fault mode. The SMT1500IC delivers a genuine sine wave on battery — not just on mains — so your load won't even notice the transition.
- Automatic Voltage Regulation (AVR), 151–302V Input Range: The SMT1500IC corrects input voltages from 151V all the way up to 302V without touching the battery. For sites with notoriously unstable mains — industrial facilities, older buildings, regions with high line variance — this wide window means the battery lasts years longer because it isn't cycling through minor brownouts and surges. Explore line-interactive UPS options for coverage comparisons.
- 459J Surge Energy Rating: Surge protection rated at 459 joules handles typical transient spikes without degradation. For comparison: a direct lightning strike on a nearby utility line can exceed this — if you're in a high-lightning environment, add a dedicated SPD upstream. For standard commercial brownout and switching transients, 459J is adequate.
- Output Voltage THD ≤5%: Total harmonic distortion held under 5% on the output means connected equipment sees clean power — important for VoIP gateways, access control panels with sensitive DSPs, and any load that specifies <5% THD in its power requirements.
- SmartConnect / Web-Based Management: Built-in cloud connectivity lets you monitor battery health, load percentage, estimated runtime, and event logs from a browser or the EcoStruxure IT mobile app — no separate NMC purchase required. Pair this with managed PoE switches and you have a fully remotely-visible infrastructure stack.
- Three Audible Alarm Modes: Alarms trigger on battery transfer, low battery threshold, and overload — giving on-site staff immediate audio notification without requiring them to watch a dashboard. The alarm can be silenced via the LCD panel during planned maintenance windows.
- 45 dB Noise Floor: At 45 dB, the SMT1500IC is quiet enough for office-adjacent comms closets and front-desk security stations. It's not silent, but it won't dominate a small server room either.
- 50/60 Hz Input and Output: Compatible with both 50 Hz (EU/AU/standard 230V markets) and 60 Hz grid infrastructure, making this a usable specification across mixed international deployments without model substitution.
Integration & Compatibility
The SMT1500IC is designed for 230V single-phase environments. Output voltage is regulated between 220V and 240V regardless of input variance — useful in markets where nominal 230V can drift to 240V or sag to 220V without triggering a service call. Input accepts 151V to 302V, which covers virtually every brown-out and surge condition seen in commercial 230V installations.
Web-based management integrates with APC's EcoStruxure IT platform for fleet-level UPS monitoring. For local management, a USB port supports direct connection to APC PowerChute software for graceful OS shutdown scripting — critical on NVR workloads where abrupt power-off can corrupt video databases. If you're running a network video recorder on this UPS, configure PowerChute to initiate a clean shutdown with at least 90 seconds of buffer before estimated battery exhaustion.
The IEC C13/C14 outlet configuration (8 outlets per the product name) suits standard 230V IT equipment. Verify your NVR and switch power cord ends before installing — IEC C13 receptacles are universal for rack and tower IT gear but occasionally mismatched on consumer-grade equipment brought into commercial installations.
Frequently Asked Questions
Q: Does the SMT1500IC output a true sine wave on battery, or a simulated sine wave?
A: The SMT1500IC produces a true sine wave output on battery. This is essential for loads with active PFC power supplies — including most modern NVRs, servers, and managed switches — which can malfunction or shut down when fed a stepped or simulated waveform from cheaper line-interactive units.
Q: What is the input voltage range the SMT1500IC can accept without switching to battery?
A: The AVR circuit handles input voltages from 151V to 302V without battery involvement. This wide operating window is particularly useful in installations with unstable mains, extending battery service life by reducing unnecessary charge-discharge cycles.
Q: Is SmartConnect included, or does it require a separate network management card?
A: SmartConnect is built into the SMT1500IC — no add-on NMC is required. It provides cloud-based monitoring of load, battery health, runtime estimates, and event history through APC's EcoStruxure IT platform and mobile app.
Q: What is the actual watt capacity, and how does that differ from the VA rating?
A: The SMT1500IC delivers 1000W of real power against its 1500VA apparent power rating, yielding a 0.67 power factor. Size your connected load against the 1000W figure — that is the true energy budget. The VA rating alone will overstate available capacity for resistive and mixed loads.
Q: What alarm conditions does the SMT1500IC signal audibly?
A: Three alarm modes are active: transfer to battery, low battery warning, and overload condition. Each triggers a distinct audible alarm to alert on-site personnel without requiring active dashboard monitoring.
Q: Can the SMT1500IC be used in a 50 Hz and 60 Hz country?
A: Yes. Both input and output support 50/60 Hz operation, making the unit compatible with grid infrastructure across Europe, Australia, Asia-Pacific, and other 230V/50Hz or 60Hz markets without model substitution.
The spec that matters most when specifying the SMT1500IC is the 151–302V AVR input window. I've seen installations where integrators spec a UPS purely on VA rating, install it in a building with chronic low-voltage events at 160–170V, and then wonder why their batteries are failing at 18 months instead of three-plus years. The SMT1500IC absorbs that entire voltage band through its AVR transformer — battery never touches it. That's the right way to protect a persistent recorder or access control head-end in a facility with aging electrical infrastructure.
Technical Highlights:
- True Sine Wave on Battery: Modern NVR power supplies with active PFC correction demand sine wave input — a stepped approximation will trip them into protection mode mid-transfer. The SMT1500IC's sine output means zero visible impact on connected recorders during a utility event.
- 1000W Real Power / 0.67 PF: Size your load budget to 1000W, not 1500VA. A typical 8-channel NVR with two surveillance drives plus a 24-port PoE switch draws roughly 300–450W combined — this unit covers that with meaningful overhead for runtime extension.
- 459J Surge Rating + AVR: Surge protection and voltage regulation work in tandem. AVR handles sustained over/under-voltage continuously; the 459J surge element handles fast transients. Together they address the full spectrum of power quality events short of a direct lightning strike.
Deployment Considerations:
- Connect the NVR to the UPS before commissioning PowerChute or EcoStruxure shutdown scripting — you need the USB communication link established so the software can detect battery state and trigger graceful shutdown before the 45 dB alarm becomes the only warning your recorder gets.
- The 8 IEC C13 outlets are the right fit for rack-style IT gear on a tower UPS, but verify that your NVR and switch ship with IEC C13 power cords — some lower-cost appliances include proprietary or regionally adapted cords that require an adapter.
The SMT1500IC is the right call for a single-rack security head-end in a commercial building: comms closet, small server room, or dedicated surveillance equipment room where mains quality is uncertain and remote monitoring via SmartConnect eliminates the need for a dedicated network management card purchase.
