Comnet FDX60M1AM RS232/422/485 Fiber Optic Data Transceiver

Overview

The Comnet FDX60M1AM is a small-form fiber optic transceiver that extends RS232, RS422, or 2/4-wire RS485 data signals over single fiber at distances up to 69 km (singlemode) or 4 km (multimode). It converts copper serial protocols to optical and back — solving the problem of long-distance RS data transport in environments where electrical isolation and noise immunity matter (industrial networks, CCTV systems with remote PTZ or device control, distributed security installations). The FDX60M1AM operates full-duplex or simplex, handles data rates to 250 kbps, and works bidirectionally, meaning the same fiber carries both transmit and receive signals. Common deployment: remote camera sites that need PTZ control or sensor readback over fiber without running separate copper control cables or dealing with ground loops.

Compatibility

This transceiver is protocol-agnostic — it passes any RS232, RS422, or RS485 signal, so it integrates with PTZ controllers, NVR/DVR serial interfaces, access control systems, industrial sensors, and any device with standard serial ports. It pairs with any fiber backbone that supports ST connectors and multimode or singlemode fiber. The recommended PSU is the Comnet PS-A12060, which supplies the required 9–30 VDC input. If your installation already has a fiber infrastructure (structured fiber runs, patch panels, existing singlemode or multimode plant), the FDX60M1AM drops into that environment without protocol translation — it is a transparent carrier.

Installation Notes

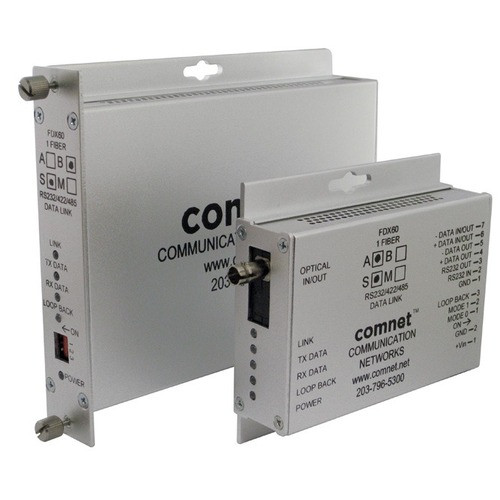

Operates over -40 to +75°C, so it suits outdoor fiber cabinets and unheated equipment enclosures. Power draw is 2 W, making it efficient for remote-powered sites. ST connectors are industry standard; ensure your fiber jumpers and terminations are factory-tested. Multimode fiber reaches 4 km with 16 dB optical loss budget; singlemode extends to 69 km with 23 dB budget. Bit error rate is <10⁻⁹ at maximum loss, meaning nearly error-free data transmission under nominal conditions. Available in two chassis sizes: Mini (4.1 × 3.7 × 1.1 in) and ComFit (6.1 × 5.3 × 1.1 in, occupies 1 rack slot) — choose Mini for remote cabinets, ComFit for central racks. MTBF >100,000 hours supports 24/7 surveillance duty cycles.
