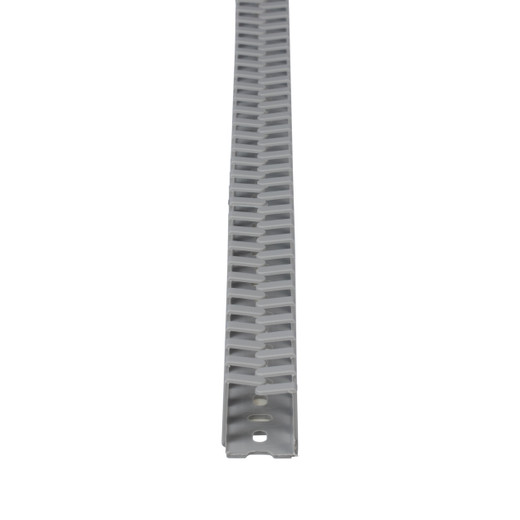

Panduit FL25X25LG-AV Adhesive Flexible Wire Duct

Panduit FL25X25LG-AV Panduct Flexible Wiring Duct

The Panduit FL25X25LG-AV is a 25mm × 25mm flexible polypropylene wiring duct designed for control panels, enclosures, and hinge-mounted doors where rigid duct won't flex. Its one-piece slotted sidewall with open finger design lets you add or remove wires after termination without tools—critical for modifications or troubleshooting in tight spaces. The high-bond acrylic adhesive backing eliminates screw holes on finished surfaces or areas where drilling isn't an option. Each 19.7" (500mm) section ships 70 per package, UL 94 V-2 flame rated, and BABA compliant for federally funded projects.

Key Features

• Flexible polypropylene construction bends around hinges and tight routing paths
• Open finger design—snap wires in/out after termination without disassembly
• High-bond acrylic adhesive option for tool-free mounting on doors and panels
• 25mm × 25mm (0.98" × 0.98") cross-section handles bundled low-voltage cabling
• UL 94 V-2 flame rating meets electrical enclosure fire safety standards
• 19.7" (500mm) sections cut to custom lengths without special tooling
• Light gray color blends with standard control panel interiors
• RoHS, CE, UL Recognized, and BABA compliant for federal/state projects

Panduit's Panduct FL25X25LG-AV uses extruded polypropylene with engineered flex points that maintain shape memory while tolerating repeated bending—essential for control panel doors that open 50+ times during commissioning. The open finger design features evenly spaced slots along both sidewalls; each finger deflects independently, so you can press cables into the channel or pull them out laterally without removing covers or end caps (there are none). The high-bond acrylic adhesive layer bonds to powder-coated steel, painted aluminum, and smooth plastics; peel-and-stick installation takes seconds and holds through vibration and temperature cycling from 0–60°C. The 25mm × 25mm cross-section provides 475mm² of usable fill area—enough for 15–20 Cat6 cables or a mix of 18 AWG control wiring, shielded pairs, and small coax bundles. The UL 94 V-2 flammability rating means the material self-extinguishes within 30 seconds of flame removal and produces no flaming drips, meeting NEC and UL 508A enclosure wire management requirements.

Commercial integrators use the FL25X25LG-AV in three recurring scenarios: hinge-side routing on enclosure doors (access control panels, elevator controllers, HVAC integration cabinets), adhesive-mount runs on smooth stainless or glass equipment fronts where drilling voids warranties, and flexible transitions between fixed raceways and movable components (articulating camera mounts, sliding rack shelves). The 19.7" stick length is deliberate—it's short enough to flex around 180° bends without kinking yet long enough to span most door heights in a single run when stacked vertically. Because the duct is one continuous piece with no snap-on covers, there's nothing to lose during service calls and no cover clips to break after repeated openings. The 70-piece package quantity supports panel shop runs; a typical 42U network rack door takes 4 sticks per side (8 total per door) plus spares for field modifications. Light gray matches the RAL 7035 color spec common in European-style enclosures (Rittal, Hoffman, Hammond), so mixed installations don't create a color-patched look.

The FL25X25LG-AV's RoHS compliance and CE marking clear it for installations in EU markets and U.S. projects with environmental procurement policies. BABA compliance (Buy American, Build American Act) makes it eligible for DOT, GSA, and federally funded infrastructure projects where domestic content requirements disqualify offshore duct alternatives. The adhesive-mount option specifically addresses the panel builder's dilemma: routing cables on a door without creating leak paths or sharp edges from drilled holes. For control integrators managing mixed low-voltage bundles in tight spaces—or any install where "flexible" and "adhesive-mount" solve a routing problem rigid duct can't—the FL25X25LG-AV delivers a UL-recognized, tool-free solution that stays put and bends where you need it.
