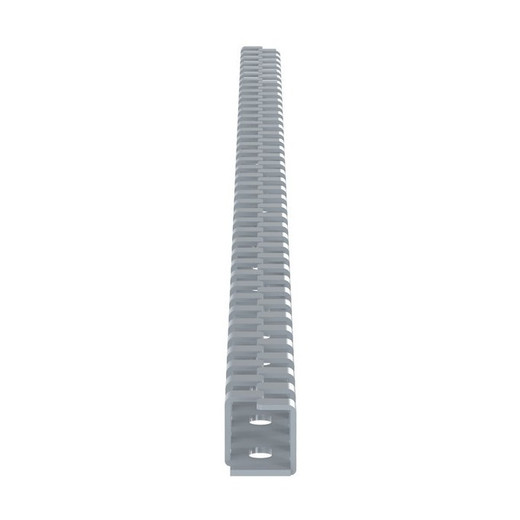

Panduit FL12X12LG Panduct® Flexible Wiring Duct

The Panduit FL12X12LG is a flexible polypropylene wiring duct designed for retrofit installations and tight-space cable management where rigid duct won't fit or where you need to add or remove conductors after initial termination. Its one-piece slotted sidewall and open finger design let you route wires through the 0.49" × 0.49" (12.5 mm × 12.5 mm) channel without special tooling, cutting labor time on service calls and panel modifications. Sold in 112-piece packages with 19.7" (500 mm) sections that flex to follow bends and offsets in enclosures, control panels, and junction boxes.

Key Features

0.49" × 0.49" (12.5 mm × 12.5 mm) channel cross-section for small-gauge control wiring and low-voltage conductors

Flexible polypropylene construction bends to follow panel contours and offsets without cutting or fabricating rigid sections

Open finger, slotted sidewall design allows wire insertion and removal after termination—no disassembly or special tools required

19.7" (500 mm) section length provides manageable segments for panel retrofits and tight enclosures

UL 94 V-2 flammability rating meets fire-safety requirements for industrial control panels and electrical enclosures

Light gray color integrates with standard control-panel aesthetics and maintains visibility for inspection

RoHS, UL Recognized, CE, and BABA compliant for government, export, and regulated installations

112 pieces per package supply multi-panel projects or stock for ongoing service and retrofit work

When you're retrofitting an existing control panel or working inside a tight enclosure where rigid duct can't route around obstacles, the FL12X12LG's flexible polypropylene body solves the problem. The material holds its shape under normal handling but bends easily around corners, breakers, and terminal blocks, letting you follow the natural wire path instead of forcing conductors into hard angles. The open-finger sidewall slots let you snap wires in or pull them out at any point along the run—critical when you need to add a circuit to a commissioned panel without de-terminating existing connections. Unlike solid-wall duct that requires cover removal and end-feeding, the FL12X12LG's slotted design means you can service individual conductors mid-run, reducing downtime on troubleshooting and modifications.

The 0.49" × 0.49" interior dimension is sized for small-gauge control wiring—think 22–18 AWG signal pairs, 16 AWG discrete I/O, and low-voltage power feeds to relays, sensors, and terminal blocks. The 19.7" section length is short enough to maneuver in crowded panels but long enough to span typical DIN-rail runs and breaker rows without excessive joints. The polypropylene material resists oils, coolants, and cleaning solvents common in industrial environments, and the UL 94 V-2 flammability rating satisfies fire-safety inspection requirements for UL 508A panel builds and NEC installations. Light gray color matches standard enclosure interiors and provides contrast against conductors for visual inspection and troubleshooting.

RoHS, UL Recognized, CE, and BABA compliance cover federal procurement (Buy American), international export, and regulated industrial markets. The 112-piece package quantity supports multi-panel projects—control system integrators, machine builders, and data-center contractors stocking for ongoing retrofit and service work. For installations requiring flexibility, retrofit-friendly wire access, and compliance with fire and procurement standards, the FL12X12LG delivers the toolless serviceability and bend radius that rigid duct can't match.
