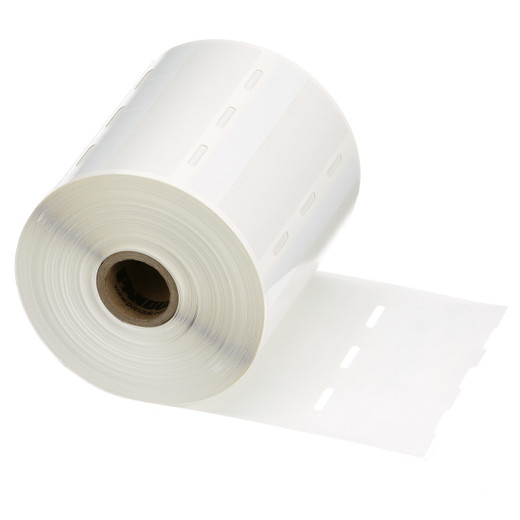

Panduit S100X225VA1Y Self-Laminating Vinyl Cable Labels
The Panduit S100X225VA1Y delivers professional-grade wire and cable identification for commercial security, data center, and structured cabling installations. Each self-laminating label combines a 0.75" white printable zone with a clear protective overlaminate that wraps and seals the legend, guarding against abrasion, solvents, and UV exposure in cable trays, above ceilings, and outdoor-rated enclosures. Thermal-transfer compatible for sharp, permanent bar codes and alphanumerics. Sized at 2.25" × 1" for AWG 6 through 1/0 cable jackets and large patch cords. Ships in 1,500-label rolls that drop into Panduit TDP-series printers or Brady/DYMO industrial units, cutting pre-job prep time and eliminating handwritten tags on access-control trunk runs and surveillance backbone infrastructure.
Key Features
- 2.25" × 1" self-laminating label with 0.75" printable area and clear overlaminate tail for full-wrap cable protection
- Vinyl substrate rated to 65°C (150°F) for plenum spaces, rooftop J-boxes, and IDF/MDF environments
- Thermal-transfer printable—supports bar codes, QR codes, and alphanumeric legends at up to 300 dpi
- UL 969 Recognized and cUL listed (File MH14979) for permanent adhesive marking per NEC and TIA standards
- 1,500 labels per roll on 1" cores—compatible with Panduit TDP, Brady, and DYMO industrial printers
- Clear overlaminate wraps 360° to protect printed text from cable pulling, UV, and chemical exposure
Built on a conformable vinyl carrier, the S100X225VA1Y label adheres permanently to PVC, PE, LSZH, and plenum-rated cable jackets without flagging or lifting during installation pulls. The white printable zone accepts wax, wax-resin, or resin thermal-transfer ribbons at print speeds up to 4 ips, producing legends with 300 dpi resolution that remain legible through decades of service. Once printed, the clear tail section wraps over the legend and bonds to itself, creating a sealed laminate that resists hydraulic fluids, isopropyl alcohol, and UV degradation in outdoor-rated enclosures. Temperature performance spans -40°F to 150°F, satisfying both indoor plenum and NEMA 4X junction-box deployments. The 1" core diameter fits standard label spindles in Panduit's TDP43ME, TDP43H, and legacy MP100 printers, as well as third-party thermal printers using 1" core adapters. RoHS-compliant construction eliminates restricted substances for projects requiring EU Directive 2011/65/EU documentation.
Security integrators use the S100X225VA1Y to label trunk cables in access-control risers, PoE home runs feeding IP cameras, and fiber-to-copper media converter interconnects where traceability prevents costly troubleshooting calls. The 2.25" length wraps fully around AWG 6 and 4 gauge power conductors in UPS battery strings, while the 0.75" print zone accommodates job numbers, circuit IDs, and asset tags in 8-12 pt fonts. Data center and IDF deployments benefit from the overlaminate's abrasion resistance during high-density patch-cord moves and changes—labels stay bonded and readable even after repeated handling. Rolling 1,500-label spools into job-site printers eliminates the batch-and-apply workflow of sheet-fed systems, letting technicians print on demand as cables land. Cross-compatible with Brady B33-75-417 and HellermannTyton THT-75-427 labels for mixed-vendor installations.
UL 969 and cUL recognition under file MH14979 confirms adhesive permanence and flammability performance for NEC Article 310 and 770 cable marking requirements, critical for AHJ inspections on municipal, healthcare, and federal projects. The vinyl substrate and acrylic adhesive system meet TIA-606-C administration standards for long-term label retention, ensuring asset tracking and MAC workflows remain intact through facility lifecycle. Panduit's die-cut precision maintains consistent 1" label width across all 1,500 units, eliminating printer jams and edge-peel failures common in economy-grade label stock.
