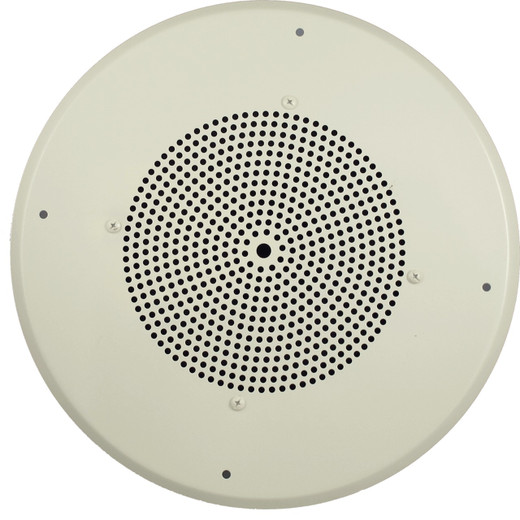

Viking Self-Amplified Paging System IR Ceiling Speaker - SA-1S

Viking Electronics SA-1S Self-Amplified IR Ceiling Paging Speaker

Overview

The Viking Electronics SA-1S is an 8-inch overhead paging ceiling speaker with a built-in 1.5-watt power amplifier, an integrated infrared remote control detector, and a 2-wire SA Series interface — giving you a complete, self-contained paging endpoint that runs on the same two conductors that carry the audio signal. If you're building or expanding a commercial paging system and want to avoid pulling separate power runs to each speaker location, the SA-1S is the model to evaluate first.

Unlike passive speakers that require a central amplifier rack, the SA-1S (often searched as SA 1S) puts the amplification at the ceiling. That shifts complexity away from the head-end and simplifies zone wiring considerably, particularly in retrofits where conduit routing to a central amp closet isn't practical.

Key Features

• 8-Inch Speaker Cone: The larger cone diameter gives you better low-frequency reproduction down to 150Hz — meaningful in commercial spaces where voice paging over HVAC noise is the primary use case. A 4- or 6-inch driver rolls off faster, making speech intelligibility harder to maintain at distance.
• 1.5-Watt Built-In Power Amplifier: Amplification is local at the speaker, not centralized. This means each SA-1S draws its power and audio from the 2-wire SA Series bus (40VDC + audio), eliminating per-speaker home runs to a rack amplifier. In a 25-speaker installation driven by a Viking SA-25 controller, you're running one bus, not 25 individual amplifier channels.
• SA Series 2-Wire Protocol (40VDC + Audio): The SA-1S operates on Viking's SA Series 2-wire architecture. Both DC power and the audio signal ride a single pair, which cuts wiring material cost and labor time compared to systems requiring separate power and signal conductors. Verify your controller supports SA Series before specifying.
• Infrared Remote Volume Control: The integrated IR detector accepts commands from the Viking SA-IR transmitter, letting facility staff adjust individual speaker volume without ladder access or software. In a cafeteria or lobby where ambient noise levels change throughout the day, this is a practical operational advantage — no IT ticket required to turn a speaker up or down.
• Frequency Response 150Hz–5kHz: This range is tuned for voice intelligibility rather than music reproduction. If your application is paging announcements, emergency notifications, or background instruction audio, this response curve is appropriate. If you need broadband music playback, a wider-response speaker is the correct choice.
• Compact Ceiling Form Factor (12.75" × 3.75"): At 324mm × 95mm, the SA-1S fits standard commercial ceiling tile grids without custom cutouts. The low-profile 3.75-inch depth keeps the speaker above the ceiling plane with room for standard plenum wiring.
• Operating Temperature 32°F–90°F (0°C–32°C): This is a conditioned-space speaker. The upper thermal limit of 32°C (90°F) means the SA-1S is not rated for unconditioned warehouses, loading docks, or attic spaces where summer temperatures routinely exceed that ceiling. Specify an appropriate rated speaker for those environments.
• Operating Humidity 5%–95% Non-Condensing: Suitable for typical office, retail, and commercial indoor environments. Not rated for food-service wash-down areas or high-moisture environments without additional enclosure protection.
• 3 lb Shipping Weight: Lightweight enough for single-person ceiling installation without additional support hardware in standard drop-ceiling grid configurations.

Integration & Compatibility

The SA-1S is designed to integrate directly with Viking Electronics SA Series paging infrastructure. The SA-25 controller can drive up to 25 SA-1S speakers from a single unit — a straightforward scaling path for small-to-medium commercial deployments. Volume control requires the Viking SA-IR infrared transmitter (sold separately); the integrated IR detector on the SA-1S is passive without that paired transmitter.

For larger deployments or multi-zone overhead paging systems, confirm controller channel count and bus loading before finalizing speaker counts. The 2-wire SA Series protocol is Viking-proprietary — the SA-1S is not compatible with generic 70V/100V distributed audio systems or third-party 2-wire protocols. Plan your commercial paging system around Viking SA Series components end to end for guaranteed compatibility.

If you're pairing this speaker with a access control or intercom system that requires paging integration, verify the head-end controller supports SA Series output before purchasing. Viking's paging controllers typically interface with telephone systems and access control panels, making the SA-1S a natural fit in facility communication architectures that combine entry management with overhead announcement capability.

Frequently Asked Questions

Q: How many SA-1S speakers can one controller drive?

A: The Viking SA-25 controller can directly drive up to 25 SA-1S self-amplified speakers on a single SA Series 2-wire bus.

Q: Does the SA-1S work with standard 70V distributed audio systems?

A: No. The SA-1S uses Viking's SA Series 2-wire protocol (40VDC + audio) and is not compatible with 70V or 100V distributed audio architectures. It requires a Viking SA Series controller.

Q: Can the SA-1S volume be adjusted remotely?

A: Yes — the SA-1S includes an integrated infrared remote control detector. Volume can be adjusted using the Viking SA-IR infrared transmitter (sold separately), without requiring ladder access or software changes.

Q: Is the SA-1S suitable for outdoor or unconditioned space installation?

A: No. The SA-1S is rated for operating temperatures of 32°F to 90°F (0°C to 32°C) and 5%–95% non-condensing humidity. It is designed for conditioned indoor commercial spaces only — not for loading docks, warehouses without climate control, or outdoor enclosures.

Q: What is the frequency response of the SA-1S?

A: The SA-1S delivers 150Hz to 5kHz — a range optimized for voice paging and speech intelligibility. It is not designed for broadband music reproduction.

Q: What are the ceiling cutout dimensions for the SA-1S?

A: The SA-1S measures 12.75 inches (324mm) in diameter and 3.75 inches (95mm) in depth, fitting standard commercial ceiling tile grids without custom cutouts.

Marty Allison

What draws me to the SA-1S is the 2-wire SA Series architecture — 40VDC and audio on a single pair. On a retrofit project in an occupied office building, that wiring model is the difference between a half-day pull and a two-day disruption. You're not running separate power conductors to 15 ceiling locations; you're extending one bus and terminating each SA-1S at the drop.

Technical Highlights:

• Built-In 1.5W Amplifier: Amplification at the speaker means the SA-25 controller is doing bus management, not amplification math. Each SA-1S handles its own 1.5W — no central amp sizing headaches as you add endpoints up to the 25-speaker limit.
• IR Volume Control: The integrated IR detector lets facility staff adjust speaker volume with the SA-IR transmitter from the floor — no software, no service call. In a multi-use space where ambient conditions change daily, this is genuinely useful operational flexibility.
• 150Hz–5kHz Response: Tuned for voice. The 8-inch cone delivers that range with enough low-end body to cut through HVAC rumble, which is the real-world enemy of paging intelligibility in commercial corridors and open-plan offices.

Deployment Considerations:

• The SA-1S is Viking SA Series proprietary — confirm your head-end controller (SA-25 or equivalent) before ordering. Mixing with 70V infrastructure is not supported and will not function.
• Watch the 90°F (32°C) operating ceiling. Unconditioned storage areas, server rooms without cooling redundancy, or any space that heats up on weekends can push past that limit and cause the speaker to behave unpredictably or fail prematurely.

The SA-1S fits cleanest in conditioned commercial interiors — corporate offices, retail floors, school corridors, healthcare waiting areas — where you're building or expanding a Viking SA Series paging infrastructure and want a clean, low-wire-count endpoint that staff can manage without IT involvement.
