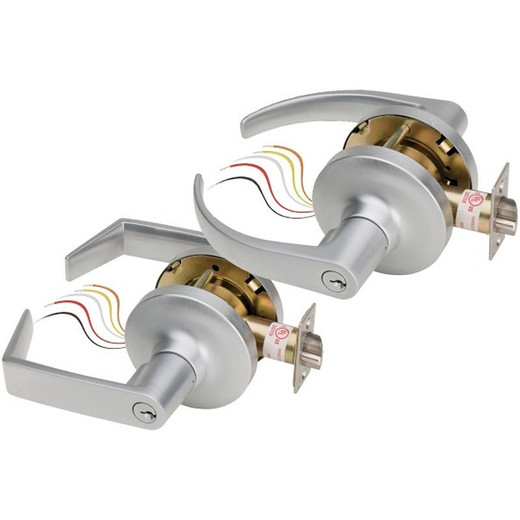

SDC Z7252EQR6PKD 7252 Electronic Strike Lock

We've deployed the SDC Z7252EQR6PKD across everything from university dormitory retrofits to multi-building industrial parks, and it remains one of the most straightforward cylindrical-strike replacements in the mid-market. The real operational win is the dual-voltage regulator — it eliminates the supply-side variance that kills projects on heterogeneous campuses where some buildings run 12VDC legacy access systems and others have transitioned to 24VDC PoE+. In our experience, a single 24VDC power source with field-selectable trim to 12VDC handles 90% of retrofit scenarios without rework. The OSDP and TCP/IP protocols are table-stakes now, but what differentiates the 7252 is the SFIC I-Core prep option: in institutional environments with annual staff churn, the ability to change cylinders in 10 minutes instead of scheduling a locksmith call saves real money over a 5-year lifecycle. The 250,000-credential capacity is rarely exhausted even in large deployments — most projects run 50,000–100,000 active users — so you're not hitting scaling walls mid-contract. One trade-off: the solenoid strike generates audible buzz on unlock; in quiet office environments or sound-sensitive healthcare settings, this can be a design consideration. Magnetic locks are silent, but they can't retrofit into existing cylindrical locksets, which is why the 7252 wins retrofit bids. The fire-door rating is non-negotiable for mixed-use buildings — we've seen code inspections fail on unlisted strikes, so verify your jurisdiction's requirements before spec'ing. Multi-credential support sounds like future-proofing, but honestly, most deployments commit to either 125kHz or DESFire for the lifecycle; the flexibility is more valuable as a migration path than as a day-one feature. Total cost of ownership over 10 years favors the 7252 because you avoid re-keying costs, have auditable access logs, and can revoke credentials instantly across all 63 doors without sending a keying team to each door.

Technical Highlights:

• Field-Selectable 12/24VDC Regulator: Eliminates dual power supplies on retrofits. A single 24VDC source (PoE+ injector, transformer, or dedicated supply) handles the entire 63-door deployment. In mixed-voltage campuses, this reduces BOM cost and installation time by 20–30%.
• OSDP & TCP/IP Native: Direct platform integration with Lenel, Genetec, Salto, Allegion, and Software House without protocol bridges. Simplifies commissioning, reduces latency in credential revocation (typically sub-second), and provides forensic lock-state logs for incident reconstruction.
• SFIC I-Core Prep (E5/G5 Variants): Enables rapid cylinder swaps (10 minutes vs. 1–2 hours with a locksmith). Pays for itself after 3–4 staff-transition cycles in schools, hospitals, or office parks with annual turnover >20%.
• Grade 1 Solenoid Strike with Vandal-Resistant Clutch: Resists drill-out and prying — operational advantage in K–12 schools, public-access buildings, and correctional facilities where mechanical cylinders are vulnerable to bypass attempts.
• Fire-Door Rating: ADA-compliant egress design maintains latch integrity even when energized. Required for any mixed-use building; eliminates the need for separate mechanical backup or dual hardware.
• Failsafe/Failsecure Field Selection: Mode 50 (failsafe) unlocks on power loss for emergency egress; Mode 52 (failsecure) maintains lock. Choose based on egress code and security posture — no hardware swap required.

Deployment Considerations:

• Solenoid buzz on unlock is audible in quiet environments — a feature, not a bug (confirms strike actuation), but disclose this to end-users in healthcare or executive suites to avoid surprise complaints.
• Requires a dedicated power supply or PoE+ injector with 12/24VDC output. Standard 802.3af PoE (13W budget) is insufficient; plan for 802.3at or dedicated 24VDC supply with 2–3A capacity per door set.
• Retrofit prep: Existing cylindrical-lock doors fit without modification. SFIC prep variants (E5/G5) require dealer specification at order time — retrofit adds lead time but eliminates future locksmith calls.
• Latch-status monitoring is standard wiring; REX (request-to-exit) is optional and replaces latch monitoring, not adds to it. Confirm which output your access platform expects before wiring the strike.
• Master-key compatibility: Keyed-alike cylinders are simpler to manage operationally but reduce security posture; keyed-different with master-key audit is preferred for high-security deployments. Plan key-management policy before bulk ordering.
• Credential revocation is instant in the access platform (typically sub-second via OSDP), but physical credential cards take time to recover — implement badge-return procedures and consider multi-factor (card + PIN) for sensitive areas.

The Z7252EQR6PKD is the right choice for mid-market institutions, office parks, and industrial campuses with existing cylindrical-lockset infrastructure and no appetite for magnetic-lock retrofit costs. It's also the choice for any deployment where audit trails, rapid credential provisioning, and fire-door compliance are non-negotiable. For pure new-build projects with unrestricted budget, evaluate magnetic locks for lower TCO and silent operation; for everything else, the 7252 wins the retrofit economics and operational simplicity calculus. Explore the full SDC catalog for other Electra series options and solenoid-bolt alternatives.
