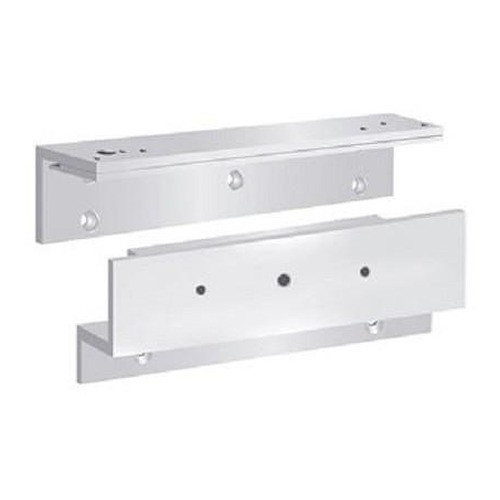

SDC TJ2V Top Jamb Mounting Kit for Access Control
The TJ2V is a wired controller and mounting solution designed for integrators installing door control systems in retrofit and new construction environments. This top jamb form factor eliminates the need for bulky reader housings on the door frame itself, freeing up space and improving the visual profile of your access point.
Key Features
- Top Jamb Mounting Design: Places the reader and controller above the doorway, reducing visible hardware on the door leaf and improving aesthetic integration into commercial and warehouse environments.
- NFC / 13.56MHz Proximity Support: Accommodates standard NFC readers and integrated keypad solutions operating at 13.56MHz, allowing credential-agnostic deployments — you can swap reader types without mechanical reconfiguration.
- Wired Connectivity: Hard-wired architecture eliminates battery dependencies and wireless range concerns — particularly valuable in warehouses with metal racks or RF interference from scanning equipment.
- OSDP Protocol Support: Native Open Supervised Device Protocol (OSDP) integration ensures vendor-neutral interoperability with major access control platforms (Milestone, Genetec, Salto, etc.), avoiding proprietary lock-in and simplifying multi-site deployments.
- Compact Controller Form Factor: Fits within top jamb cavities (typically 4–6 inches deep), minimizing visible enclosure footprint compared to wall-mount alternatives.
- Retrofit and New Construction Ready: Works in both retrofit scenarios (where running new cabling is limited) and new builds (where coordinating mechanical rough-in is feasible). Top mounting keeps reader placement above head height, reducing tampering risk and obscuring credential capture attempts from observers.
Integration & Compatibility
The TJ2V controller communicates via wired connection — typically to an access control panel or edge controller in a cabinet or comms room. OSDP compliance means it operates as a supervised device, enabling real-time event reporting, encrypted credential exchange, and command propagation. Compatible with 13.56MHz proximity readers (HID, Salto, etc.) and integrated keypad-reader combos. Ideal for environments requiring modular reader swaps without panel reprogramming.
For deployment guidance on access control systems and reader placement strategies, consult your panel manufacturer's integration documentation. Top jamb positioning is particularly effective in high-traffic warehouse automation scenarios where you want readers out of the physical collision zone with forklifts and pallet jacks.
Deployment Scenarios
The TJ2V excels in:
- Warehouse & Fulfillment: High-traffic zones where readers must survive regular mechanical abuse and vibration. Top-mounting keeps hardware away from dock doors and equipment paths.
- Retail & Enterprise Offices: Deployments prioritizing clean aesthetics and minimal door-frame hardware visibility.
- Multi-Tenant Buildings: Retrofit access control where vertical wiring chases already exist but door-frame space is constrained.
- Modular Access Environments: Facilities where reader technology may change (e.g., adding mobile credential readers later) without panel replacement.
When comparing access control controllers, the TJ2V's top jamb form factor and OSDP pedigree make it a strong fit for integrators prioritizing installation speed and future-proofing. Evaluate placement constraints carefully — if your door jamb cannot accommodate a 4–6 inch enclosure, wall-mount or pedestal variants may be required.
Frequently Asked Questions
Q: Is the TJ2V compatible with wireless readers?
A: No. The TJ2V is a wired controller. It integrates NFC/13.56MHz wired readers and keypads. If wireless credential readers are required, consult your access control platform for wireless controller options.
Q: Does the TJ2V work with Milestone, Genetec, or Salto systems?
A: OSDP compliance ensures interoperability with platforms supporting OSDP protocol. Confirm your specific platform version and OSDP implementation with your integrator or platform vendor — not all legacy deployments support OSDP at the same feature level.
Q: Can I retrofit the TJ2V into an existing door frame?
A: Yes. The TJ2V is designed for retrofit installation. Verify that your door jamb cavity can accommodate the mounting depth and that wiring paths exist or can be cut without structural compromise.
Q: What is the maximum credential read distance for the TJ2V?
A: Reader distance depends on the specific 13.56MHz reader installed in the TJ2V mounting kit — not the controller itself. Consult the reader manufacturer's range specifications.
Q: Does the TJ2V include power supply and wiring harness?
A: The TJ2V is a mounting kit and controller. Power and interconnect harness requirements depend on your access control panel and local installation standards. Verify bill of materials with your panel vendor during design.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The TJ2V delivers a clean mounting solution for door control in spaces where frame real estate is limited. Top jamb positioning keeps reader hardware out of sight and away from mechanical traffic — a genuine advantage in high-velocity warehouse environments where door frames take regular abuse from equipment and personnel.
Technical Highlights:
- OSDP-Native Communication: Wired OSDP integration ensures encrypted, supervised credential exchange and real-time event reporting to your access control panel. This is not backward-compatible with older Wiegand-only architectures, so confirm your panel supports OSDP before specifying the TJ2V in legacy upgrades.
- 13.56MHz NFC / Proximity Reader Support: The TJ2V accepts standard NFC readers and integrated keypad-reader combos, allowing you to swap credential technology (HID, Salto, Vanderbilt, etc.) without mechanical reconfiguration — valuable when organizations transition from proximity cards to mobile credentials.
- Wired Architecture: No batteries, no RF range limits, no interference from warehouse scanning equipment or metal racks. Reliability is high in noisy RF environments where wireless readers struggle.
Deployment Considerations:
- Jamb Cavity Depth: Verify your door frame jamb is at least 4–6 inches deep. Older commercial doors with shallow jambs may require surface-mount alternatives.
- OSDP Panel Dependency: The TJ2V assumes a modern, OSDP-capable control panel. If your panel is Wiegand-only, the TJ2V will not communicate. Validate panel firmware version with your system integrator before procurement.
- Wiring Run Planning: Hard-wiring requires careful pathway planning. In retrofit scenarios with no existing chases, you may face surface conduit runs or plenum cuts — factor this into your installation timeline and cost estimate.
Deploy the TJ2V in high-traffic warehouse access points where you need robust, maintenance-free hardware positioned away from forklift and pallet jack traffic. The combination of top jamb mounting and OSDP protocol support makes it a strong choice for integrators building modular, future-proof door control systems that can survive credential technology transitions without hardware replacement.
