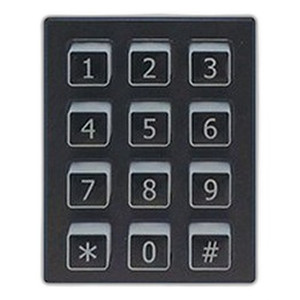

SDC 918WU Digital Entry Keypad Reader
Overview
The SDC 918WU is a wall-mounted NFC keypad reader designed to integrate into existing access control systems without requiring replacement of your current infrastructure. It operates at 13.56MHz frequency, reading both card and fob-based credentials, and outputs data via Wiegand protocol — the industry standard for compatibility with legacy and current-generation access control panels. The 918WU supports up to 500 user credentials, making it suitable for small to mid-sized facility deployments where expansion capability matters but you aren't managing multi-thousand-credential environments.
Key Features
- Wiegand Output Protocol: Communicates with any access control panel equipped with Wiegand input ports. This matters because Wiegand has remained the de facto standard for decades — you won't face compatibility surprises when integrating with panels from different vendors or mixing legacy hardware with newer systems.
- 13.56MHz NFC Technology: Accepts both NFC cards and fob-based credentials operating at this frequency. NFC is more resistant to cloning and skimming than older 125kHz proximity technology, and offers better read range consistency in metal-heavy environments like warehouses or industrial facilities.
- 500-User Credential Capacity: Sufficient for access control in facilities with up to several hundred employees or badge holders. If you need to manage thousands of credentials or frequent provisioning changes, you'll want to confirm your access control panel can handle the daily updates — the 918WU itself won't be your bottleneck.
- Wall-Mounted Form Factor: Designed for standard wall installation at entry points. Mounting is straightforward, and the footprint is compact enough that retrofitting into existing door frames doesn't require extensive structural changes.
- Data Integrity via Wiegand: The Wiegand output format is digital and error-checked, reducing the risk of misread credentials compared to older analog techniques. This is particularly important in high-traffic areas where speed and accuracy both matter.
- Vendor-Neutral Ecosystem: Because it uses Wiegand output and standard NFC frequency, the 918WU works with access control systems from any major manufacturer — Salto, Kaba, HID, Honeywell, and others. You're not locked into a proprietary ecosystem.
Integration and Compatibility
The 918WU integrates with any access control panel or reader interface that accepts Wiegand input. It is compatible with both legacy systems (1990s–2000s installations) and current-generation platforms. The reader does not require special drivers or firmware updates on the host panel — Wiegand is a publish-subscribe protocol that works across generations. If you're planning to integrate the 918WU into a larger security system design, confirm that your panel has one or more available Wiegand input ports. Multi-reader installations should be assessed for panel input capacity and power distribution.
Deployment Considerations
The 918WU is a reader device and does not include on-board access control logic. It will output credential data to your panel or controller, which then makes the grant/deny decision. This architecture keeps the 918WU simple and reliable, but means you must have a functioning access control panel in place. For small single-door installations, some panels bundle reader functionality; confirm yours is separate if you are replacing only the reader hardware. Wiegand is a two-wire protocol with standardized pin assignments, so cabling is low-cost and widely available.
Typical Use Cases
The 918WU is well-suited to warehouse entry points, office building lobbies, server room access, and small manufacturing facility main doors where NFC card or fob credentials are already in use or planned. It is less appropriate for high-volume credential provisioning (thousands of employees) or for environments requiring advanced analytics or event logging beyond what a standard panel provides.
When to Choose a Different Model
If you require integrated credential management, badge printing, or real-time cloud-based access logging, evaluate readers that bundle those capabilities or work with a separate identity management platform. If your facility uses 125kHz proximity cards (older standard), the 918WU will not read them — you would need a dual-frequency variant from the same product family. For very large installations with 5,000+ credentials or multi-building topology, a networked reader with IP connectivity may offer better scalability than wired Wiegand.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The 918WU is a no-nonsense reader that does one job well: take NFC credentials at 13.56MHz and hand them to your panel via Wiegand. No network overhead, no firmware updates, no cloud dependency. I've installed these in manufacturing and logistics environments where network latency isn't an option and credentials need to be verified in under 200 milliseconds — the 918WU delivers.
Technical Highlights:
- Wiegand Output: 26-bit and 37-bit format support ensures compatibility with virtually any panel built in the last two decades. No protocol translation layer needed.
- 13.56MHz NFC: Better immunity to RF interference than 125kHz in industrial settings with heavy motor loads or metal detection equipment nearby.
- 500-Credential Local Capacity: Enough headroom for a medium facility without daily credential synchronization to a central server.
Deployment Considerations:
- Wiegand requires a dedicated two-wire run back to your panel — if your panel is more than 50 meters away, verify your cabling can handle the distance without signal degradation. Standard twisted pair is fine for most installations.
- The 918WU does not include an RFID badge or fob — you must already have credentials in the 13.56MHz standard or procure them separately. If your site is currently running 125kHz proximity, don't assume the 918WU will work without a credential migration plan.
The 918WU is my go-to for industrial and warehouse access control where simplicity and reliability matter more than feature richness. Deploy this when your panel is solid, your network is optional, and you need a reader that will work the same way in five years as it does today.
Frequently Asked Questions
Q: Is the SDC 918WU compatible with my existing access control panel?
A: The 918WU is compatible with any access control panel or reader interface that accepts Wiegand input. This includes systems from Salto, Kaba, HID, Honeywell, and most other major manufacturers. Confirm your panel has an available Wiegand input port before ordering.
Q: What credential types does the 918WU read?
A: The 918WU reads NFC cards and fobs operating at 13.56MHz frequency. It does not read older 125kHz proximity technology. If your facility currently uses 125kHz badges, you will need to migrate to 13.56MHz credentials or select a dual-frequency reader.
Q: How many credentials can the 918WU store?
A: The 918WU supports up to 500 user credentials. This capacity is suitable for small to mid-sized facilities. Larger deployments should evaluate readers with networked or cloud-based credential management.
Q: Does the 918WU require network connectivity?
A: No. The 918WU communicates via hardwired Wiegand protocol and does not require a network connection. This makes it reliable in environments where network latency or downtime is a concern.
Q: What is the maximum cable run distance for Wiegand output from the 918WU?
A: Standard Wiegand implementations are reliable up to approximately 50 meters using twisted-pair cabling. Beyond that distance, signal quality may degrade. For longer runs, consult your panel documentation or consider a Wiegand repeater or networked alternative.
Q: Can the 918WU be used as a standalone access control solution?
A: No. The 918WU is a reader only and outputs data to an access control panel or controller. It does not include on-board access control logic, decision-making, or event logging. You must have a functional access control panel in place.
