Overview

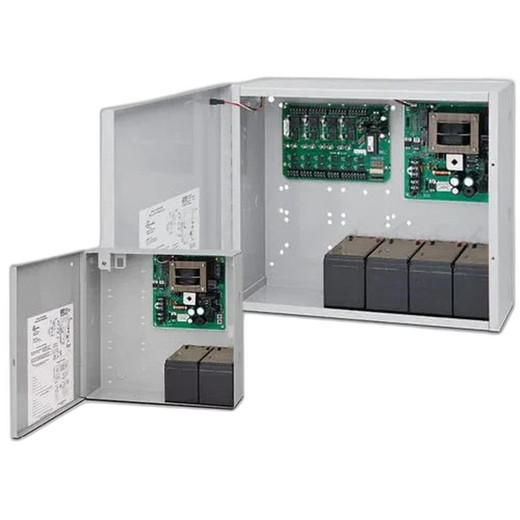

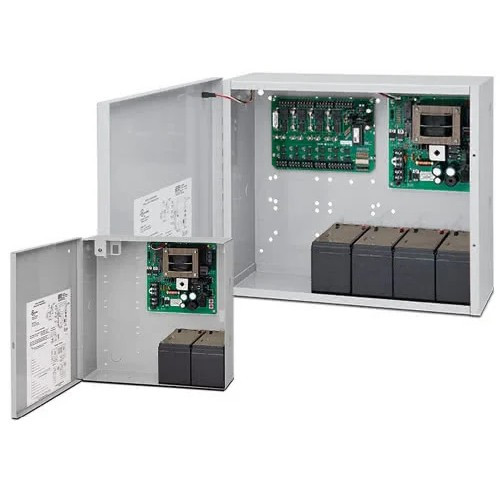

The SDC 632RF is a 220V input, 2-amp regulated power supply designed as a dedicated controller for mid-scale access control installations. This unit converts AC mains power into stable regulated 24VDC output, supporting OSDP-protocol enabled access points and mixed-credential reader environments. If you are integrating access control systems with proximity readers, keypads, or NFC/13.56MHz credential infrastructure, the 632RF provides the power backbone for reliable reader and controller operation across multiple entry points.

Key Features

• 220V AC Input with 2-Amp Output Rating: Accepts standard European and international mains voltage (220V), delivering regulated 24VDC at up to 2 amps. This capacity is sufficient to power a mid-size cluster of door controllers and credential readers without requiring additional power distribution — a real advantage when commissioning branch offices or warehouse entry zones where running multiple separate supplies would complicate wiring.
• OSDP Protocol Support: Communicates via Open Supervised Device Protocol (OSDP), the industry standard for secure access device communication. This isolates credential data from network traffic and prevents eavesdropping on card or PIN data — essential in regulated environments.
• NFC and 13.56MHz Reader Compatibility: Supplies stable power for modern proximity and contactless card readers operating at 13.56MHz frequency. Voltage regulation ensures readers maintain consistent communication range and reader sensitivity across varying load conditions.
• 24VDC Controller Compatibility: Integrates with SDC access control systems and third-party 24VDC-powered door controllers, magnetic locks, and reader boards. The regulated output prevents brownout or lockout scenarios caused by voltage sag when multiple solenoid locks energize simultaneously.
• Wired Connectivity: Hard-wired installation — no wireless pairing or network dependency. In environments with restricted Wi-Fi or where deterministic power delivery is mandatory (pharmaceutical warehouses, secure facilities), wired architecture eliminates latency and avoids credential transmission over radio channels.
• Compact Form Factor: Wall-mountable enclosure suitable for electrical cabinets, control rooms, or utility closets. Reduces rack or shelf footprint compared to modular supply systems, making it practical for retrofit installations in space-constrained locations.

Integration and Deployment Context

The 632RF is architected for access control networks where OSDP devices and legacy 24VDC readers coexist. It sits between the facility AC mains and door controller units, handling voltage conversion and regulation. When selecting a power supply for this role, consider the total current draw: sum the nameplate amps for all door strikes, readers, and control modules on the circuit. The 2-amp rating handles approximately 48 watts of downstream load — appropriate for 4–8 individual entry points with standard solenoid locks and one or two credential readers per door. If your site has more than 10 doors on a single supply or includes high-current devices (server-grade electronic locks), specify a higher-capacity unit instead.

The 632RF supports deployment in mixed-credential environments — for example, a warehouse may use proximity cards at the main loading dock, NFC badges in the admin area, and keypads at secondary exits. All three reader types draw power from the same 24VDC rail, and the 632RF's regulated output maintains stable voltage across this heterogeneous load. This eliminates credential read failures caused by voltage sag and reduces troubleshooting time in the field.

When installing access control infrastructure, consult the access control planning guide to map reader locations, calculate aggregate power budgets, and confirm that the 632RF's 2-amp output matches your specific door and reader count. For systems exceeding the 632RF's capacity, evaluate higher-rated variants in the SDC controller family.

Frequently Asked Questions

Q: Is the SDC 632RF compatible with non-OSDP legacy readers?

A: The 632RF supplies regulated 24VDC power to any 24VDC-rated access control device, regardless of protocol. OSDP support means that OSDP-enabled readers and controllers on the same circuit will communicate securely via that protocol. Non-OSDP 24VDC devices will operate on the same power rail but will not benefit from OSDP encryption. Confirm power ratings and voltage tolerance for each downstream device.

Q: What is the maximum load I can connect to the SDC 632RF?

A: The unit is rated for 2 amps at 24VDC, which equals a maximum load of approximately 48 watts. Typical solenoid door strikes consume 0.5–1.0 amp during energization; a single credential reader draws 0.2–0.5 amp. For a rule of thumb: the 632RF comfortably supports 4–8 doors with one reader per door. Exceeding this requires a higher-capacity supply.

Q: Does the SDC 632RF require backup power (UPS) integration?

A: The 632RF itself does not include battery backup. If you need access control to remain operational during mains power loss, integrate an external UPS (uninterruptible power supply) into the supply chain upstream of the 632RF, or specify a UPS-integrated controller variant. Many facilities require access to remain functional for at least 24 hours during power outages.

Q: Can I mount the SDC 632RF outside an electrical cabinet?

A: The 632RF is designed for installation in a control cabinet or utility enclosure. If exposed mounting is required, verify environmental operating temperature and humidity limits in the product datasheet, and ensure compliance with local electrical codes for mains-voltage installations. Consult a licensed electrician for non-cabinet deployments.

Q: What is the warranty period for the SDC 632RF?

A: Warranty details are available from the manufacturer or your specialty distributor. Confirm coverage terms and support procedures before deployment.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SDC 632RF is a straightforward power supply controller — not a novelty device, but a necessary building block for any OSDP access control deployment. I recommend it specifically when you need regulated, stable 24VDC for mixed-reader environments and want to avoid voltage sag that causes credential read failures or solenoid chatter at peak lock activation. The 632RF's 2-amp capacity and OSDP protocol support make it a solid choice for mid-scale sites with 4–8 doors per supply run.

Technical Highlights:

• 220V AC Input, 24VDC 2-Amp Output: Converts mains voltage to regulated DC, delivering approximately 48 watts of available load capacity. Regulation prevents voltage droop when multiple solenoid locks energize — critical for consistent reader performance and lock reliability.
• OSDP Protocol Enablement: Controllers and readers on the same 24VDC rail can communicate via OSDP's encrypted, tamper-resistant channel. This isolates credential data from your general network and eliminates replay attacks or eavesdropping on card numbers.
• NFC/13.56MHz Reader Support: Modern contactless readers draw stable power across frequency ranges; regulated voltage maintains reader sensitivity and avoids the intermittent range loss you see with unregulated supplies when other loads spike.

Deployment Considerations:

• Load Budgeting: Do not assume the 632RF can power an unlimited number of doors. Solenoid strikes draw 0.5–1.0 amp on activation; readers add 0.2–0.5 amp. Total peak draw must stay under 2 amps. For 10+ doors, you'll need multiple supplies or a higher-capacity unit.
• No Built-in Battery Backup: The 632RF is passive — if mains power fails, access control goes down unless you wire an external UPS upstream. For high-security or mission-critical access points (server rooms, data centers), specify UPS integration during the design phase.

Position the 632RF in access control architectures where you're consolidating 4–8 doors under a single regulated supply and you require OSDP protocol isolation. For warehouse or retail multisite rollouts with standardized door counts, it's an economical anchor point that eliminates per-door power supply clutter and reduces installation labor.
