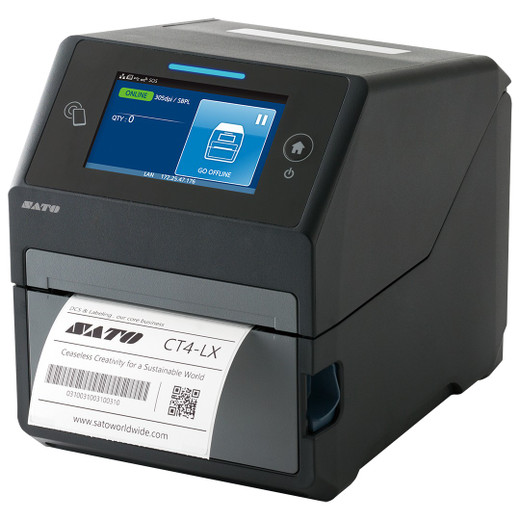

SATO CT4-LX 203dpi HF RFID Desktop Thermal Printer

SATO CT4-LX 203dpi HF RFID Desktop Thermal Printer – WWCT03441-NAR

The SATO WWCT03441-NAR is a compact yet powerful desktop thermal printer engineered for enterprise-grade RFID label production and asset tracking workflows. Combining 203 dpi thermal printing with integrated 13.56 MHz HF RFID encoding capabilities, this printer delivers reliable barcode, text, and smart label output in a space-efficient form factor. Built-in SATO RF Analyze technology automatically optimizes RFID antenna settings across varying inlay types, ensuring consistent encoding performance without manual calibration.

Key Features

• 203 dpi resolution at 8 ips print speed for sharp barcodes and high-quality text output
• Integrated 13.56 MHz HF RFID encoding with SATO RF Analyze auto-optimization for reliable tag performance
• 4.3" full-color touchscreen display for intuitive menu navigation and job management
• 4 GB Flash and 1 GB DDR3 memory with 2 GB user-accessible storage for forms, fonts, and templates
• Tool-free printhead and platen roller replacement to minimize maintenance downtime
• Multiple connectivity: USB 2.0, Ethernet, Wi-Fi, and Bluetooth for flexible network integration
• Compact desktop footprint: 7.0" W × 9.375" D × 8.4375" H, weighs only 7.3 lbs
• Direct thermal and thermal transfer printing methods supported

Technical Specifications

• Print Method: Direct Thermal / Thermal Transfer
• Resolution: 203 dpi
• Print Speed: 8 inches per second
• Maximum Print Width: 4.09"
• Media Width Range: 1" to 4.1" (1.5" core)
• Maximum Media Diameter: 5"
• Maximum Ribbon Length: 984 ft (300 m)
• RFID Frequency: 13.56 MHz (HF/NFC)
• Display: 4.3" full-color touchscreen
• Memory: 4 GB Flash, 1 GB DDR3, 2 GB user storage
• Connectivity: USB 2.0, Ethernet, Wi-Fi, Bluetooth
• Power: AC 100-240V, 50/60 Hz
• Operating Temperature: 32°F to 104°F
• Dimensions: 7.0" W × 9.375" D × 8.4375" H
• Weight: 7.3 lbs

Typical Applications

• HF RFID tag encoding and verification for asset tracking and inventory management
• Smart label production for supply chain visibility and traceability
• Item-level RFID tracking in manufacturing and distribution environments
• NFC-enabled label printing for product authentication and serialization
• Enterprise label production with dynamic barcode and text printing

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SATO CT4-LX WWCT03441-NAR stands out as a mid-range solution for organizations requiring integrated thermal printing and RFID encoding without the footprint of larger industrial systems. The 203 dpi resolution strikes a practical balance between output quality and speed, making it suitable for standard barcode labels, shipping labels, and product identification tags. The SATO RF Analyze feature is particularly valuable in RFID applications, as antenna optimization is typically a manual process that requires testing across different inlay manufacturers—automating this reduces setup time and improves first-pass encoding success rates.

The 4.3" touchscreen and tool-free maintenance components reflect thoughtful design for busy label operations. Connectivity is robust with Ethernet, Wi-Fi, Bluetooth, and USB support, enabling integration into existing network label servers or direct printing from mobile devices. The 8 ips speed is adequate for moderate-to-high-volume label runs, though organizations with extremely high throughput requirements may want to consider larger SATO models.

Storage capacity (2 GB user-accessible) comfortably handles hundreds of label templates and fonts for typical enterprise deployments. This printer is ideal for mid-market companies implementing RFID-based asset management, pharmaceutical serialization, or smart supply chain initiatives where compact desktop placement and integrated RFID are key requirements.
