SATO CL4NX Plus 305dpi Industrial Thermal Transfer Printer
The SATO WWCLP2101-WAR is a rugged, enterprise-grade industrial thermal transfer printer engineered for high-volume label production in demanding warehouse, manufacturing, and logistics environments. Combining 305 dpi resolution with 14 ips print speed and a compact 4.09" maximum print width, this printer delivers sharp barcode, text, and image output while maintaining rapid throughput for time-sensitive operations.
Key Features
- 305 dpi resolution with 14 ips print speed for professional-quality output
- Direct thermal and thermal transfer dual-mode printing for maximum media flexibility
- 4.09" maximum print width supports standard label formats
- 3.5" full-color LCD display with intuitive user interface
- 2 GB Flash and 256 MB SDRAM with 100 MB user-accessible storage for fonts and forms

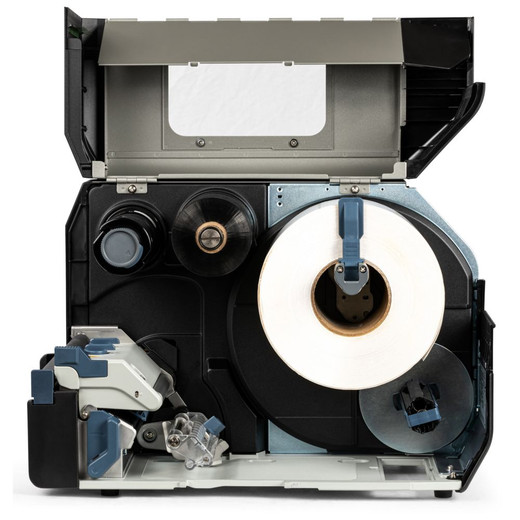

- Tool-free printhead and platen roller replacement minimizes downtime
- Rigid cast aluminum frame with corrosion-resistant construction
- Supports media rolls up to 10" outer diameter with 1,968 ft ribbon capacity
- Media width range: 0.87" to 5.04" on 1" or 3" cores
Connectivity and Interfaces
Multiple connectivity options—Ethernet, Wi-Fi, and USB 2.0—enable seamless network integration and direct host connection. Additional interfaces include RS-232C, Parallel, Bluetooth 3.0, and NFC for comprehensive deployment flexibility in modern enterprise networks.
Technical Specifications
- Print Technology: Direct Thermal / Thermal Transfer
- Resolution: 305 dpi
- Print Speed: 14 ips
- Maximum Print Width: 4.09"
- Memory: 2 GB Flash, 256 MB SDRAM, 100 MB user storage
- Display: 3.5" Full-Color LCD
- Media Width: 0.87" to 5.04"
- Media Roll Diameter: Up to 10" outer diameter
- Ribbon Length: 1,968 ft (600 m)
- Dimensions: 10.66" x 17.99" x 12.63"
- Weight: 33 lbs (15 kg)
- Power Input: AC 100-240V, 50/60Hz
- Operating Temperature: 41°F to 104°F (5°C to 40°C)
Applications
- High-volume shipping, parcel, and logistics label production
- Manufacturing product identification and serialization
- Warehouse inventory management and route optimization
- Compliance labeling and regulatory documentation
- Healthcare and pharmaceutical asset tracking
- Retail and distribution center operations
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SATO CL4NX Plus represents a mature, proven platform in industrial label printing. The combination of dual print modes—direct thermal for media cost reduction and thermal transfer for durability—positions this printer as a flexible solution across varied supply chains. The 305 dpi specification delivers exceeds typical GS1 barcode and 2D code requirements, ensuring first-read accuracy in high-speed scanning operations.
Tool-free maintenance design reduces total cost of ownership by minimizing technician callouts. The 3.5" full-color display and 100 MB user storage enable standalone operation with pre-loaded templates, reducing IT infrastructure dependencies. Built for 24/7 warehouse and production floor duty, the cast aluminum chassis withstands vibration and temperature fluctuation.
Network connectivity via Ethernet and Wi-Fi supports modern IT integration patterns, though USB remains available for legacy deployments. This printer excels in mid-to-large volume operations where uptime and consistent output quality directly impact operational margins.
