SATO CL4NX Plus 305dpi Industrial Thermal Printer

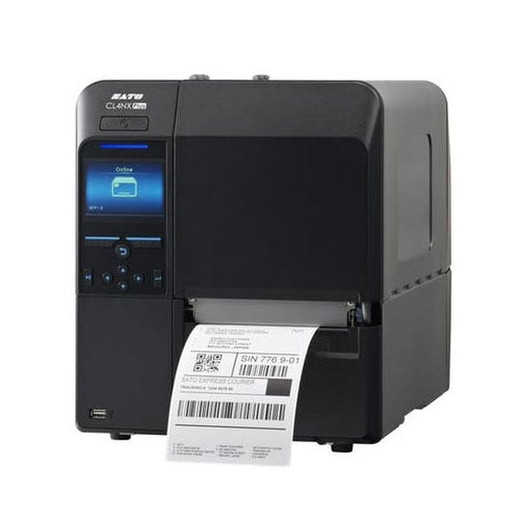

SATO CL4NX Plus 305dpi Industrial Thermal Transfer Printer – WWCLP2001-WAR

The SATO WWCLP2001-WAR is a high-performance industrial thermal transfer printer engineered for demanding enterprise labeling environments. With 305 dpi resolution and 14 inches-per-second print speed, this printer delivers sharp, consistent output for barcode labels, shipping documentation, and compliance-critical applications. The rigid cast aluminum construction with corrosion-resistant materials ensures durability in harsh operational conditions, while dual thermal printing modes—direct thermal and thermal transfer—provide maximum media flexibility for diverse production requirements.

Key Features

• 305 dpi resolution at 14 ips for precise barcode and text rendering
• 4.09" maximum print width supports standard enterprise label formats
• 2 GB Flash and 256 MB SDRAM with 100 MB user storage for forms, fonts, and graphics
• Dual-mode printing: direct thermal and thermal transfer on single device
• Tool-free printhead and platen roller replacement minimizes maintenance downtime
• 3.5" full-color LCD display with intuitive navigation
• Supports media rolls up to 10" outer diameter and ribbons to 1,968 feet
• Media width range: 0.87" to 5.04" with 1" or 3" core options
• Multiple connectivity: USB 2.0, Ethernet, RS-232C, Parallel, Bluetooth 3.0, and NFC
• Wide operating temperature range: 41°F to 104°F
• Compact footprint: 10.66" × 17.99" × 12.63", weighing 33 lbs

Technical Specifications

• Print Method: Direct Thermal / Thermal Transfer
• Resolution: 305 dpi
• Print Speed: 14 ips
• Maximum Print Width: 4.09"
• Memory: 2 GB Flash, 256 MB SDRAM, 100 MB user storage
• Connectivity: USB 2.0, Ethernet, RS-232C, Parallel, Bluetooth 3.0, NFC
• Media Specifications: 0.87" to 5.04" width, up to 10" roll diameter
• Ribbon Capacity: Up to 1,968 feet
• Display: 3.5" full-color LCD
• Power Input: AC 100-240V, 50/60Hz
• Operating Temperature: 41°F to 104°F

Ideal Applications

• High-volume shipping and logistics label production
• Manufacturing identification, tracking, and serialization
• Warehouse inventory management and routing labels
• Compliance, regulatory, and pharmaceutical labeling
• Retail and distribution center operations

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SATO CL4NX Plus WWCLP2001-WAR represents a solid mid-tier industrial printer for enterprises requiring robust label output without premium-tier complexity. The 305 dpi resolution strikes an effective balance between barcode readability and print speed—14 ips is competitive for high-throughput environments. The 2 GB Flash memory and dual thermal modes provide operational flexibility; organizations can switch between thermal transfer for long-term media or direct thermal for cost-sensitive applications without hardware changes.

The tool-free printhead replacement is a practical maintenance feature that reduces production downtime—critical in 24/7 logistics operations. Connectivity is comprehensive, with Ethernet, USB, Bluetooth, and NFC supporting both legacy infrastructure and modern network integration. The cast aluminum frame and wide temperature tolerance indicate this printer is built for industrial floors, not office environments. For organizations standardizing on SATO platforms, this model fits well in mid-volume production scenarios where the CL4NX Plus's speed and resolution are sufficient, and where media flexibility justifies the dual-mode investment.
