SATO CL4NX Plus 305dpi Industrial Thermal - WWCLP2001 RB

SATO CL4NX Plus 305dpi Industrial Thermal - WWCLP2001 RB

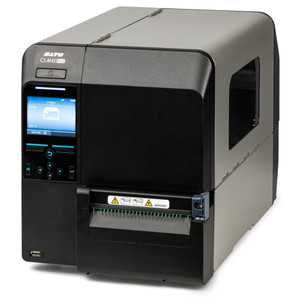

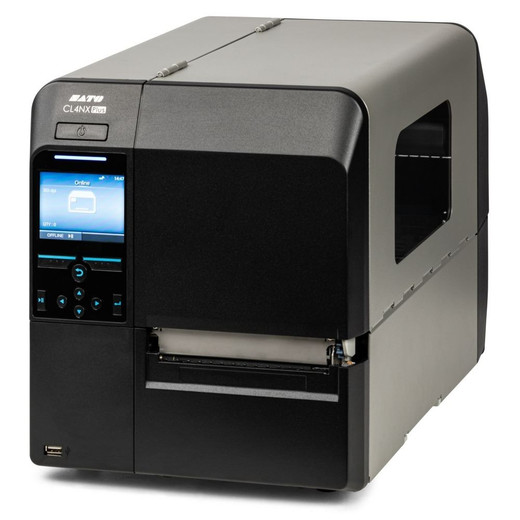

The SATO WWCLP2001 RB is a professional-grade industrial thermal transfer printer engineered for high-volume enterprise labeling applications. With 305 dpi resolution and 14 ips print speed, this printer delivers crisp barcode and text output on media up to 4.09" wide. Built on a rigid cast aluminum frame with corrosion-resistant materials, the CL4NX Plus series offers exceptional durability in demanding warehouse, manufacturing, and logistics environments.

Key Features

• 305 dpi resolution at 14 ips print speed for sharp barcodes and text
• 4.09" maximum print width for standard label formats
• Dual-mode printing: Direct Thermal and Thermal Transfer capability
• 2 GB Flash and 256 MB SDRAM with 100 MB user-accessible storage
• Tool-free printhead and platen roller replacement for minimal downtime
• 3.5" full-color LCD touchscreen for intuitive operation
• Multiple connectivity: USB 2.0, Ethernet, RS-232C, Parallel, Bluetooth 3.0, and NFC
• Supports media rolls up to 10" outer diameter with 1" or 3" core options
• Ribbon capacity up to 1,968 ft (600 m)

Technical Specifications

• Print Method: Direct Thermal / Thermal Transfer
• Resolution: 305 dpi
• Print Speed: 14 inches per second
• Maximum Print Width: 4.09"
• Media Width Range: 0.87" to 5.04"
• Memory: 2 GB Flash, 256 MB SDRAM
• User Storage: 100 MB
• Connectivity: USB 2.0, Ethernet, RS-232C, Parallel, Bluetooth 3.0, NFC
• Power: AC 100-240V, 50/60Hz
• Operating Temperature: 5°C to 40°C
• Dimensions: 10.66" W x 17.99" D x 12.63" H
• Weight: 33 lbs

Applications

• High-volume shipping and logistics label production
• Manufacturing part identification and asset tracking
• Warehouse inventory management and routing labels
• Compliance and regulatory labeling requirements
• Healthcare and pharmaceutical labeling

Marty Allison

Perspective based on aggregated and affiliated engineering team experience.

The SATO CL4NX Plus WWCLP2001 RB combines enterprise reliability with operational flexibility. The dual thermal/thermal transfer capability allows organizations to optimize media costs—direct thermal for temporary labels and thermal transfer for durable, long-lasting applications. At 305 dpi, this printer exceeds typical industrial requirements for barcode quality assurance standards.

The tool-free printhead design significantly reduces maintenance labor costs in high-volume operations. Connectivity breadth (Ethernet, Wi-Fi, USB, Bluetooth, NFC) ensures seamless integration into existing IT infrastructure, whether legacy or modern networked environments. With 100 MB user storage, custom forms and fonts can be stored locally, reducing dependency on network access for remote or mobile printing scenarios.

The cast aluminum construction and wide operating temperature range make this suitable for both climate-controlled warehouses and challenging field conditions.
