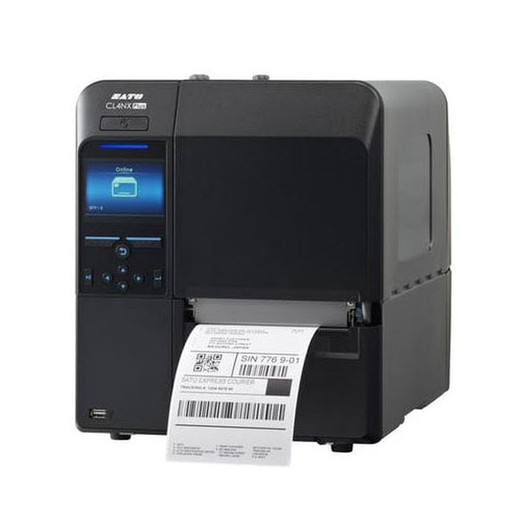

Sato WWCLP2001-WAN 305dpi Industrial Thermal Printer
The Sato WWCLP2001-WAN is a purpose-built industrial thermal printer designed for high-volume enterprise labeling across logistics, manufacturing, and warehouse environments. This compact unit combines 305 dpi resolution with 14 inches-per-second (ips) print speed, delivering crisp barcode and text output on media up to 4.09" wide. Built on a rigid cast aluminum frame and engineered for demanding conditions, the WWCLP2001-WAN (often searched as WWCLP2001 WAN) balances throughput, print quality, and serviceability in a footprint that fits tight production and shipping zones.
Key Features
- 305 dpi resolution at 14 ips: At 305 dpi and 14 ips, you can produce GS1-128 and data matrix codes at production pace without sacrificing barcode scannability—critical in high-velocity shipping, manufacturing, and warehouse workflows. The resolution is sharp enough for small-font compliance labels and serialization without the speed penalty of 600 dpi alternatives.
- Dual-mode printing (direct thermal and thermal transfer): Direct thermal handles cost-sensitive labels where shelf life is short (hours to days); switch to thermal transfer for durable labels requiring months or years of readability. This flexibility eliminates media lock-in and lets you optimize per-label cost by matching the print mode to actual label lifespan.
- Tool-free printhead and platen roller replacement: Routine maintenance—printhead, platen swap—requires no tools and takes minutes. This design cuts downtime for technician visits and reduces spare-parts inventory complexity, a real cost factor in 24/7 facilities.
- 3.5" full-color LCD display: Substantially larger than older monochrome panels, this display lets operators see label previews, device status, and configuration menus clearly. Result: reduced training time and fewer support escalations when operators can troubleshoot basic issues themselves.
- Multiple connectivity (Ethernet, Wi-Fi, USB 2.0): Wi-Fi enables wireless deployment in warehouse zones without dedicated cabling infrastructure. Ethernet provides stable, low-latency integration for production-line systems requiring synchronized label printing. USB 2.0 supports local testing and firmware updates without network access.
- 2 GB Flash + 256 MB SDRAM + 100 MB user storage: Sufficient capacity for large label templates and font libraries. The user-accessible 100 MB partition lets you store label designs locally, reducing network dependency and supporting offline label queuing when connectivity is intermittent.
- Media roll support up to 10" outer diameter with ribbon capacity to 1,968 ft: Larger roll size means fewer changeovers during high-volume shifts. Extended ribbon capacity scales with high-speed print runs, reducing operator intervention and minimizing downtime between production cycles.
- Operating range 41°F to 104°F (5°C to 40°C): Covers typical warehouse and manufacturing environments. Confirm your facility falls within this thermal window; outdoor loading docks near garage doors or climate-controlled clean rooms near air handlers may require environmental review or seasonal adjustments.
Why the WWCLP2001-WAN Fits Mid-to-Large Warehouse and Manufacturing Operations
The Sato WWCLP2001-WAN scales effectively when you're printing 500+ labels per shift across multiple workstations. The aluminum frame and sealed design withstand vibration and minor impacts typical of active warehouse settings. For organizations already standardized on Sato equipment or those implementing Sato's AEP (Application Environment Platform) for label design and workflow automation, this printer integrates cleanly into existing label infrastructure. Its dual-mode capability is especially valuable in mixed-SKU environments where some items require durable thermal-transfer labels while others use cost-effective direct-thermal tags.
Integration and Deployment Considerations
The WWCLP2001-WAN supports standard label design tools via Windows drivers and can be provisioned via Ethernet for enterprise-wide roll-out. Test media compatibility and ribbon sourcing in your environment before full deployment—thermal transfer requires specific ribbon and label combinations, and switching between print modes involves configuration changes, not a run-time toggle. If you're integrating this printer alongside warehouse management systems or order management platforms, ensure your label design system supports the printer's command set and that network latency on Wi-Fi deployments meets your throughput targets.
When to Choose a Different Model
If you require higher resolution (600 dpi) for extremely small fonts or tiny barcodes, or if your labels exceed 4.09" width, consider a higher-resolution or wider-format Sato model in the same industrial printer family. Similarly, if your environment operates outside the 41°F to 104°F range (such as refrigerated shipping or high-temperature manufacturing floors), verify environmental specifications with Sato before committing.
Frequently Asked Questions
Q: What is the maximum print width for the WWCLP2001-WAN?
A: The maximum print width is 4.09 inches. The printer supports media in the range of 0.87 to 5.04 inches wide, but the actual printable area tops out at 4.09 inches.
Q: Can the WWCLP2001-WAN switch between direct thermal and thermal transfer on the fly?
A: Not automatically. Switching from direct thermal to thermal transfer requires changing the media and ribbon, and reconfiguring the firmware settings. Plan for a brief offline period when switching modes.
Q: Is the WWCLP2001-WAN Wi-Fi secure for enterprise use?
A: The printer supports Wi-Fi connectivity, but for security-critical deployments in large enterprises, Ethernet is the more stable option. Consult your IT security team regarding wireless printer policies.
Q: What is the duty cycle or maximum monthly print volume for the WWCLP2001-WAN?
A: The 14 ips print speed and 10-inch roll capacity support high-volume, continuous operations typical of warehouse and manufacturing facilities. Confirm the specific duty cycle with the manufacturer for your workload profile.
Q: Does the WWCLP2001-WAN support barcode fonts out of the box?
A: Yes. The 2 GB Flash and 256 MB SDRAM provide ample storage for barcode fonts and label templates. You can pre-load GS1-128, Code 128, and other standard symbologies via label design software.
Q: What connectivity is best for a production-line integration—Ethernet or Wi-Fi?
A: Ethernet is recommended for production-line systems where low-latency, synchronous label printing is critical. Wi-Fi is suitable for warehouse picking, receiving, and other non-synchronized labeling tasks.
The WWCLP2001-WAN hits a real sweet spot for mid-market warehouse and manufacturing environments running 500+ labels per shift. At 305 dpi and 14 ips, you get barcode scannability without sacrificing throughput—and the dual-mode capability (direct thermal and thermal transfer) is genuinely useful when your label requirements are mixed. The tool-free maintenance design is worth more than it sounds in a 24/7 operation.
Technical Highlights:
- 305 dpi at 14 ips: Crisp GS1-128 and data matrix codes at production pace. Not as slow as 600 dpi alternatives, not as coarse as 203 dpi. Right in the middle for compliance labels and barcode-heavy workflows.
- Dual thermal mode (direct and transfer): Direct thermal for short-shelf-life labels cuts per-label cost; thermal transfer for durable, multi-month labels. No media lock-in—real operational flexibility.
- 3.5" color LCD + 100 MB local storage: Larger display cuts operator errors and training overhead. Local label storage supports offline queuing when network latency or Wi-Fi drops occur, reducing frustration in active facilities.
- 10" roll support + 1,968 ft ribbon capacity: Fewer changeovers per shift. In high-volume environments, this translates to real labor savings and fewer "waiting for paper" bottlenecks.
Deployment Considerations:
- Switching modes is not seamless: Moving from direct thermal to thermal transfer requires media swap, ribbon change, and firmware reconfiguration. Plan maintenance windows; this is not a run-time toggle.
- Wi-Fi vs. Ethernet trade-off: Wi-Fi is convenient for scattered warehouse picking stations, but for synchronized production-line printing or high-throughput systems, Ethernet is the only reliable choice. Don't assume Wi-Fi scales to 500+ labels/hour without testing.
- 4.09" max width is a hard ceiling: If you need to print 5" labels, this unit won't work. Confirm your label templates fit before committing to multiple units.
- Operating range 41°F to 104°F: Standard warehouse conditions, but outdoor loading docks near garage doors or refrigerated receiving areas may fall outside this window. Environmental testing is non-negotiable in those scenarios.
The WWCLP2001-WAN is a solid choice for logistics operations standardized on Sato infrastructure, or for fresh deployments in mid-market warehouses and light manufacturing where barcode throughput and label durability flexibility matter more than maximum resolution or print width. If your facility is smaller (sub-200 labels/shift) or your label requirements are simpler, you may be over-invested; if you're printing 1,000+ per shift or need wider labels, look upmarket in the Sato family.
