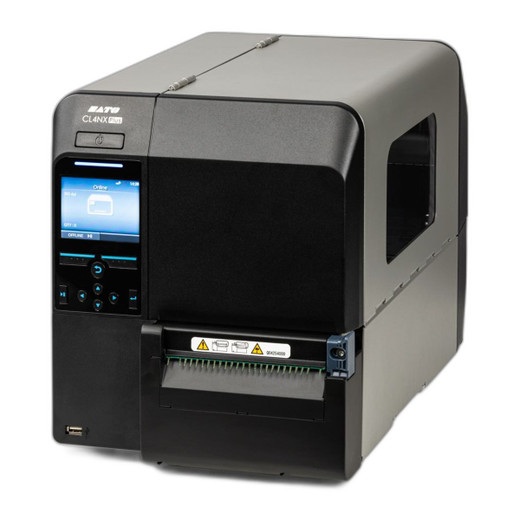

SATO CL4NX Plus 203dpi Industrial Thermal Printer

SATO CL4NX Plus 203dpi Industrial Thermal Transfer Printer – WWCLP1101-WAR

The SATO WWCLP1101-WAR CL4NX Plus is a robust industrial thermal printer engineered for high-volume enterprise label production. With 203 dpi resolution and 14 inches-per-second print speed, this printer delivers sharp barcode and text output on labels up to 4.09" wide. Dual-mode printing capability—direct thermal and thermal transfer—provides flexibility across diverse labeling applications without changing hardware. The printer's rigid cast aluminum construction with corrosion-resistant materials ensures durability in demanding warehouse and manufacturing environments.

Key Features

• 203 dpi resolution at 14 ips print speed for crisp barcode and text output
• 4.09" maximum print width supporting labels 0.87" to 5.04" wide
• Dual-mode printing: direct thermal and thermal transfer on demand
• 2 GB Flash and 256 MB SDRAM with 100 MB user-accessible storage for forms, fonts, and graphics
• 3.5" full-color LCD touchscreen for intuitive operation and job management
• Tool-free printhead and platen roller replacement to minimize maintenance downtime
• Multiple connectivity options: Ethernet, Wi-Fi, USB 2.0, RS-232C, Parallel, Bluetooth 3.0, and NFC
• Media roll capacity up to 10" outer diameter; ribbon length up to 1,968 ft (600 m)
• Compact footprint: 10.66" × 17.99" × 12.63" (33 lbs)
• Wide operating temperature range: 41°F to 104°F (5°C to 40°C)

Technical Specifications

• Print Method: Direct Thermal / Thermal Transfer
• Resolution: 203 dpi
• Print Speed: 14 ips
• Max Print Width: 4.09"
• Memory: 2 GB Flash, 256 MB SDRAM
• User Storage: 100 MB
• Connectivity: Ethernet, Wi-Fi, USB, RS-232C, Parallel, Bluetooth 3.0, NFC
• Display: 3.5" Full-Color LCD
• Media Width Range: 0.87" to 5.04"
• Max Media Roll Diameter: 10"
• Max Ribbon Length: 1,968 ft (600 m)
• Power: AC 100-240V, 50/60Hz
• Dimensions: 10.66" × 17.99" × 12.63"
• Weight: 33 lbs (15 kg)

Typical Applications

• High-volume shipping and logistics labeling for carrier compliance and tracking
• Manufacturing floor identification and product serialization
• Warehouse inventory management, bin labeling, and routing
• Healthcare and pharmaceutical compliance and regulatory labeling
• Retail price and promotional labeling at scale

Marty Allison

The SATO CL4NX Plus WWCLP1101-WAR is purpose-built for operations requiring consistent, reliable label output without compromise. The combination of 203 dpi resolution and 14 ips speed strikes a practical balance between quality and throughput—ideal for enterprises managing thousands of labels daily. Dual thermal printing modes eliminate the need for separate devices when switching between thermal transfer (for longevity and color ribbons) and direct thermal (for cost-sensitive, high-volume runs).

The 2 GB Flash memory and robust form storage support complex, customized label layouts without network dependency. Tool-free consumable replacement is a significant operational advantage: printhead and platen changes take minutes rather than hours, reducing downtime in time-sensitive environments. Multi-protocol connectivity—including Wi-Fi, Ethernet, USB, and industrial interfaces like RS-232C and Parallel—ensures seamless integration into legacy and modern network infrastructures.

The full-color LCD and SATO AEP standalone apps provide both visual feedback and independent configuration, critical for facilities where IT support may be limited. Cast aluminum construction with corrosion resistance is essential for food processing, chemical, and outdoor logistics applications. The 10" roll capacity and 1,968 ft ribbon length support extended print runs, reducing media changeovers and improving productivity in high-volume environments.
