SATO CL4NX Plus 203dpi HF RFID Industrial Printer - WWCLP1B01-WAR

SATO CL4NX Plus 203dpi HF RFID Industrial Printer - WWCLP1B01-WAR

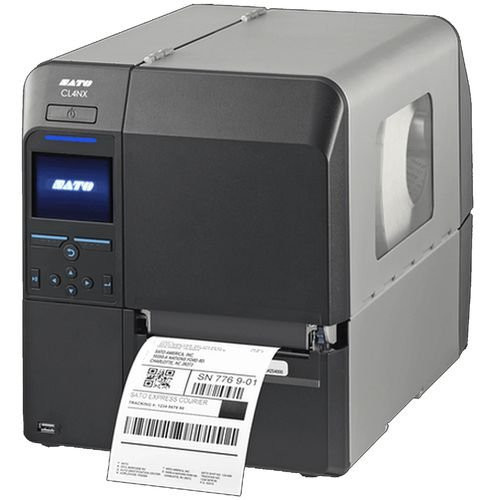

The SATO WWCLP1B01-WAR is a robust industrial thermal transfer printer designed for enterprise-grade RFID label production and barcode encoding. Built on the proven CL4NX Plus platform, this printer combines 203 dpi resolution with integrated 13.56 MHz HF RFID encoding capabilities, delivering reliable performance in demanding manufacturing and supply chain environments. Its rigid cast aluminum frame with corrosion-resistant materials ensures durability across varied industrial conditions.

Key Features

• 203 dpi resolution at 14 ips print speed for sharp barcode and text output
• HF RFID (13.56 MHz) encoding with SATO RF Analyze auto-optimization for consistent tag performance
• 4.09" maximum print width supporting 0.87" to 5.04" media widths
• 3.5" full-color LCD display for intuitive operation and job monitoring
• Tool-free printhead and platen roller replacement to minimize maintenance downtime
• 2 GB Flash, 256 MB SDRAM, 100 MB user-accessible storage for forms and fonts
• Multiple connectivity options: Ethernet, Wi-Fi, USB 2.0, RS-232C, Parallel, and Bluetooth 3.0
• Media roll capacity up to 10" outer diameter with ribbon support to 1,968 ft

Technical Specifications

The printer operates across a wide temperature range of 5°C to 40°C (41°F to 104°F), making it suitable for both climate-controlled facilities and less regulated warehouse environments. Its compact footprint of 10.66" x 17.99" x 12.63" at 15 kg (33 lbs) allows flexible placement on production floors. Universal power input (AC 100–240V, 50/60Hz) eliminates regional compatibility concerns. The SATO RF Analyze function automatically optimizes RFID antenna settings based on inlay type and material composition, ensuring reliable encoding without manual recalibration between label formats.

Applications

• HF RFID tag encoding and verification for asset tracking and management
• Smart label production for supply chain visibility and traceability
• Manufacturing line RFID-enabled item-level tracking and work-in-progress monitoring
• Automated inventory management with real-time encoding verification
• Healthcare and pharmaceutical labeling with regulatory compliance
• Retail and apparel item-level RFID tagging for loss prevention

Ted Perry

Perspective based on aggregated and affiliated engineering team experience.

The CL4NX Plus represents a mature platform built specifically for organizations requiring integrated RFID encoding at point-of-label production. The 203 dpi resolution strikes an effective balance between output quality and throughput for mid-volume enterprise operations. SATO's RF Analyze technology addresses a critical pain point in RFID production—antenna tuning variability—by automatically compensating for different substrate materials and inlay designs. This is particularly valuable in mixed-SKU production runs where manual optimization would introduce delays.

The printer's connectivity matrix (Ethernet, Wi-Fi, USB) accommodates diverse network infrastructures, while the 3.5" color display provides immediate visual feedback on encoding success rates and print quality. For operations processing 5,000+ RFID labels daily, the tool-free printhead design reduces unplanned downtime significantly. The 2 GB flash storage with user-accessible 100 MB allocation supports moderate application complexity; organizations with extensive custom form libraries should evaluate storage requirements against actual form deployment patterns.
