Viking Electronics E-70-WH-EWP Proximity Card Reader Entry Phone with EWP

Overview

The Viking Electronics E-70-WH-EWP is a satin white, telephone-line-powered entry phone with a built-in 125KHz 26-bit Wiegand proximity card reader — a practical single-unit solution for commercial doors, gates, and controlled-access vestibules where you need both hands-free audio communication and credential-based access control without running a separate power circuit. The E-70-WH-EWP (often searched as E 70 WH EWP) is rated IP66 and ships with an Enhanced Weather Protection (EWP) package that adds foam rubber gaskets, sealed connections, gel-filled butt connectors, and urethane or thermoplastic potted components — making it deployable in exposed outdoor locations without a separate protective housing for most commercial applications.

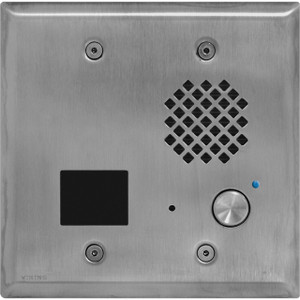

The unit mounts flush into a standard double-gang box or surface-mounts via the optional Viking Electronics VE-5x5 surface enclosure, keeping rough-in straightforward for any integrator already familiar with standard low-voltage door phone work. The 18-gauge 304 stainless steel faceplate and matching 304 stainless push button hold up against physical abuse in high-traffic areas, and the blue LED card-read confirmation gives users immediate visual feedback without guesswork.

Key Features

• 125KHz 26-Bit Wiegand Card Reader, 1.25" to 2.0" Read Range: The short read range is intentional — it enforces deliberate card presentation at controlled entry points rather than allowing tailgating-prone long-range reads. Compatible with Viking PRx-C, PRx-C-ISO, PRx-FOB, and AWID credential formats, so it integrates cleanly with most legacy and mid-market access control panels running standard Wiegand inputs without additional protocol converters.
• Telephone Line Powered (18V DC minimum, 20mA loop current): No separate power supply, no PoE switch port consumed, no 12V/24V power run to the door — the unit draws everything it needs from the telephone line. This matters on retrofit jobs where getting a new power circuit to a remote gate or exterior door is the most expensive part of the project.
• IP66 Ingress Protection with EWP Enhancement: IP66 means the unit survives high-pressure water jets and complete dust ingress protection — adequate for rain-exposed exterior doors and covered entryways. The EWP option goes further with potted internals and gel-sealed connections, reducing moisture-intrusion risk in particularly harsh or coastal environments. If you need full immersion (IP67/68), this is not the correct product; for splash and rain, IP66 + EWP is more than sufficient for most commercial installs.
• Operating Range -34°C to 65°C (-29°F to 149°F) at Up to 100% Humidity: The temperature floor covers most North American outdoor installations including cold-climate warehouses and parking structure entry points. The full-humidity rating means condensation-prone environments — loading docks, refrigerated facility entries — are within spec without additional enclosure upgrades.
• 62dB Speaker @ 1m, 25V AC RMS Ring Voltage Minimum: The 62dB maximum speaker output is adequate for covered entryways and interior-adjacent doors; it is not a high-volume outdoor speaker and should not be specified for noisy loading dock exteriors or areas with significant ambient noise. Ring voltage minimum of 25V AC RMS is standard for analog POTS and PBX systems, confirming compatibility with conventional telephone infrastructure.
• 300ms CPC Auto Disconnect: The call processing circuit (CPC) disconnect signal — 300ms minimum — automatically terminates the call when the called party hangs up. This prevents the door phone from staying live if the inside party forgets to explicitly end the call, a practical consideration in busy reception and lobby deployments where staff handle multiple incoming calls.
• 18-Gauge 304 Stainless Steel Construction, 4.875" x 4.938" x 0.17" Faceplate: Stainless construction resists surface corrosion in outdoor and high-humidity environments. The thin 0.17" faceplate depth keeps the unit nearly flush with the wall surface — important for ADA clearance compliance at pedestrian entries.
• Blue LED Card-Read Confirmation: Immediate visual feedback on successful card reads reduces support calls from users unsure whether their credential was accepted. In low-light or nighttime conditions, the blue LED also serves as a subtle locator indicator for the card reader zone.
• REN 0.8A: The Ringer Equivalence Number of 0.8A means this unit consumes less than one full REN of the telephone line's ring capacity, leaving ample headroom to share a line with other devices if your architecture requires it — relevant in legacy PBX integrations where line capacity is a managed resource.

Integration & Compatibility

The E-70-WH-EWP connects to any analog telephone system — POTS, PBX with FXS ports, or a VoIP gateway with an analog line output — using standard telephone wiring. The Wiegand output (26-bit) interfaces directly with any access control panel accepting standard Wiegand input, covering the vast majority of commercial panels from DSC, Lenel, Software House, Honeywell, and others. For deployments requiring video at the same entry point, Viking's E-65-WH-EWP video entry phone covers the same form factor with color camera integration. If your project calls for SIP/VoIP-native door phones, Viking's E-10/20/30/32-IP series handles that use case; the E-70-WH-EWP is strictly analog and should be specified accordingly.

The EWP board protection means the internal electronics are sealed at the factory — field modifications to the protected circuitry are not recommended and could compromise the weather rating. Wiring connections should be made using the provided gel-filled butt connectors or equivalent waterproof splice connectors to maintain the IP66 + EWP integrity at every penetration point. Review your access control wiring guidelines for proper shielded cable runs on the Wiegand lines to avoid read errors at longer cable distances.

Frequently Asked Questions

Q: What card formats does the E-70-WH-EWP proximity reader support?

A: The built-in 125KHz reader supports 26-bit Wiegand format and is compatible with Viking PRx-C, PRx-C-ISO, PRx-FOB, and AWID credential types. It outputs standard 26-bit Wiegand data to your access control panel.

Q: Does the E-70-WH-EWP require a separate power supply?

A: No. The unit is telephone line powered, requiring a minimum of 18V DC and 20mA loop current from the connected telephone line. No separate power supply or PoE port is needed.

Q: What is the IP rating and how does the EWP option improve weather resistance?

A: The E-70-WH-EWP carries an IP66 rating, providing protection against high-pressure water jets and complete dust ingress. The Enhanced Weather Protection (EWP) package adds foam rubber gaskets, sealed connections, gel-filled butt connectors, and urethane or thermoplastic potted components for additional protection in harsh or coastal outdoor environments.

Q: What mounting options are available for the E-70-WH-EWP?

A: The unit mounts flush in a standard double-gang electrical box, or it can be surface-mounted using the optional Viking VE-5x5 surface enclosure. The faceplate measures 4.875" x 4.938" x 0.17".

Q: What is the operating temperature range for the E-70-WH-EWP?

A: The unit is rated for -34°C to 65°C (-29°F to 149°F) at up to 100% relative humidity, covering most North American outdoor and indoor commercial applications including cold-climate deployments.

Q: Will the E-70-WH-EWP work with my existing analog PBX?

A: Yes, provided the analog line supplies a minimum of 18V DC and 20mA loop current with a ring voltage of at least 25V AC RMS. The unit has a REN of 0.8A, well within the capacity of standard analog telephone lines and FXS ports.

Karl Wilson

The E-70-WH-EWP is one of the few commercial door phones that genuinely earns its place on an analog telephone system without compromise — the telephone-line-powered architecture eliminates the power-run problem that kills budget on remote gate and exterior door jobs, and the IP66 + EWP combination handles conditions that would send a standard surface-mount phone back for warranty inside a year. I specify this unit specifically when the customer already has a working analog PBX with spare FXS capacity and a Wiegand-input access panel, because the integration is clean and the rough-in cost is minimal.

Technical Highlights:

• 26-Bit Wiegand Output, 125KHz: Standard protocol, 1.25" to 2.0" read range — connects directly to virtually any commercial access panel without a protocol bridge. Short read range is a deliberate anti-tailgating design, not a limitation.
• Telephone Line Powered at 18V DC / 20mA: No PoE port, no power supply, no conduit run for 12V — the line does all the work. On a job with 6–8 entry points, this is real labor savings per door.
• IP66 + EWP with -34°C to 65°C Operating Range: The potted internals and gel-sealed connections mean moisture intrusion at the wire entry points is handled at the factory, not in the field. Cold-climate installs down to -34°C are within spec without a heater kit.

Deployment Considerations:

• Maintain waterproof splice integrity at every wire entry — the EWP rating only holds if field connections match the factory sealing standard. Use gel-filled butt connectors on all telephone and Wiegand wiring terminations at the unit.
• The 62dB speaker maximum at 1 meter is not suitable for high-ambient-noise exterior locations like active loading docks or outdoor areas near HVAC equipment — verify ambient noise levels before specifying this unit for those environments.

Best fit for corporate campus perimeter pedestrian gates, refrigerated warehouse entries, and multi-tenant building vestibules where analog telephone infrastructure is already in place and the access panel accepts 26-bit Wiegand — this unit delivers that integration without adding infrastructure overhead.
