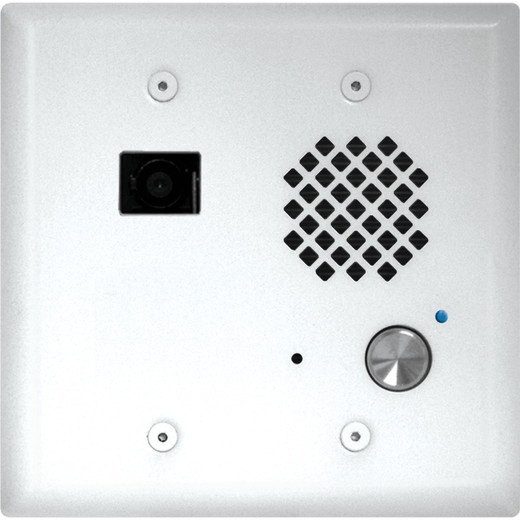

Viking E-65-WH-EWP IP66 Video Entry Phone Flush Mount White EWP

Viking Electronics E-65-WH-EWP Satin White Video Entry Phone with EWP

Overview

The Viking Electronics E-65-WH-EWP is a telephone line-powered, color video entry phone engineered for demanding access points where weather, vandalism, and reliable two-way communication are non-negotiable concerns. Housed in a satin white faceplate measuring 4.875" x 4.938", the unit flush-mounts into a standard double gang box or surface-mounts with a VE-5x5 enclosure — giving installers the flexibility to fit virtually any entry application without special rough-in work. The E-65-WH-EWP (often searched as E 65 WH EWP) ships with Viking's Enhanced Weather Protection treatment, an internally sealed push button and thick protective coating that earns it a verified IP66 ingress protection rating.

Key Features

• IP66 Ingress Protection: Rated IP66 means this unit withstands powerful direct water jets and complete dust exclusion. For covered vestibules, canopied entrances, and outdoor lobbies where rain blows sideways, IP66 keeps the electronics intact without needing a separate protective enclosure or additional weatherhood.
• Wide Operating Temperature Range (-30°F to 150°F): Few entry phones survive an unheated Minnesota entryway in January and a Phoenix metal building in August. The E-65-WH-EWP's -30°F floor handles deep-freeze environments while the 150°F ceiling means surface temperatures on sun-baked south-facing walls won't cook the internals — a real differentiator versus units rated only to 130°F or 140°F.
• Color Video Camera with Wide Viewing Angle: The built-in color camera provides a wide field of view at the door, giving the answering station enough visual context to make a credentialing decision before releasing the strike. Color — not monochrome — matters in lobbies where you need to distinguish uniform or clothing details in response to an incident.
• Telephone Line Powered: No separate power supply, no PoE switch port, no 24V transformer run. The unit draws power directly from the telephone line, which simplifies rough-in significantly: one pair of conductors handles both the call and the power. For remote gate posts or outbuildings where pulling a second cable is expensive, this is the spec that changes the economics of the install.
• Blue LED Indicator: The blue LED provides a clear visual call-active or unit-active cue in bright lobbies and under direct sunlight where a dim status light would be invisible. It also confirms the unit is live without requiring a test call — useful during commissioning and troubleshooting.
• Auto Disconnect: The auto-disconnect function terminates the call automatically after the interaction completes, preventing the line from staying open if the remote station doesn't hang up. On multi-door installations sharing a single line, a stuck-open line would block all other entries — auto disconnect keeps the system available.
• Flush Mount (Double Gang) or Surface Mount (VE-5x5): The faceplate is designed to cover a standard double gang rough opening for a clean, recessed look in drywall or hollow-metal door frames. Where flush isn't possible — concrete block, precast, or retrofit without core drilling — the VE-5x5 surface enclosure provides a finished mount on any flat surface.
• Gel-Filled Butt Connectors (2x included): The two gel-filled butt connectors in the box are the correct termination method for exterior-rated runs where moisture wicking into a standard crimp splice would cause intermittent failures over time. Having them included means the installer doesn't need to source specialty connectors separately to make the installation weather-tight end-to-end.
• Compact Phone Module (2.84" x 1.8" x 1.65"): The internal phone module's small footprint fits cleanly in the double gang cavity without crowding wiring or requiring back-box extensions — relevant when retrofit installations have limited wall depth.
• 2-Year Limited Manufacturer Warranty: Viking's 2-year limited warranty reflects the commercial-grade build standard of the E-65 series, above the 1-year coverage typical of residential entry products.

Integration & Compatibility

The E-65-WH-EWP integrates with telephone-based door entry systems and connects to any analog POTS line, PBX extension, or VoIP ATA configured to present a POTS interface. The color video output connects to a compatible monitor or video door station receiver — verify that your answering equipment accepts the video signal format before specifying. The unit pairs with Viking's own answering equipment and door controllers for door-release functionality. For surface mounting, the VE-5x5 enclosure (sold separately) must be ordered alongside to complete the install; the double gang flush mount requires only a standard electrical box that is not included.

Frequently Asked Questions

Q: What is the ingress protection rating of the E-65-WH-EWP?

A: The E-65-WH-EWP carries an IP66 ingress protection rating, meaning it is fully protected against dust ingress and against powerful water jets from any direction. This is achieved through Viking's Enhanced Weather Protection (EWP) design, which uses internally sealed push button switches and a thick protective coating.

Q: Does the E-65-WH-EWP require a separate power supply?

A: No. The E-65-WH-EWP is telephone line powered, drawing its operating power directly from the connected telephone line. No external transformer or PoE injector is needed, which reduces installation complexity and cost — particularly on remote or retrofit entry points.

Q: What mounting options are available for the E-65-WH-EWP?

A: The E-65-WH-EWP supports two mounting configurations: flush mount in a standard double gang electrical box (the faceplate measures 4.875" x 4.938" and covers the opening cleanly), or surface mount using Viking's VE-5x5 enclosure for concrete block, exterior walls, or retrofit locations where flush rough-in isn't practical. The VE-5x5 is sold separately.

Q: What is the operating temperature range of the E-65-WH-EWP?

A: The unit operates from -30°F to 150°F (-34°C to 65.5°C). This range covers unheated exterior entry points in cold climates as well as sun-exposed surfaces in hot environments, making it suitable for four-season deployment without supplemental heating or cooling.

Q: What is the warranty on the E-65-WH-EWP?

A: Viking Electronics provides a 2-year limited manufacturer warranty on the E-65-WH-EWP.

Q: What connections are used to wire the E-65-WH-EWP?

A: The E-65-WH-EWP terminates using two gel-filled butt connectors, which are included in the box. Gel-filled connectors are moisture-resistant and are the correct choice for outdoor or wet-location wiring terminations, preventing corrosion-related failures at the splice point.

What's in the Box

• 1x Viking E-65-WH-EWP video entry phone unit
• 2x Gel-filled butt connectors

Eden Phillips

The spec I always point integrators to first on the E-65-WH-EWP is the -30°F to 150°F operating range paired with a genuine IP66 rating — that combination is rarer than it sounds in telephone entry hardware. Most competitive units either handle the cold or handle the heat; few handle a 180-degree swing without a heater accessory or shade requirement.

Technical Highlights:

• IP66 via EWP Construction: Viking's Enhanced Weather Protection uses internally sealed push buttons — not just a gasket on the faceplate — so the ingress protection survives the repeated mechanical fatigue of thousands of button presses in a wet environment where a surface-only seal would eventually fail.
• Telephone Line Powered: One pair of conductors carries both audio and power. On a parking structure or remote gate post where pulling a second circuit is a significant labor cost, this reduces the home-run cabling requirement to a single twisted pair from the telco demarcation or PBX port.
• Auto Disconnect: On multi-door systems sharing a line, auto disconnect is not a convenience feature — it's a reliability requirement. Without it, a missed hang-up at the answering station blocks the entry line until someone notices, which in a staffed lobby at shift change is a real operational failure mode.

Deployment Considerations:

• The flush mount option requires a standard double gang box already in place; in concrete or CMU retrofits without existing rough-in, plan to order the VE-5x5 surface enclosure separately and account for it in the bill of materials before quoting.
• The color video output format needs to be confirmed compatible with your answering station or video monitor before installation — the evidence does not specify the video signal standard, so verify with Viking's documentation or pre-sales support to avoid a mismatch at commissioning.

This unit is well-matched for covered exterior vestibules in commercial office buildings and industrial facilities in northern climates — locations where a standard entry phone fails within two heating seasons and where running supplemental power to the entry point is a project cost that doesn't pencil out.
