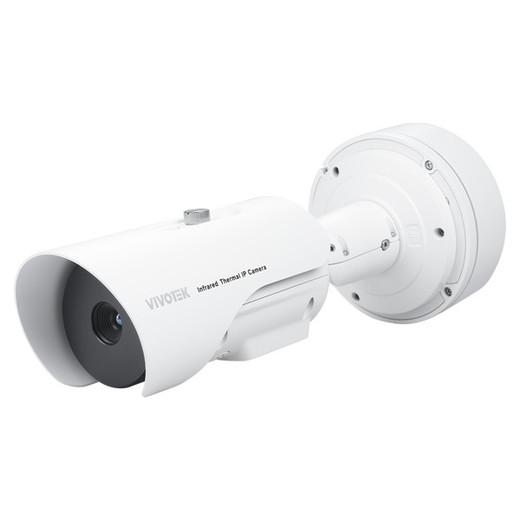

Vivotek TB9332-E(9MM) S-Series Thermal IP Bullet Camera
Overview
The TB9332-E(9MM) is a fixed thermal imaging bullet designed for perimeter security, critical infrastructure monitoring, and intrusion detection where conventional cameras fail. A 640x512 thermal sensor paired with a 9mm lens delivers temperature-differentiated object detection in complete darkness, fog, smoke, and heavy precipitation—conditions where visible-light cameras are blind. Deploy this camera on poles, walls, or building infrastructure where 24/7 non-contact thermal monitoring eliminates false alarms from lighting changes and provides reliable personnel and vehicle detection across expanded surveillance areas. PoE (802.3af) power delivery removes the need for dedicated electrical runs, significantly lowering installation cost on large perimeter deployments.
Thermal Performance and Detection
Thermal sensitivity enables reliable detection of human-sized objects and vehicles in zero-illumination environments without the performance degradation that plagues infrared-lit cameras in fog or precipitation. The fixed 9mm optic establishes consistent horizontal coverage across large surveillance areas—no zoom drift, no maintenance of moving parts. Deep Learning-based threat detection runs edge-side on the camera, flagging intrusion events and firing alerts without backend processing load. VMD (Video Motion Detection) and specialized Fire Detection algorithms support rapid response to perimeter compromise or thermal anomalies in industrial or utility settings.
Video Encoding and Network Integration
H.265 and H.264 compression codecs optimize bandwidth utilization on large-scale deployments where thermal video would otherwise consume significant WAN capacity. The integrated 16GB storage and 1GB memory buffer continuous recording and analytics processing onboard, reducing dependence on centralized NVR infrastructure. Two-way audio integration enables real-time deterrence messaging directly from the camera. Full ONVIF compliance ensures seamless integration with third-party VMS platforms and security ecosystems—no vendor lock-in.
Environmental Durability
IP66 rating provides protection against dust ingress and high-pressure water jets, essential for exposed perimeter and maritime environments. The 5.18kg compact bullet form factor simplifies rapid deployment across multiple locations without heavy mounting infrastructure. Operating temperature range and sealed thermal optics ensure consistent performance in harsh outdoor conditions.
Compatibility
The TB9332-E(9MM) functions as a standalone thermal surveillance camera. Install alongside conventional IP cameras in your existing ONVIF-compatible VMS (Axis Camera Station, Milestone Fusion, or equivalent) to layer thermal intrusion detection with visible evidence capture. No special thermal software licensing required—standard ONVIF integration. Pairs well with PoE-enabled network switches and IP video recorders that support multicamera mixed-codec deployments.
