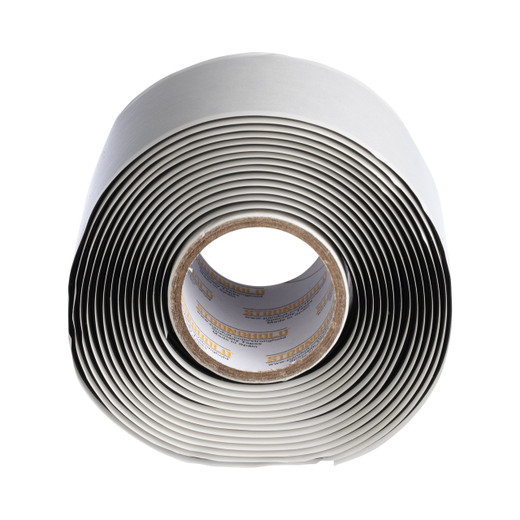

Panduit ST2228-200-10BK StrongHold Rubber Mastic Tape
High-voltage cable splices and terminations in outdoor security installations face constant exposure to moisture, UV radiation, and temperature cycling that can degrade conventional electrical tape over time. Panduit's StrongHold ST2228-200-10BK delivers professional-grade protection for splices and terminations rated up to 2kV through a self-bonding EPR/mastic construction that creates a permanent, moisture-proof seal without adhesive residue. This 2" × 10' black rubber mastic tape is engineered for both indoor and outdoor environments where cable integrity is non-negotiable — perimeter detection systems, gate operator power feeds, PTZ camera high-voltage supplies, and access control strike wiring.
Key Features
- Self-bonding ethylene propylene rubber (EPR) backing fused to electrical-grade mastic for permanent, conformable seals
- 2kV voltage rating for insulating and waterproofing medium-voltage splices and terminations
- UV-resistant formulation maintains integrity under continuous outdoor exposure without cracking or delamination
- Superior moisture, corrosion, and chemical resistance protects connections in harsh environments
- 2" width × 10' length provides coverage for large cable bundles or multiple wrapping layers
- RoHS compliant, REACH compliant, and lead-free for environmentally responsible installations
- 1 roll per package, 30 rolls per case for efficient project stocking
The ST2228-200-10BK's dual-layer construction separates it from commodity electrical tapes. The EPR backing provides mechanical strength, flexibility, and UV stability, while the underlying electrical-grade mastic compound flows into cable irregularities and bonds to itself under hand pressure — no heat gun or torch required. When you stretch the tape during application and overlap each wrap by 50%, the mastic layers fuse into a homogeneous, void-free insulation sleeve that won't unravel or peel back over time. This self-amalgamating property is critical for splices in conduit or direct-burial applications where you can't revisit the connection after backfill. The 2kV voltage rating makes it appropriate for 120VAC and 240VAC circuits commonly found in commercial security infrastructure — electromagnetic lock power supplies, electric strike feeders, and gate operator control panels — where a single insulation failure could create a shock hazard or take down an entire perimeter zone.
In real-world deployment, integrators use this tape to weatherproof inline splices on outdoor PTZ camera runs where the cable route exceeds pre-terminated lengths, particularly on parking structure columns or perimeter poles where moisture intrusion is guaranteed without proper sealing. The 2" width is ideal for wrapping 3-conductor 14 AWG or 12 AWG power cable bundles in a single pass, or for building up multiple layers on smaller conductors to achieve IP67-equivalent environmental protection inside a junction box that lacks a gasket seal. Unlike PVC electrical tape that stiffens in cold weather and softens in heat, EPR maintains its elasticity from -40°F to 221°F, so your morning splice in a Minnesota parking lot or your afternoon termination on a Phoenix rooftop will both hold integrity through seasonal temperature swings. The black color provides a professional finish and won't discolor or fade under UV exposure, keeping your installation looking intentional rather than field-expedient when the customer inspects outdoor J-boxes during system acceptance.
StrongHold ST2228-200-10BK ships one 2" × 10' roll per package with 30 rolls per case, allowing you to stock a truck or project trailer with enough material to handle a multi-building campus installation without reordering mid-job. RoHS and REACH compliance ensures the product meets environmental restrictions for installations in California, the EU, and other jurisdictions with hazardous substance regulations, while the lead-free formulation eliminates the legacy health risks associated with older mastic tape compounds. For commercial security integrators and low-voltage contractors who stake their reputation on connections that survive commissioning and still test solid at the five-year service call, Panduit's StrongHold line represents the same build-quality standard as their wire management and structured cabling products — engineered for the professional who doesn't come back to fix shortcuts.
