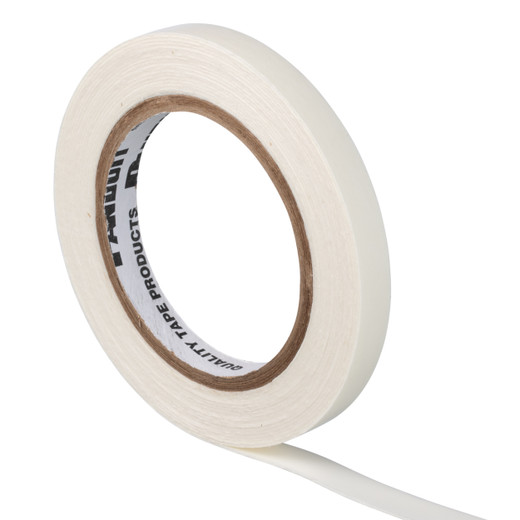

Panduit P32W2R1-75-72 Pan-Way Rubber Foam Adhesive Tape for Wiring Duct
Overview
The Panduit P32W2R1-75-72 is a white rubber foam adhesive tape engineered specifically for sealing and cushioning applications within Pan-Way® surface raceway systems. Measuring 1/32" (roughly 0.8mm) thick by 3/4" (19mm) wide and spooled at 72 yards (65.53 meters) per roll, this tape is the correct consumable when you need a compressible, adhesive-backed seal between raceway covers and channel bodies — preventing dust infiltration, reducing cable chatter, and maintaining a finished appearance in commercial and light-industrial wiring installations. If you're ordering for a Panduit Pan-Way surface raceway installation and need the matching foam seal, this is it.
Key Features
- Rubber Foam Construction: Rubber foam compresses uniformly under raceway cover pressure without cold-flowing or hardening over time. Unlike open-cell foam tapes that absorb moisture and degrade, rubber foam maintains its sealing profile in climate-controlled commercial environments — keeping the channel interior clean and reducing the need to re-seal after seasonal temperature swings.
- 1/32" Thickness Profile: At 1/32" thick, this tape fills the tolerance gap between Pan-Way channel and cover without creating a visible ridge or preventing the cover from snapping flush. Too thin and you get rattling; too thick and covers bow. This dimension is matched to the Pan-Way raceway geometry — don't substitute a generic foam tape of different thickness and expect the same result.
- 3/4" (19mm) Width: The 19mm width covers the mating flange of standard single-channel Pan-Way raceway without overhang that would pinch wires or show past the cover edge. It runs the full contact width in a single strip — no trimming required on standard raceway profiles.
- 72-Yard (65.53m) Roll Length: A single roll covers 72 yards of raceway — enough for a substantial portion of a floor or building run without mid-job splicing. On longer commercial cable management runs, the extended length minimizes lap joints, which are the most common failure points for adhesive tape seals.
- White Color Match: White matches standard Pan-Way raceway color, keeping the installation visually consistent. For finished office or healthcare environments where exposed raceway is part of the aesthetic, color-matched tape matters — a gray or brown tape at the seam line draws the eye.
- Single-Roll Packaging, 7-Unit Carton: The P32W2R1-75-72 ships as individual rolls (Package Qty: 1) with a carton quantity of 7. Order by the roll for small jobs or the carton for larger projects — the carton pack makes sense for wire management contractors running multiple buildings or floors.
Integration & Compatibility
The P32W2R1-75-72 is part of the Pan-Way® surface raceway accessories line, designed for use with Panduit single-channel raceway systems. It is categorized under wire routing, management, and protection — the same family as Pan-Way duct, covers, and fittings. If you are specifying a full Pan-Way installation for a structured cabling or low-voltage wiring project, this tape belongs on the bill of materials alongside the raceway and cover components. It is not a general-purpose duct tape and should not be used as a cable bundling or splicing tape — the adhesive and thickness are optimized for the raceway seating surface, not tensile wrap applications. For broader Panduit raceway and cable management options, see the full Panduit catalog.
What's in the Box
- 1x Panduit P32W2R1-75-72 white rubber foam adhesive tape roll (1/32" x 3/4" x 72 yards)
Frequently Asked Questions
Q: What is the P32W2R1-75-72 used for?
A: The P32W2R1-75-72 is a rubber foam adhesive tape designed for use with Panduit Pan-Way® surface raceway systems. It seals and cushions the interface between the raceway channel and cover to prevent dust entry, reduce cable vibration noise, and maintain a clean finish on the installation.
Q: What are the exact dimensions of the P32W2R1-75-72 tape?
A: The tape is 1/32" (approximately 0.8mm) thick, 3/4" (19mm) wide, and 72 yards (65.53 meters) long per roll.
Q: Is the P32W2R1-75-72 compatible with all Pan-Way raceway sizes?
A: Per Panduit's product data, the P32W2R1-75-72 is specified for Pan-Way single-channel raceway. Confirm the channel flange width matches the 3/4" (19mm) tape width for your specific raceway model before ordering.
Q: How many rolls come in a carton of P32W2R1-75-72?
A: The carton quantity is 7 rolls. Each roll is sold individually (Package Qty: 1), so you can order a single roll or a full carton of 7 depending on project scale.
Q: Can the P32W2R1-75-72 be used outdoors?
A: The evidence identifies this tape for wiring duct applications in Pan-Way raceway systems. No outdoor or UV-resistance rating is documented in the available product data — consult the Panduit Pan-Way installation guide for environmental suitability before deploying in exposed outdoor locations.
Q: What adhesive type does the P32W2R1-75-72 use?
A: The tape uses a rubber adhesive backing, consistent with its rubber foam base material. Rubber adhesive provides good initial tack on smooth raceway surfaces and maintains bond integrity in stable indoor temperature ranges.
The P32W2R1-75-72 is one of those line items that gets overlooked until the first site walk-through after installation — and then you notice the rattling covers or the dust line forming at the channel seam. At 1/32" thick and 19mm wide, this rubber foam tape is dimensionally matched to Pan-Way single-channel raceway, which means it actually seats flush rather than forcing the cover off-plane the way an oversized generic tape will.
Technical Highlights:
- 72-Yard Roll Length: At 65.53 meters per roll, a single P32W2R1-75-72 covers a meaningful run — reducing lap joints that are the most common adhesion failure points in long raceway installations.
- Rubber Foam vs. Foam Alternatives: Rubber foam resists compression set better than open-cell polyurethane foam in the same thickness range. For a raceway that gets opened and reseated repeatedly during MACs (moves, adds, changes), rubber foam re-compresses more consistently than urethane alternatives.
- Carton Pack of 7: The 7-roll carton format is the right buy for contractors managing multi-room or multi-floor Pan-Way installations — enough tape for a substantial project scope without over-ordering by the case.
Deployment Considerations:
- Apply to a clean, dry raceway surface — residual drywall dust or joint compound on the channel flange will defeat the rubber adhesive bond. A quick wipe with IPA before taping pays off on long runs.
- The 3/4" width is sized for standard single-channel Pan-Way. If you're working with wider multi-channel raceway profiles, confirm the flange dimension before committing to a carton — you may need a different width variant.
This tape belongs on the BOM for any finished commercial space where Pan-Way raceway is the specified cable management system — particularly healthcare, education, and open-office environments where cover rattle and dust ingress at the channel seam are legitimate punch-list items.
