Panduit T038X000FJT Continuous Thermal Transfer Label Tape

Overview

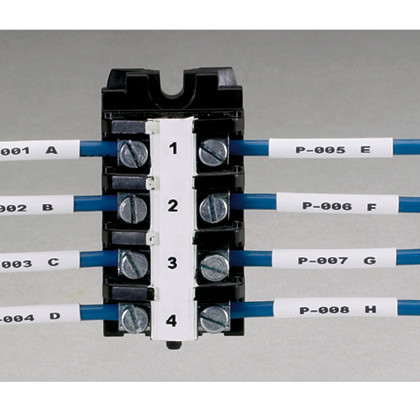

The Panduit T038X000FJT is a 0.38-inch-wide continuous thermal transfer polyolefin tape designed for terminal block marking and general component identification in industrial and commercial electrical panels. At 100 feet (30.48 m) per roll on a 3-inch core, this tape gives you sustained print runs without frequent media changes — practical on production floors where labeling downtime is actual downtime. It prints exclusively via thermal transfer, meaning a resin ribbon is required; it is engineered for use with Panduit TDP desktop printers. White base stock provides maximum contrast for black printed text and barcodes, which matters when a technician is reading labels inside a crowded enclosure under suboptimal lighting.

Compliance with UL969, cUL C22.2 No. 198.6, and RoHS makes the T038X000FJT appropriate for North American and international installations where label legibility and material durability are code-relevant — not just a convenience requirement.

Key Features

• Polyolefin substrate, 0.38" × 100 ft (9.7 mm × 30.48 m): Polyolefin resists many common solvents, oils, and mild abrasion better than plain paper or vinyl at this width. On terminal blocks and wire markers, that durability matters — labels that smear or delaminate after installation create compliance and maintenance headaches. The 100-foot continuous roll means a single roll can yield hundreds of terminal block labels at typical cut lengths before you need to reload.
• Thermal Transfer (TT) print method — resin ribbon required: Thermal transfer produces a fused, durable image that holds up to handling, cleaning agents, and temperature cycling in ways direct thermal printing cannot. Specify a compatible resin ribbon (Panduit recommends resin for polyolefin substrates) or print quality and durability will degrade significantly. This is not optional on polyolefin — it is the correct combination for long-life labels.
• 3-inch core: The 3-inch core is the standard industrial desktop printer format. It seats correctly in Panduit TDP series printers without an adapter, keeping media loading straightforward during bulk labeling runs.
• White color: White base stock maximizes printed text and barcode contrast. In panel labeling applications where you may be reading small-font wire IDs or scanning barcodes with a handheld reader, high contrast is directly functional — not cosmetic.
• UL969 and cUL C22.2 compliant: UL969 covers marking and labeling systems used in electrical equipment; cUL C22.2 extends this to Canadian installations. If your project specification or AHJ requires labeled components to use listed labeling materials, the T038X000FJT satisfies that requirement out of the box. This eliminates a common RFI/submittal cycle.
• RoHS compliant: RoHS compliance means the tape meets EU hazardous substance restrictions, relevant for equipment exported to European markets or for facilities with environmental procurement policies.
• Package quantity: 1 roll: Sold as a single roll, so you can match procurement to actual job volume rather than buying multipacks. For low-volume applications or initial stock, single-roll ordering keeps inventory lean.

Integration & Compatibility

The T038X000FJT is designed for use with Panduit TDP series desktop printers. It is not a universal thermal transfer tape — verify your printer model against Panduit's media compatibility matrix before ordering. The tape is a continuous (non-die-cut) format, meaning your printer software handles cut-length programming; the tape does not come pre-cut to a fixed label size. This gives you flexibility to define custom lengths for different terminal block heights or wire gauge callouts within a single roll, but requires that your label software supports continuous tape formatting.

For signs, labels, and identification products, confirm that your TDP printer firmware and software version support 0.38-inch media width — some TDP configurations have minimum width requirements. Panduit's Panduit labeling solutions are designed as matched media-printer systems; mixing third-party ribbons or printers is possible but voids the validated performance spec and may produce inconsistent adhesion or image quality. Browse related label markers and printer supplies to round out your panel labeling kit, or pair with a compatible desktop printer label system for a complete Panduit-matched media solution.

What's in the Box

• 1x Panduit T038X000FJT continuous thermal transfer polyolefin tape roll, 0.38" × 100 ft, white, 3-inch core

Frequently Asked Questions

Q: What printer is the T038X000FJT compatible with?

A: The T038X000FJT is designed for use with Panduit TDP series desktop printers. Confirm your specific TDP model supports 0.38-inch-wide continuous tape media before ordering.

Q: Does the T038X000FJT require a ribbon to print?

A: Yes. This is a thermal transfer (TT) tape, not direct thermal. A resin ribbon is required — Panduit recommends a resin ribbon for polyolefin substrates to achieve durable, long-life labels.

Q: Is the T038X000FJT suitable for terminal block labeling?

A: Yes. The product is explicitly described for terminal block marking and general identification applications. The 0.38-inch width is well-suited to standard terminal block heights.

Q: What compliance standards does the T038X000FJT meet?

A: The T038X000FJT meets UL969, cUL C22.2, and RoHS. These cover marking and labeling systems for electrical equipment in US and Canadian installations, plus EU hazardous substance restrictions.

Q: How many labels can I produce per roll?

A: The roll is 100 feet (30.48 m) of continuous tape. The number of labels depends on the cut length you program in your label software. There are no pre-defined cuts — label length is fully configurable.

Q: Is the T038X000FJT sold as a single roll or in a multipack?

A: It is sold as a single roll (package quantity: 1), giving you the flexibility to order exactly the quantity your project requires.

Eden Phillips

The T038X000FJT is one of those consumables that looks trivial on a BOM until the panel labeling spec fails an inspection because the installer sourced non-listed tape. The UL969 and cUL C22.2 compliance on this roll is the actual reason to specify it — not just the 0.38-inch width or the 100-foot length, though both are practical for terminal block runs.

Technical Highlights:

• Polyolefin at 0.38" (9.7 mm): Polyolefin handles the chemical and thermal exposure inside electrical enclosures better than paper; at 9.7 mm wide, it covers the face of most standard terminal blocks cleanly without overhang or trimming.
• 100-foot continuous roll on a 3" core: 30.48 meters per roll is enough for a substantial panel labeling job without mid-run reloads. The 3-inch core seats directly in Panduit TDP printers — no adapter, no fiddling.
• UL969 / cUL C22.2 / RoHS: These are the three certifications that show up in electrical panel submittals and AHJ checklists. Having all three on one SKU avoids substitution requests during closeout.

Deployment Considerations:

• Pair only with a resin ribbon — polyolefin requires resin transfer chemistry for the image to bond properly. A wax or wax-resin ribbon on this substrate will produce labels that abrade off under normal panel maintenance cycles.
• This tape is continuous format only; your TDP printer software must support variable cut-length programming. If your print template is fixed to a die-cut label format, you will need to reconfigure it for continuous media or the output will be incorrectly sized.

For electrical contractors and panel builders running Panduit TDP printers on commercial or industrial jobs where UL-listed labeling is a contract requirement, the T038X000FJT is the correct single-roll procurement for terminal block identification — particularly on projects that require a material submittal before installation.
