Vertiv Rpdu Basic Upgradeable 60A/63A 200-240V 13.8KW Vertical (24) Combination C - VP1U60A1

Vertiv VP1U60A1 0U Vertical Rack PDU 60A 240V

Overview

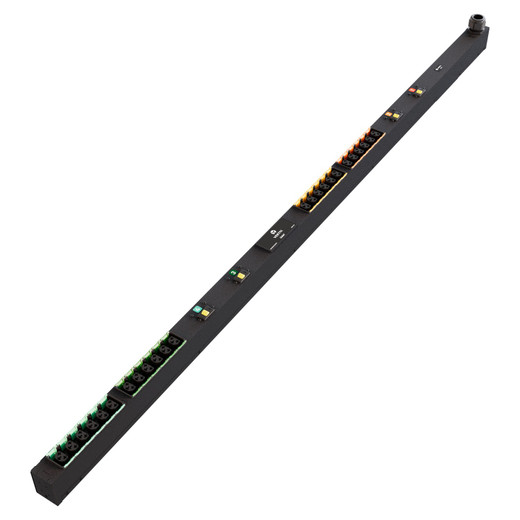

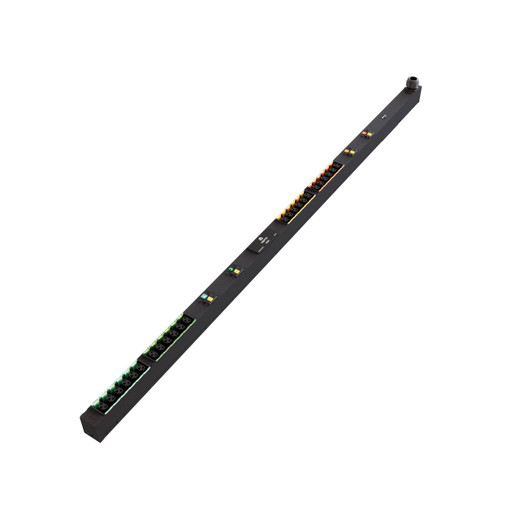

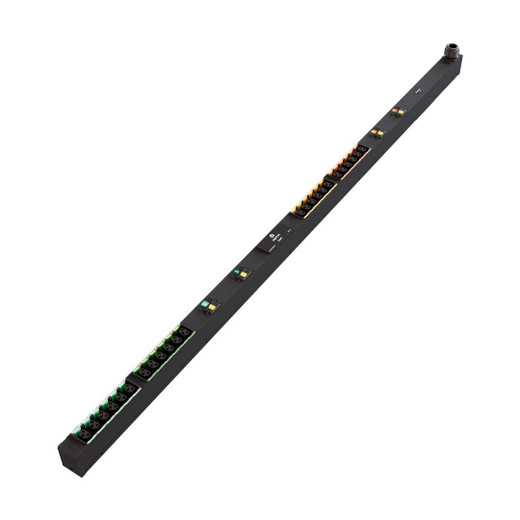

The VP1U60A1 is a 0U vertical rack-mount power distribution unit from Vertiv's PowerIT Basic series, delivering 60/63A at 240V with a rated capacity of 14.4kW across 24 combination C13/C19 outlets. Its 1P+N+E (IP44) inlet plug and zero-U vertical form factor let it mount flush in the side channels of standard equipment cabinets, freeing all rack units for active gear — the right fit for dense server and networking deployments where horizontal PDU space is a real constraint. The model number VP1U60A1 reflects the 60A input rating and single-phase 240V design, sized for high-density cabinets that need more than a standard 30A feed without stepping up to three-phase infrastructure.

Compatibility

Designed for standard 0U vertical mounting positions in most two-post and four-post open-frame racks and enclosed cabinets that accept side-channel vertical PDU rails. The combination C13/C19 outlets accept both standard C14 and C20 power cords, making it compatible with servers, switches, storage arrays, and KVM hardware from virtually any manufacturer. The PowerIT Basic series supports a daisy-chain topology of up to 50 units on a single IP address — useful in co-location and multi-cabinet deployments where IP port conservation matters. The built-in hot-swappable monitoring bay accepts Vertiv's network or serial monitoring devices for remote visibility without powering down connected loads. High-retention P-Lock compatible outlets reduce accidental cord pull-out in high-vibration or cable-dense environments. UL and CE dual-listing covers both US and EU/international cabinet deployments.

Installation Notes

Mount vertically in the cabinet side channel using the integrated 0U bracket; the 2-inch width and 2.6-inch depth profile fits standard side-rail slots without modification. Requires a dedicated 60A/63A 240V single-phase circuit with a 1P+N+E (IP44) compatible inlet connector — confirm your facility's breaker and whip rating before install. Unit weighs 19 lbs; factor that into side-rail load ratings when fully populating a cabinet. Warranty runs 3 years standard, extending to 5 years when registered within 120 days of purchase — register immediately after commissioning.
