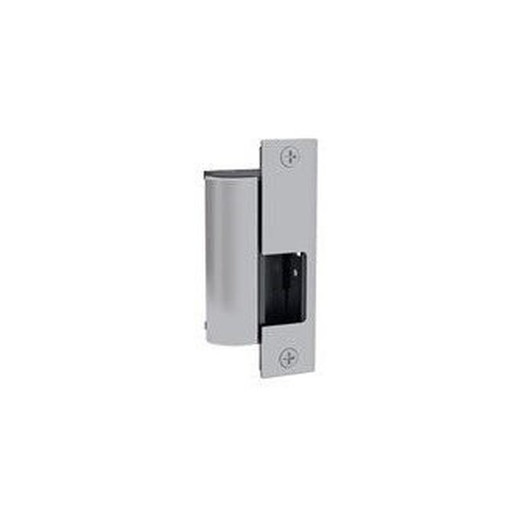

HES RP-22 Radius Faceplate
Overview
The HES RP-22 radius faceplate is a purpose-built accessory for modern access control installations that use radius-profile door frames. Unlike flat-frame faceplates, the RP-22 accommodates the curved geometry common in contemporary commercial buildings—offices, hospitals, hospitality properties, and educational institutions where curved entrances are standard. This compatibility matters because a faceplate that doesn't match your frame profile creates gaps, looks unfinished, and can compromise the weathertight seal around the electric strike. The RP-22 solves that problem directly.
Key Features
- Radius Frame Compatibility: Engineered specifically for curved door frame profiles. Flat-frame faceplates won't seat properly on radius frames, so this geometry match is critical for a clean installation appearance and proper mounting alignment.
- Professional Finish: Maintains visual consistency with modern building design. An ill-fitting faceplate stands out; the RP-22 blends into the entry system without drawing attention.
- Durable Construction: Built to withstand high-traffic environments where doors open and close dozens or hundreds of times per day. Wear resistance matters in commercial facilities where maintenance budgets are tight and replacement cycles need to be long.
- Standard Mounting Hardware: Installs with conventional fasteners compatible with access control installation practices. No special tools or adapters required, which reduces labor time on site.
- Full Electric Strike Compatibility: Works across the HES electric strike system line. Verify your specific strike model during procurement to confirm the RP-22 is the correct faceplate variant for your hardware.
- Seamless Integration: Designed to pair with contemporary entrance hardware. The streamlined profile doesn't protrude excessively and integrates cleanly with door closer arms, panic hardware, and reader mounting brackets.
Integration & Compatibility
The RP-22 is a mechanical accessory—it has no electrical function and requires no power or network connectivity. Its role is purely to provide a finished, structural interface between the electric strike and the curved door frame. Verify strike model compatibility before ordering. Installation requires standard hand tools and basic carpentry skills; no specialized training is needed beyond standard access control installation practices familiar to any security integrator.
Applications
Deploy the RP-22 in any commercial or institutional building with radius-profile door frames: corporate office lobbies, university dormitory and classroom buildings, hospital and healthcare facility entrances, government buildings, hotels and hospitality properties, and retail mixed-use facilities. Anywhere curved doors are the architectural standard, the RP-22 ensures a code-compliant, finished appearance.
When to Choose a Different Model
If your door frames are flat (not radius), the RP-22 is not the right choice—you'll need a flat-frame faceplate variant. If you require a faceplate with integrated electronic functions (strike status monitoring, tamper detection), consult the broader HES catalog for models with built-in sensors. For retrofit installations on older frames with non-standard geometries, contact a HES distributor to confirm geometry and compatibility before purchase.
Frequently Asked Questions
Q: Will the RP-22 fit my existing electric strike?
A: The RP-22 is compatible with HES electric strike systems. You'll need to verify your specific strike model number against HES documentation to confirm the RP-22 is the correct faceplate variant for your hardware. Mixing incompatible faceplate and strike models can result in poor fit and potential warranty voidance.
Q: Can I install the RP-22 on a flat (non-radius) door frame?
A: No. The RP-22 is engineered specifically for radius-profile frames. Attempting to install it on a flat frame will result in gaps and misalignment. You'll need a flat-frame faceplate variant instead.
Q: Does the RP-22 require any wiring or power?
A: No. The RP-22 is a passive mechanical accessory. It provides no electrical functions and requires no power, wiring, or network connectivity. All electrical functionality comes from the electric strike itself.
Q: What tools and skills are needed to install the RP-22?
A: Installation requires standard hand tools (screwdriver, drill, measuring tape) and basic carpentry familiarity. Any technician trained in electric strike installation can install the RP-22. Most installations take 30 minutes or less, depending on site conditions.
Q: Is the RP-22 suitable for outdoor use?
A: The RP-22 is durable and can tolerate covered outdoor installations (awnings, overhangs). For full weather exposure, consult HES documentation for any environmental limitations and verify that your electric strike is rated for the intended installation location.
Q: Can I use the RP-22 with non-HES electric strikes?
A: The RP-22 is designed for HES electric strike systems only. Cross-brand compatibility is not supported. If you're unsure of your strike manufacturer, verify before purchasing.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The HES RP-22 is one of those components that integrates directly into the physical installation—it's not flashy, but getting it wrong creates visible gaps and installation rework. I've seen integrators spec flat-frame faceplates on radius-profile doors only to discover on-site that the geometry doesn't match, then rush to source the correct RP-22. Radius frames are standard in modern commercial construction, so the RP-22 is a necessary accessory if you're deploying HES electric strikes in those environments.
Technical Highlights:
- Radius-Profile Geometry: The RP-22 is cut specifically for curved door frames, not flat frames. This isn't a minor detail—installing a flat-frame faceplate on a radius frame leaves gaps around the strike housing, compromises weathersealing, and looks unfinished. Geometry match is non-negotiable.
- Durable Construction for High-Traffic Environments: Commercial entryways see hundreds of door cycles per day. The RP-22 is built to withstand repeated mechanical stress and wear without degradation. That durability translates directly to a longer service life and fewer replacements over a 5-10 year facility lifecycle.
- Standard Mounting Hardware Compatibility: The RP-22 installs with conventional fasteners and requires no adapters or special brackets. That compatibility reduces installation labor and means any security technician familiar with HES electric strikes can deploy it without learning a new mounting procedure.
Deployment Considerations:
- Before ordering, verify your specific HES electric strike model and confirm that the RP-22 is the correct faceplate variant. Mixing incompatible faceplate and strike models can result in poor fit and voided warranties.
- The RP-22 is purely mechanical—it handles no electrical functions. All power and control logic lives in the strike itself. This simplicity is an asset for reliability but means you're entirely dependent on the strike's quality and wiring.
- Installation on non-standard or retrofit frames with unusual geometry may require field modification. Inspect the frame profile before committing to the RP-22; if the curve doesn't match HES documentation, contact the manufacturer for guidance.
Positioning: Deploy the RP-22 in any new or retrofit access control installation using HES electric strikes on radius-profile door frames. If your site has flat frames, specify the flat-frame faceplate instead. For mixed-frame sites (some radius, some flat), confirm the correct faceplate variant for each door during design, then order accordingly. Getting the geometry right the first time eliminates on-site surprises and rework.
