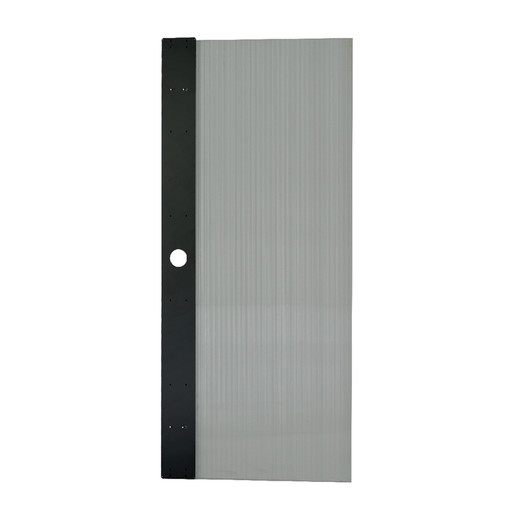

Panduit CUSRRFS06W1 Net-Contain 600mm Roof Panel

The Panduit CUSRRFS06W1 is a fixed roof panel engineered for hot or cold aisle containment deployments in enterprise datacenters and colocation facilities. Part of the Net-Contain universal single-row containment system, this 600mm-width panel closes the top of the aisle to prevent conditioned and return air mixing — a primary driver of cooling inefficiency and elevated PUE. Steel-reinforced polycarbonate construction delivers structural rigidity for overhead cable-tray loads while maintaining tool-free access for moves, adds, and changes. White powder-coat finish integrates with modern datacenter aesthetics and reflects overhead lighting to reduce shadow zones in the aisle.

Key Features

600mm (23.6") width matches standard rack spacing for single-row containment aisles

Steel frame with polycarbonate infill — rigid enough for overhead cable tray support, light enough for single-installer handling

27mm (1.1") low-profile height minimizes ceiling clearance demand in retrofits

966mm (38") depth spans typical 42U rack depths plus rear door clearance

Tool-free drop-in installation on Net-Contain vertical rails — no fasteners, no drilled holes

White powder-coat finish coordinates with rack infrastructure and enhances aisle visibility

RoHS-compliant materials meet procurement standards for LEED and federal datacenter projects

Hot aisle containment systems redirect server exhaust into a closed plenum that feeds directly back to CRAC return ducts, preventing hot exhaust from recirculating into cold aisles and forcing cooling units to over-deliver chilled air to compensate. The CUSRRFS06W1 roof panel seals the top plane of the containment corridor — the largest surface area for thermal leakage in most deployments. Steel perimeter framing provides attachment points for adjacent panels and maintains flatness under the weight of overhead cable trays, while the polycarbonate center section allows visual inspection of the contained space without breaking the seal. The 27mm height keeps the assembly compact enough to fit under existing sprinkler heads and cable runs in retrofit installations, and the 966mm depth accommodates 42U racks with rear doors and provides overhang for cable egress at the top of the cabinet.

Installation follows Panduit's tool-free Net-Contain architecture: vertical containment rails mount to the top corners of adjacent racks, and roof panels drop into the rail channels with a friction fit — no screws, no clips, no specialized tools. Panels lift out in seconds for emergency access or when reconfiguring the row layout, then reinstall without reordering parts or waiting for maintenance windows. The white finish reflects overhead LED fixtures to reduce shadowed zones in the aisle, improving visibility for technicians working at the top of racks and simplifying visual inspections of cable labels and status LEDs. Steel construction provides load-bearing capacity for basket tray and ladder rack that runs above the containment system, consolidating power and data distribution overhead rather than consuming floor space with vertical cable managers.

The CUSRRFS06W1 is RoHS-compliant and integrates into Panduit's broader Net-Contain ecosystem, including vertical side panels, sliding doors, and pass-through grommets for multi-cabinet rows. Designed for datacenter managers and mechanical engineers executing thermal optimization projects in enterprise server rooms, colocation cages, and modular datacenter pods where controlled airflow and measurable PUE reduction justify the containment investment.
