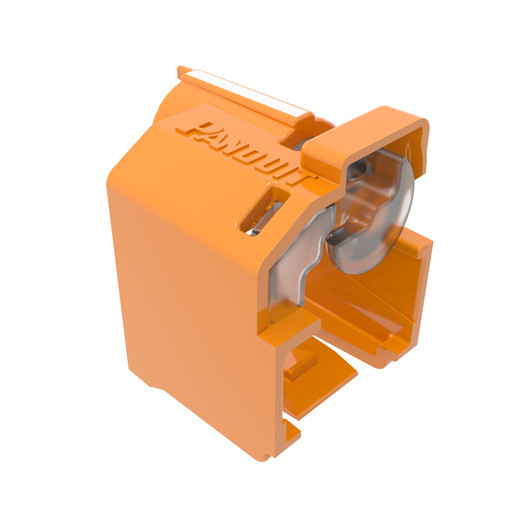

Panduit PSL-DCPLRE-OR Recessed Orange Patch Cord Lock-In Device

Overview

The Panduit PSL-DCPLRE-OR is a recessed, polycarbonate lock-in device engineered to physically secure patch cord connections at the port level — preventing unauthorized disconnection or accidental removal in structured cabling environments where port security and cable integrity are non-negotiable. Each package ships with 10 orange devices and one removal tool, giving you a ready-to-deploy, color-coded security layer for copper patch panels and keystones without any additional hardware.

Where standard lock-in devices sit flush, the PSL-DCPLRE-OR's recessed design is purpose-built for jacks that mount slightly deeper from the panel surface. The extended hood covers and protects the locking mechanism itself — a practical detail that matters in high-density patch fields where technicians are working around adjacent ports constantly. If you're specifying Panduit copper-systems hardware across a structured cabling deployment, this device integrates directly into that ecosystem without adapter hardware or modifications.

Key Features

• Recessed Form Factor (0.74 in H × 0.55 in W): At 18.7 mm tall and 13.9 mm wide, this device fits jacks that are countersunk or set back from the panel face — the scenario where a standard flush lock-in physically won't seat correctly. Specify this variant any time your jack face sits below the panel surface.
• Extended Hood Protection: The hood shields the locking tab from incidental contact during adjacent port work. In active MDF/IDF environments where technicians are frequently moving cables, an unprotected locking tab is a failure point — this design eliminates that exposure.
• Polycarbonate Construction: Polycarbonate delivers impact resistance and dimensional stability well beyond what you'd get from standard ABS. In patch fields that see daily moves, adds, and changes, the material holds its locking geometry over time rather than deforming under repeated insertion cycles.
• Orange Color Coding: Orange provides immediate visual differentiation in multi-tenant, multi-VLAN, or multi-zone patch environments. Assign specific colors per circuit type, security zone, or client — and anyone working the panel can identify restricted ports at a glance without cross-referencing documentation.
• 10 Devices Per Package, Removal Tool Included: Each PSL-DCPLRE-OR package contains 10 lock-in devices and one dedicated removal tool. The tool is required for authorized disconnection — meaning you control who can release a locked port. Budget one removal tool per authorized technician, not one per panel.
• Carton Quantity of 20 Packages: Carton-level ordering (20 packages × 10 devices = 200 devices per carton) scales efficiently for large deployments — enterprise data centers, campus IDF build-outs, or multi-floor structured cabling projects where you're locking down hundreds of ports.
• Copper-Systems Category Integration: The PSL-DCPLRE-OR is positioned within Panduit's physical security devices for copper systems — designed to work alongside Panduit patch panels, jacks, and patch cords rather than as a generic aftermarket add-on. Compatibility is by design, not coincidence.

Integration and Compatibility

The PSL-DCPLRE-OR (often searched as PSL DCPLRE OR) is designed for use with recessed-mount jacks in copper-category structured cabling installations. The recessed profile specifically addresses panels where the jack face does not sit flush with the panel surface — a common condition in certain modular panel configurations and wall-plate assemblies. Pair this device with a compatible Panduit patch panel lineup to maintain a consistent, vendor-matched physical security layer across your copper infrastructure. For flat-mount jack installations, Panduit offers flush-profile lock-in variants — confirm your jack mounting depth before ordering this recessed model.

Color-coded port management integrates with broader cable management strategies — using consistent orange designation across your port security program gives operations teams and auditors a visually verifiable record of which circuits are locked, without requiring port-by-port documentation lookups during inspections.

What's in the Box

• 10× Panduit PSL-DCPLRE-OR recessed lock-in devices (orange)
• 1× removal tool

Frequently Asked Questions

Q: What is the difference between the recessed and standard PSL-DCPLRE-OR lock-in device?

A: The PSL-DCPLRE-OR is specifically designed for jacks that mount slightly deeper from the panel surface. Its recessed form factor and extended hood accommodate this setback where a flush-mount lock-in device would not seat or function correctly. If your jack face is flush with the panel, a standard (non-recessed) lock-in variant is the correct choice.

Q: Does the PSL-DCPLRE-OR come with a removal tool?

A: Yes. Each package of 10 orange lock-in devices includes one removal tool. The tool is required to release a locked port — plan to provide one removal tool per authorized technician if multiple people need independent removal capability.

Q: How many devices are included per package and per carton?

A: Each package contains 10 lock-in devices. Carton quantity is 20 packages, yielding 200 devices per carton — the appropriate ordering unit for large-scale port security deployments.

Q: What material is the PSL-DCPLRE-OR made from?

A: Polycarbonate. This provides better dimensional stability and impact resistance compared to standard ABS, which matters in active patch environments where the device is subject to repeated insertion and removal cycles over time.

Q: Can the PSL-DCPLRE-OR be used for color-coded port zoning?

A: Yes — orange is one of multiple available colors in the Panduit lock-in device family. Assigning specific colors per VLAN, security zone, or tenant makes restricted or designated circuits immediately identifiable on the panel face without requiring port label lookups.

Q: Is the PSL-DCPLRE-OR compatible with all Panduit patch panels?

A: The device is designed for copper-system jacks that mount in a recessed configuration. Compatibility depends on jack mounting depth — verify that your specific panel and jack combination results in a recessed (not flush) jack face before specifying this model. Panduit's flush-mount lock-in variants cover flat-surface jack installations.

James Everett

The PSL-DCPLRE-OR addresses a specific physical gap that generic lock-in devices miss: jacks that sit recessed behind the panel face. At 0.74 inches tall and 0.55 inches wide, this device's geometry is calibrated for that setback condition — and the extended hood over the locking tab is the detail that separates it from devices that technically fit but leave the mechanism exposed to adjacent-port activity.

Technical Highlights:

• Recessed geometry (18.7 mm × 13.9 mm): Sized specifically for jacks that don't sit flush — the only lock-in variant that works correctly in countersunk jack configurations. Using a flush device in a recessed application is a common spec error that results in incomplete locking or device damage.
• Extended hood design: Protects the locking tab from incidental contact during adjacent-port cable work — a real failure mode in high-density patch fields where technicians are pulling and reseating cables in tight quarters constantly.
• 10-pack with removal tool: The included removal tool means authorized disconnection requires the right equipment — not just hands. One tool per package is adequate for panel-level work but insufficient if multiple technicians need independent access. Budget accordingly.

Deployment Considerations:

• Confirm jack mounting depth before ordering: the PSL-DCPLRE-OR is engineered for recessed jacks specifically. If your panel uses flush-mount jacks, you need a different variant — mixing recessed and flush lock-in devices on the same panel causes inconsistent locking depth and visible misalignment.
• The carton quantity is 20 packages (200 devices total) — if you're ordering for a single IDF with fewer than 20 locked ports, a single package of 10 is the correct unit. Don't over-order on removal tools relative to authorized personnel count.

The PSL-DCPLRE-OR is the right call for enterprise IDF and MDF builds using recessed-mount jack panels where physical port security is part of the compliance posture — financial data centers, healthcare facilities, and any environment where unauthorized patch cord removal is a documented risk rather than a theoretical one.
