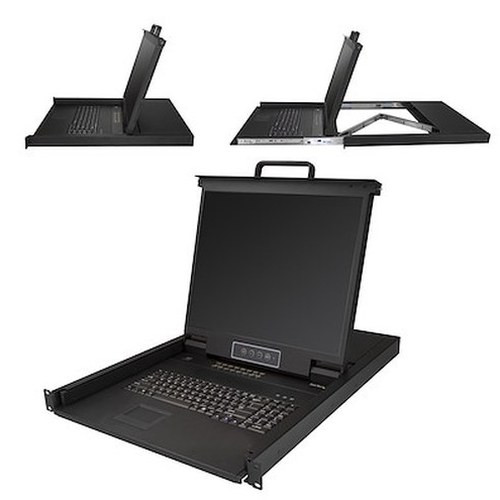

StarTech RKCONS1916K 19-Inch 16-Port 1U Rackmount KVM Console

Overview

The StarTech RKCONS1916K is a 1U rackmount KVM console that consolidates direct keyboard, video, and mouse access to up to 16 servers or computers from a single pull-out drawer in your equipment rack. Built around a 19-inch active matrix TFT LCD panel at 1280x1024 native resolution, it gives data center technicians and IT infrastructure teams a clean, permanent local management interface without dedicating valuable rack space to a standalone monitor and peripheral shelf. At 1.7U of vertical space occupied and a steel chassis weighing 29.8 lb, this unit is engineered for long-term rack permanence rather than occasional cart-based troubleshooting. If your team manages a dense server environment — co-location, edge compute, or a high-density on-prem rack room — the RKCONS1916K is the kind of device that pays off through reduced per-incident access time and eliminated peripheral clutter.

For teams designing or expanding KVM switch infrastructure, this console pairs well with additional rackmount accessories and can be integrated into broader server management workflows. StarTech's broader networking and infrastructure catalog offers complementary components for complete rack buildouts.

Key Features

• 19-Inch Active Matrix TFT LCD at 1280x1024: The native 1280x1024 resolution delivers sharp text rendering for terminal sessions, BIOS screens, and server management interfaces — the contexts where you actually need this console. A pixel pitch of 0.264 x 0.264 mm keeps character edges crisp enough for extended troubleshooting sessions without eye fatigue.
• 1000:1 Contrast Ratio, 250 cd/m² Brightness: A 1000:1 contrast ratio means dark terminal backgrounds register as genuinely dark, not washed gray. The 250 cd/m² brightness level is adequate for typical server room lighting conditions. Neither spec is display-class, but both are appropriate for the environment: you're reading logs and configuring interfaces, not grading photography.
• 16.7 Million Color Depth: Full 24-bit color prevents banding artifacts in OS-level management consoles that use color-coded status interfaces, making it easier to visually parse warning vs. error states at a glance.
• 16 USB/VGA KVM Ports: Supports up to 16 directly connected servers via USB and VGA interfaces — no separate KVM switch required for smaller deployments. USB interface compatibility covers the broad majority of contemporary server hardware without needing legacy PS/2 adapters.
• 1U Form Factor (1.7 in height), 29.8 lb Steel Chassis: One rack unit of vertical space is the most cost-effective footprint you can have for a 16-port console. The all-steel construction means the chassis won't flex or creak during repeated open/close cycles, which matters in high-activity data centers.
• Variable Mounting Depth (23.8 in – 35.0 in): The mounting depth range of 23.8 to 35.0 inches accommodates the full spectrum of standard two-post and four-post racks. Before ordering, measure your usable rail-to-rail depth — at 25.3 inches product length, you need at least 24 inches of clear depth behind your front rails for proper installation.
• 23W Power Consumption, 100–240V AC Input: At 23W operating draw on a universal input voltage (100–240V AC, 1.5A), this unit adds negligible load to your rack PDU and works on any mains voltage globally — relevant for multi-site deployments or international co-location facilities.
• 50,000-Hour MTBF: A 50,000-hour MTBF rating translates to roughly 5.7 years of continuous operation. For a device that lives in a rack and gets opened daily by on-call engineers, this is a meaningful durability baseline — not a marketing figure to ignore.
• 0°C to 40°C Operating Temperature: Rated for operation in environments up to 40°C (104°F) with a 10–80% RH humidity range. This covers standard air-conditioned data center conditions comfortably. If your edge or remote site runs warmer than 40°C, factor that in — this unit is not rated for uncontrolled thermal environments.

Integration and Compatibility

The RKCONS1916K connects to servers via USB and VGA — the two most universally supported interfaces across x86 server hardware from the past 15+ years. USB covers keyboard and mouse without needing legacy PS/2 adapters, while VGA ensures compatibility with virtually any server's integrated graphics output. This makes it a practical fit for mixed-generation server environments where some hardware predates DisplayPort or HDMI server console outputs. If your target servers use DVI or HDMI outputs exclusively, plan for appropriate adapters. For environments running more than 16 nodes, this console can be paired with a compatible KVM switch to extend access beyond the onboard 16-port limit.

Frequently Asked Questions

Q: What is the maximum number of servers the RKCONS1916K can manage directly?

A: The RKCONS1916K supports up to 16 servers or computers directly via its onboard USB and VGA KVM ports, with no additional KVM switch required for deployments at or below that count.

Q: What rack depth is required to install the RKCONS1916K?

A: The unit supports a mounting depth range of 23.8 to 35.0 inches. The product itself is 25.3 inches long, so you need a minimum of approximately 24 inches of usable rack depth behind your front mounting rails for proper installation.

Q: Does the RKCONS1916K work with USB-connected servers, or does it require PS/2?

A: The RKCONS1916K uses USB as its PC interface alongside VGA for video — PS/2 adapters are not required. This covers the vast majority of current and recent-generation server hardware.

Q: What is the warranty on the RKCONS1916K?

A: The RKCONS1916K carries a 2-year manufacturer warranty.

Q: What is the native resolution of the RKCONS1916K display?

A: The integrated 19-inch active matrix TFT LCD panel has a native resolution of 1280x1024. Running the display at its native resolution ensures the sharpest possible text rendering for terminal and BIOS-level work.

Q: Is the RKCONS1916K suitable for use in edge or remote sites without climate control?

A: The unit is rated for operating temperatures of 0°C to 40°C (32°F to 104°F) at 10–80% relative humidity. It is not rated for uncontrolled thermal environments exceeding 40°C, so climate-controlled conditions are required for reliable long-term operation.

James Everett

The spec I keep coming back to on the RKCONS1916K is that mounting depth range: 23.8 to 35.0 inches. Most integrators spec a KVM console for port count and display size, then discover on install day that their four-post rack's usable depth doesn't accommodate the drawer travel. At 25.3 inches of product length, this unit fits comfortably in most mid-depth and full-depth racks, but it is not a shallow-rack product — verify your rail-to-rail depth before the unit ships, not after.

Technical Highlights:

• 1280x1024 Native Resolution: At 0.264 x 0.264 mm pixel pitch, text rendering in terminal sessions and BIOS screens is clean and readable — this matters more than most buyers realize when an engineer is 45 minutes into a kernel panic trace at 2 AM.
• 50,000-Hour MTBF: Roughly 5.7 years of continuous operation at rated conditions. For a console that gets pulled open and closed by rotating on-call staff, that mechanical and electronic durability baseline is the right number to anchor your replacement cycle planning around.
• 23W at 100–240V AC: The universal input means you can deploy the same unit across facilities in different regions without a transformer or separate power supply. The 23W draw adds essentially nothing to your rack PDU load calculation.

Deployment Considerations:

• The 0°C to 40°C operating range is standard for a climate-controlled server room. If you're deploying in an edge closet or IDF that isn't air-conditioned, confirm the ambient temperature stays below 40°C — this unit has no extended temperature rating.
• VGA-only video interface is the practical limitation here. Servers that no longer expose a VGA output natively will require an active adapter — budget for that if your rack includes newer hardware that has moved to DisplayPort or HDMI only.

The RKCONS1916K is a straightforward fit for a dense on-prem server room or co-location cage where you need permanent local console access to 16 nodes in 1U of space, and where the server hardware inventory is primarily USB/VGA-era or later. It is not the right call for blade chassis environments with proprietary KVM modules or for racks with less than 24 inches of usable front-to-back depth.
