APC by Schneider Electric Rack PDU Switched 2U 32A 230V (16) C13 - AP7922B

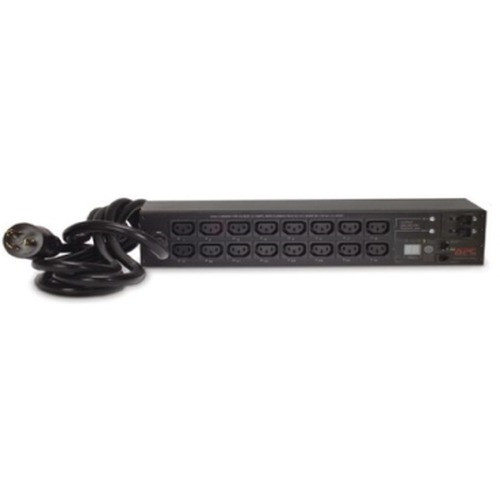

APC by Schneider Electric AP7922B Switched Rack PDU 2U 32A 230V 16-Outlet

Overview

The AP7922B is a 2U switched rack power distribution unit rated for 32A at 230V, delivering individually switchable power to 16 IEC 60320 C13 outlets — the right fit for European and international data center racks where you need remote outlet-level control without dispatching a technician. The front-panel LED display with current meter gives you real-time load visibility; overload protection prevents cascade failure when loads spike. Remote management runs over Ethernet 10/100 via SNMP, Telnet, HTTP, and SSH, so outlet cycling, load monitoring, and access control all happen from your NMS or browser without touching the physical unit. The IEC 60309 32A input connector and ±10% voltage margin (207–253V) handle the supply variation common in international facilities. Operating range is 0°C to 45°C (23°F to 113°F) at 5–95% non-condensing humidity, covering typical enclosed rack environments. Compliant with EN55022, EN55024, CISPR 22, VDE, AS/NZS, and EAC for deployments requiring regional certification.

Compatibility

Designed for standard 19-inch 2U rack bays. The 16 C13 outlets accept IEC 60320 C14 device cords — compatible with the majority of 1U and 2U rack servers, network switches, NVRs, and IP-based security appliances that ship with C14 power leads. The IEC 60309 32A input requires a matching 32A single-phase circuit at the rack; verify your facility's branch circuit rating before installation. For deployments pairing with network video recorders or high-density PoE switch stacks, confirm aggregate draw stays under the 32A circuit limit — a 75–80% derating (24–25A) is standard practice for continuous loads. SNMP integration works with common NMS platforms and APC's own APC by Schneider Electric EcoStruxure IT for unified power management across a rack power distribution infrastructure.

Installation Notes

Mount vertically in a 2U rack slot; the 17.5-inch depth fits most standard cabinets. Connect the included 12 ft power cable to the facility's IEC 60309 32A inlet. The RJ-45 management port connects to your LAN for SNMP/SSH access; the RJ-11 serial port supports local console access during initial configuration. Frequency acceptance is 47–63 Hz, covering both 50 Hz and 60 Hz supplies. Unit weight is 14.4 lbs — factor this into rail and shelf load calculations for fully populated cabinets.

What's in the Box

• 1x AP7922B Switched Rack PDU
• 1x Power cable, 12 ft
