APC by Schneider Electric Rack PDU Basic Zerou 12.5KW 208V (30) C13 (6) C19;10 Cord - AP7598

APC by Schneider Electric AP7598 Zero-U Rack PDU 12.5kW 208V 36-Outlet

Overview

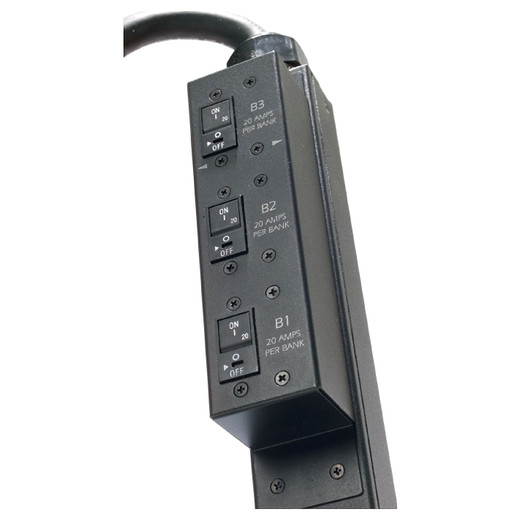

The AP7598 is a basic zero-rack-unit (Zero-U) power distribution unit delivering 12.5kW at 208V across 36 outlets — 30 C13 and 6 C19 receptacles — on a 10-foot input cord. Zero-U mounting runs the PDU vertically along the interior rail of a standard EIA-310 rack, consuming no horizontal rack space, which matters when every rack unit is committed to active equipment. At 12.5kW / 208V, this PDU is sized for high-density server or networking rows where per-outlet loads vary from 1U switches to dual-PSU servers. The 50/60 Hz frequency rating accommodates both North American and international data center power infrastructure where 208V three-phase or single-phase feeds are common. The C19 receptacle group handles higher-draw devices (up to 16A per IEC standard) — useful for dual-corded servers or high-density storage nodes — while the 30 C13 positions cover 1U/2U switching and compute gear. Basic-tier means no outlet-level switching or metering; this is a rack power distribution unit focused on reliable always-on connectivity, not remote management. If your rack requires per-outlet control or power monitoring, look at APC's Switched or Metered PDU families within the APC by Schneider Electric lineup.

Compatibility

Fits standard 19-inch EIA-310 two-post and four-post open-frame racks and enclosed cabinets with vertical PDU mounting channels — including APC NetShelter SX, SV, and VX series enclosures. The C13/C19 outlet mix is compatible with standard IEC 60320 power cords used on Cisco, HPE, Dell, and Lenovo rack servers, as well as network switches and patch panels drawing from a 208V branch circuit. Confirm your upstream breaker and PDU input plug type before ordering — 208V PDUs are not interchangeable with 120V infrastructure. Pair with a compatible UPS system rated for 208V output to maintain runtime protection across the full 12.5kW load.
